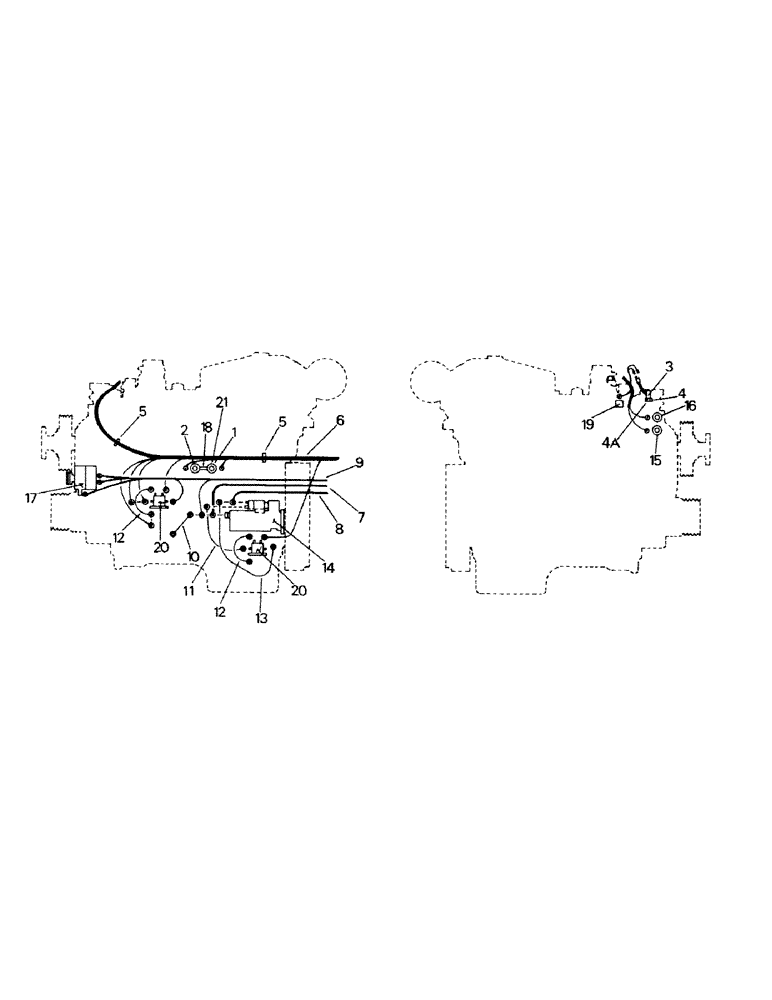

Запчасти Case IH ST470 (02-03) - ENGINE ELECTRICAL, CAT ENGINE (06) - ELECTRICAL

1

1-2805

SWITCH

Oil Pressure Switch

1шт.

2

1-2227T2

SENDER UNIT

Oil Pressure Sender

1шт.

3

1-4222

SENDER UNIT

Tachometer Sender

1шт.

20-1369T1

SENDER UNIT

Tachometer Sender

1шт.

Used only if the 35-1490T91 Tachometer Kit has been installed which included the 20-1511T1 Tachometer (0 to 3500 rpm). Not shown is a short adapter harness P/N 20-1582T1 used between the sender & main wire harness.

1шт.

4

90-3747T1

ADAPTER

Drive Adapter

1шт.

Used only if the 35-1490T91 Tachometer Kit has been installed which included the 20-1511T1 Tachometer (0 to 3500 rpm). Not shown is a short adapter harness P/N 20-1582T1 used between the sender & main wire harness.

1шт.

4a

22-730

DRIVE

Tip (Standard)

1шт.

90-3748T1

PIN

Drive Tip

1шт.

Used only if the 35-1490T91 Tachometer Kit has been installed which included the 20-1511T1 Tachometer (0 to 3500 rpm). Not shown is a short adapter harness P/N 20-1582T1 used between the sender & main wire harness.

1шт.

5

22-632

CLIP

Clamp

4шт.

6

NAP

Engine Wire Harness (S/N 0001 only) (6-Plug Bulk-head style connectors)

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

The early engine wire harness used with the 6-Plug Bulkhead style connectors is not available as a service part. Should this wire harness be needed, Engine Wire Harness P/N 02-1032 should be ordered and modified to fit the 6-Plug style.

1шт.

2-1032

Engine wire Harness (Single Plug Packard style connector w/Electric Shift Lever), Serial Range: 0002-0007

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

20-1199T1

Engine Wire Harness (Single Plug Packard style connector w/slave solenoid (Ref. 20) mounted on Cab), Serial Range: 0007-0011

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

Engine Wire Harness P/N 20-1285T1 used in conjunction with Jumper Wire P/N 20-1359T1 will replace Engine Wire Harness P/N 20-1199T1

1шт.

20-1285T1

Engine Wire Harness (Single Plug Packard style connector w/later style park brake and mounting arrangement), Start Serial: 0011

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

7

1-8188

Battery Cable

1шт.

8

1-8565

Battery Cable

1шт.

9

1-8566

Battery Cable Harness

1шт.

10

47-4591

HARNESS

Wire Assy-Ground

1шт.

11

22-557

ELECTRICAL WIRE

Wire-Starter Solenoid Terminal to Slave Solenoid (not used on later models)

1шт.

12

22-555

Wire-Slave Solenoid to Ground (qty 1 on models w/slave solenoid (Ref. 20) mounted on Cab)

2шт.

13

22-553

ELECTRICAL WIRE

Wire-Starter Solenoid to Slave Slave Solenoid (not used on later models)

1шт.

14

Starter (see Fig. 2-7)

1шт.

15

20-1305T1

TEMPERATURE SENDER

Temp Sender (22-731)

1шт.

Superseded-Old P/N is not used any longer; the new P/N is to be used in ALL cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

16

20-1466T1

SWITCH

Temp Swith (22-681)

1шт.

Superseded-Old P/N is not used any longer; the new P/N is to be used in ALL cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

17

Alternator (see Fig. 2-11)

1шт.

18

31-1353

TEE,1/8"-27 Female x 1/8"-27 Male Run

1шт.

19

Fuel Solenoid (Cat Part)

1шт.

20

20-1608T1

SOLENOID

(06-1496) (1 mounted on Cab on later models) (mounting hardware for glow plug solenoid listed below)

2шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

Ref. 20 and the glow plug mounting parts are not used with DITA engine.

1шт.

1-9475

Mounting Plate

1шт.

19-759

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

Capscrew

1шт.

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Capscrew

2шт.

19-223

WASHER,1/4"

Lock Washer

2шт.

19-76

NUT,1/4"-20, G5

2шт.

21

1-9197

Adapter

1шт.
