Запчасти Case IH ST470 (02-01) - ENGINE ELECTRICAL, CUMMINS ENGINE (06) - ELECTRICAL

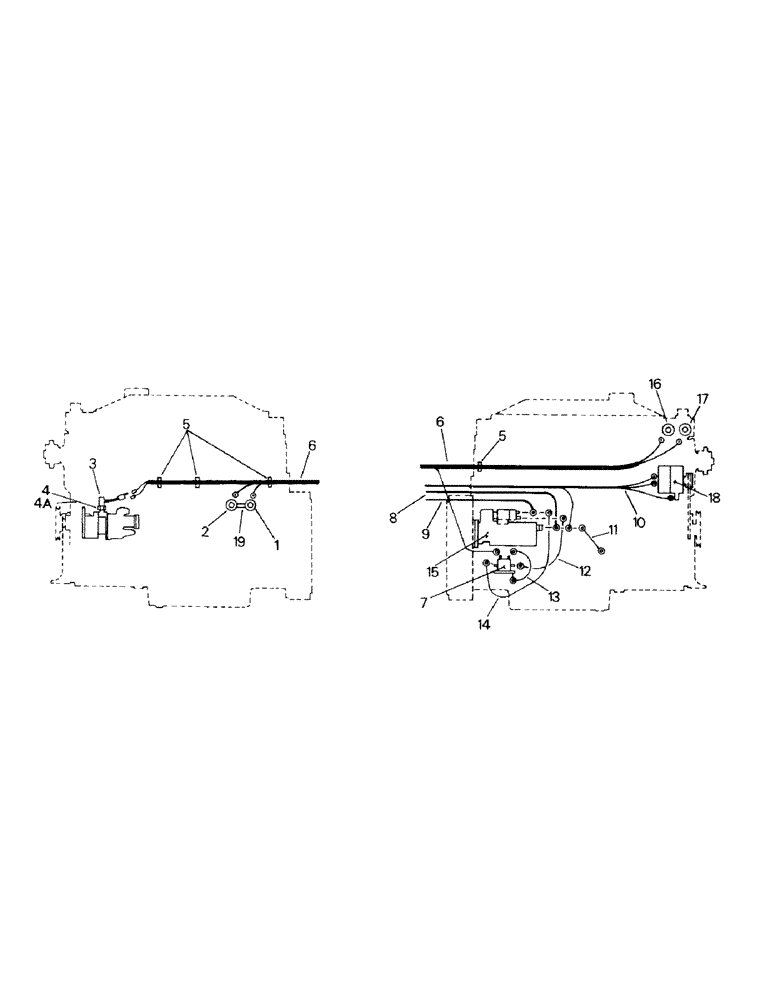

Схема запчастей Case IH ST470 - (02-01) - ENGINE ELECTRICAL, CUMMINS ENGINE (06) - ELECTRICAL
5
9
5
6
13
12
7
19
18
4a
3
11
1
15
14
16
10
2
8
17
4
6

Артикул

Название

Примечание

Количество

1

1-2805

SWITCH

Oil Pressure Switch

1шт.

2

1-2227T2

SENDER UNIT

Oil Pressure Sender

1шт.

3

1-4222

SENDER UNIT

Tach Sender (Standard)

1шт.

20-1369T1

SENDER UNIT

Tach Sender

1шт.

Used only if the 35-1490T91 Tachometer Kit has been installed which included the 20-1511T1 Tachometer (0 to 3500 rpm). Not shown is a short adapter harness P/N 20-1582T1 used between the sender & main wire harness.

1шт.

4

90-3747T1

ADAPTER

Drive Adapter

1шт.

Used only if the 35-1490T91 Tachometer Kit has been installed which included the 20-1511T1 Tachometer (0 to 3500 rpm). Not shown is a short adapter harness P/N 20-1582T1 used between the sender & main wire harness.

1шт.

4a

22-730

DRIVE

Tip (Standard)

1шт.

90-3748T1

PIN

Drive Tip

1шт.

Used only if the 35-1490T91 Tachometer Kit has been installed which included the 20-1511T1 Tachometer (0 to 3500 rpm). Not shown is a short adapter harness P/N 20-1582T1 used between the sender & main wire harness.

1шт.

5

22-632

CLIP

Clamp

4шт.

6

TX-4627

Engine Wire Harness (Left)

1шт.

TX-4662

Engine Wire Harness (Right) (6-Plug Bulkhead style connectors), Serial Range: -0082

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

2-1033

Engine Wire Harness (Single Plug Packard style connector with Electric Shift Lever), Serial Range: 0082-0179

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

20-1200T1

Engine Wire Harness (Single Plug Packard style connector with slave solenoid (Ref. 7) mounted on Cab), Serial Range: 0179-0191

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

Engine Wire Harness P/N 20-1284T1 used in conjunction with Jumper Wire P/N 20-1359T1 will replace Engine Wire Harness P/N 20-1200T1

1шт.

20-1284T1

Engine Wire Harness (Single PLug Packard style connector with later style park brake & mounting arrangement), Start Serial: 0191

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

7

20-1608T1

SOLENOID

(06-1496) (mounted on Cab on later models)

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

8

47-4598

CABLE

Battery Cable

1шт.

9

47-4597

CABLE

Battery Cable

1шт.

10

47-4685

HARNESS

Battery Cable Harness

1шт.

11

47-4591

HARNESS

Wire Assy - Ground

14шт.

12

22-557

ELECTRICAL WIRE

Wire-Starter Solenoid Terminal to Slave Solenoid (not used on models with slave solenoid (Ref. 7) mounted on Cab)

1шт.

13

22-555

Wire-Slave Solenoid to Ground (not used on models with slave solenoid (Ref. 7) mounted on Cab)

1шт.

14

22-553

ELECTRICAL WIRE

Wire-Starter Solenoid to Slave Solenoid (not used on models with slave solenoid (Ref. 7) mounted on Cab)

1шт.

15

Starter (see Page 2-7)

1шт.

16

20-1305T1

TEMPERATURE SENDER

Temp Sender (22-731) (E)

1шт.

17

20-1466T1

SWITCH

Temp Switch (22-681) (E) (Replaces 22-1466T1)

1шт.

18

Alternator (see Page 2-11)

1шт.

19

31-1353

TEE,1/8"-27 Female x 1/8"-27 Male Run

1шт.

Выбрано товаров: 35
