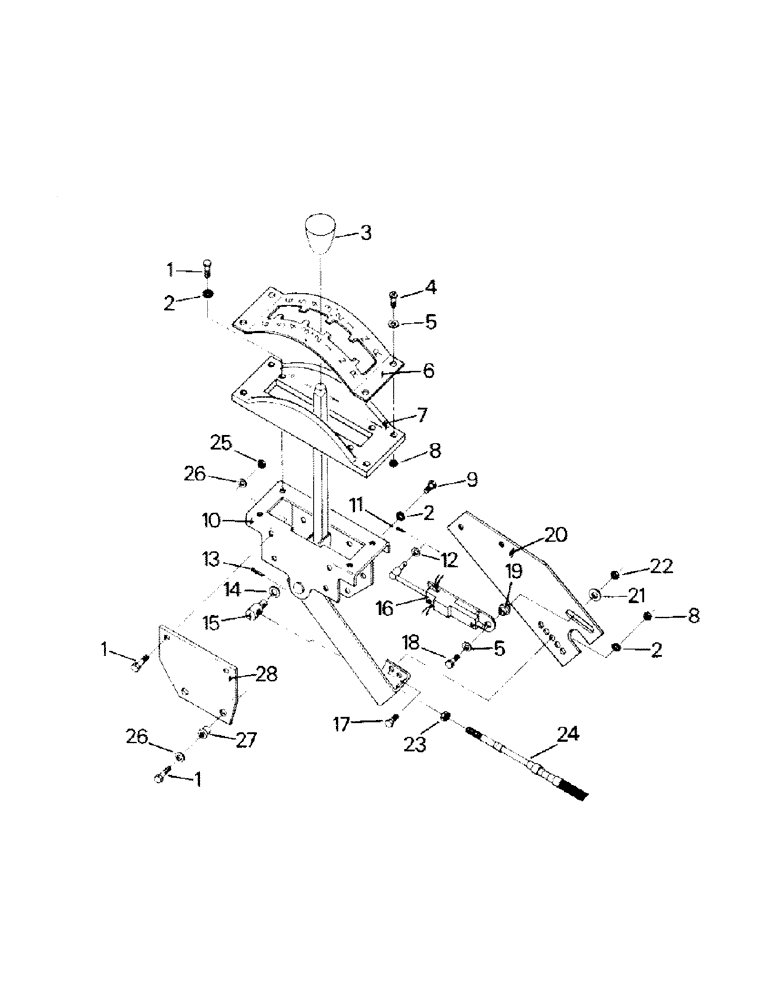

Запчасти Case IH ST470 (01-39) - TRANSMISSION CONTROLS, MANUAL SHIFT LEVER, BSN 129-00002 APPROX, AND 130-00198 (10) - CAB

1-6601

Shifter Control Assy, consists of Ref. 1-28

1шт.

Superseded, Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

1

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Capscrew

8шт.

2

19-467

LOCK WASHER,Ext Tooth, 1/4"

Ext. Tooth Lock Washer

10шт.

3

2-1666

KNOB

1шт.

4

19-1062

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

Machine Screw

4шт.

5

19-1085

WASHER

5шт.

6

2-1665

Gate Plate

1шт.

2-1674

Decal

2шт.

7

2-1673

Spacer

1шт.

8

19-76

NUT,1/4"-20, G5

6шт.

9

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

Capscrew

4шт.

10

2-1664

Control Sub Assy

1шт.

11

19-1100

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

12

2-1670

Washer

1шт.

13

19-558

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter) 3/32" x 1/2"

1шт.

14

2-1671

Washer

1шт.

15

2-1667

Swivel

1шт.

16

2-1669

SWITCH

Neutral Switch

1шт.

17

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Capscrew

2шт.

18

19-344

Capscrew

1шт.

19

2-1672

Spacer

1шт.

20

2-1668

Strap

1шт.

21

19-105

WASHER,1/4", SAE

1шт.

22

19-5565

LOCK NUT,1/4"-28, GB

NUT, LOCK, 1/4"-28, GB

1шт.

23

19-236

JAM NUT,5/16" - 24, Gr 5

1шт.

24

47-4506

CABLE

1шт.

25

280129

NUT,1/4"-20

2шт.

26

19-223

WASHER,1/4"

4шт.

27

19-530

Nutsert

2шт.

28

47-4641

Bracket

1шт.
