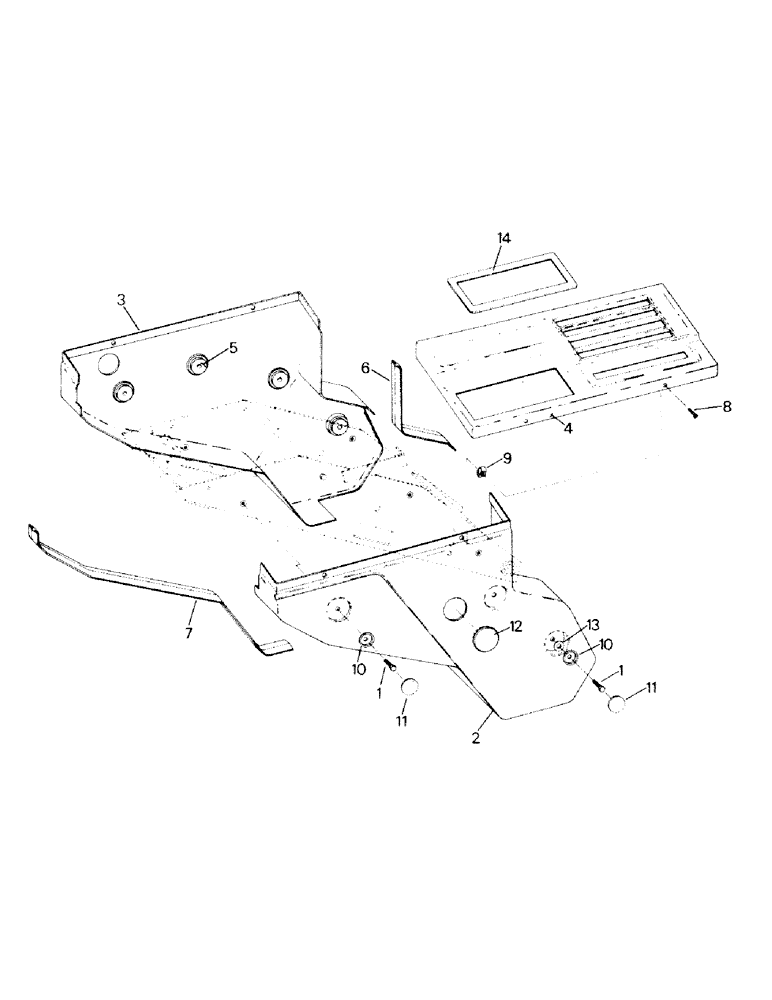

Запчасти Case IH ST470 (01-38) - TILT CONSOLE COVER (10) - CAB

1

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

Capscrew, 5/16 NC x 3/4

7шт.

2

1-5438T1

X

Console Cover, LH (w/Manual Shift)

1шт.

1-3745T1

COVER

Console Cover, LH (w/Elec Shift)

1шт.

3

1-3746T1

COVER

Console Cover, RH (01-3746

1шт.

Superseded, Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

4

47-4229

COVER

Console Cover, Top (w/Manual Shift)

1шт.

1-9987T1

COVER

Console Cover, Top (w/Elec Shift) (01-9987)

1шт.

Superseded, Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

5

1-3503

WASHER

Rubber

7шт.

6

1-3522

MOLDING

Rubber Seal (14")

1шт.

7

1-3521

MOLDING

Rubber Seal (28")

1шт.

8

19-5422

SCREW,Truss Hd, #8 - 32 x 3/4"

Machine Screw, #8 NC x 3/4

4шт.

9

19-5406

RETAINER

Nut, Retainer

4шт.

10

1-3991

WASHER

Caplug

7шт.

11

1-3990

PLUG

Caplug

7шт.

12

19-5432

PLUG

Button Plug

2шт.

13

19-700

WASHER,5/16"

3/8

3шт.

14

47-4355

Cover Plate (not used with Electric Shift (Lever)

1шт.
