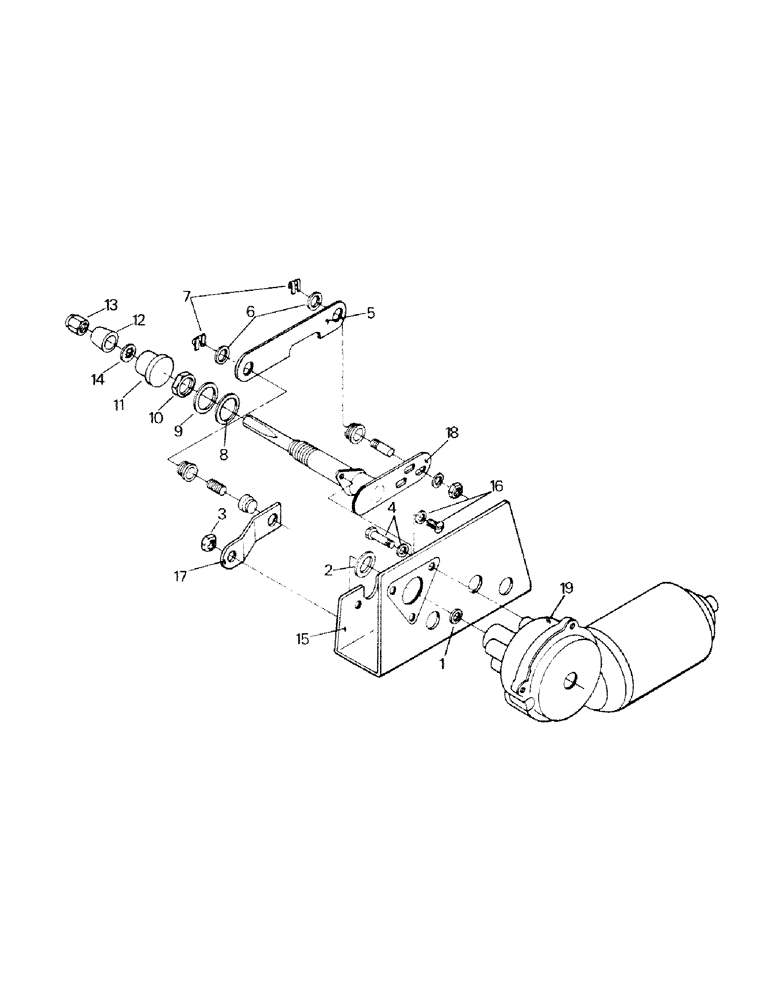

Запчасти Case IH ST470 (01-34) - WIPER DRIVE (10) - CAB

35-1285T91

KIT

Wiper Drive Kit (Front), consists of Ref. 1-20

1шт.

Superseded, Old P/N CAN be used up on all models prior to S/N break only. New P/N MUST be used after S/N break. Order new P/N when old stock is depleted as it will work for all

1шт.

35-1284T91

KIT

Wiper Drive Kit (Rear)

1шт.

Superseded, Old P/N CAN be used up on all models prior to S/N break only. New P/N MUST be used after S/N break. Order new P/N when old stock is depleted as it will work for all

1шт.

20-1204T91

MOTOR

Wiper Drive (Front), consists of Ref. 1-19

1шт.

Superseded, Old P/N CAN be used up on all models prior to S/N break only. New P/N MUST be used after S/N break. Order new P/N when old stock is depleted as it will work for all

1шт.

20-1212T91

MOTOR

Wiper Drive (Rear)

1шт.

Superseded, Old P/N CAN be used up on all models prior to S/N break only. New P/N MUST be used after S/N break. Order new P/N when old stock is depleted as it will work for all

1шт.

1

1-9415

SPACER

3шт.

2

1-2678

WASHER

1шт.

3

1-2680

NUT

Nut

1шт.

4

1-2682

BOLT

Machine Screw

3шт.

5

1-2683

LINK

Connecting Link

1шт.

6

1-2684

WASHER

Spacing Washer

2шт.

7

1-2685

CLIP

Spring Clip

2шт.

8

1-9416

WASHER

1шт.

9

1-9417

WASHER

1шт.

10

1-9418

NUT

1шт.

11

1-9419

CAP

1шт.

12

1-9420

NUT

Knurled Drive

1шт.

13

1-9421

NUT

1шт.

14

1-9422

WASHER

1шт.

15

1-2681

SUPPORT

Bracket

1шт.

16

1-2686

SCREW,no

Machine Screw

2шт.

17

1-2679

ARM

Drive Arm

1шт.

18

1-2668

SHAFT

Pivot Shaft

1шт.

19

NSS

NOT SOLD SEPARAT

Motor Assy

1шт.

20

20-1203T1

HARNESS

Wire Harness (not shown)

1шт.
