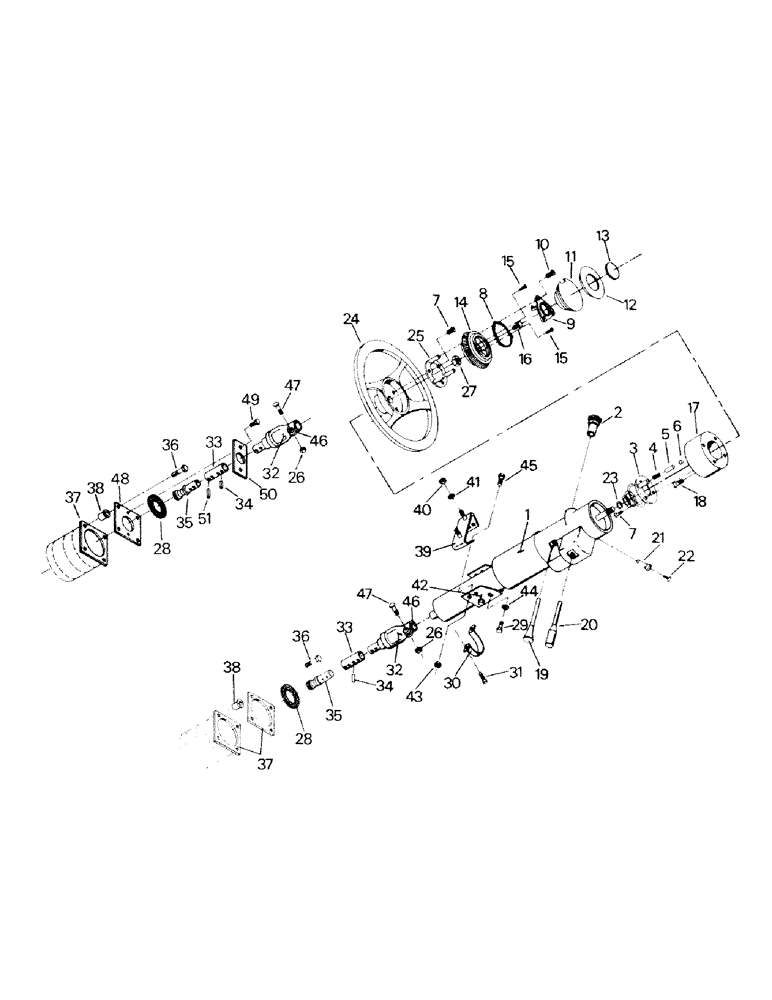

Запчасти Case IH ST450 (01-08) - STEERING CONTROLS AND MOUNTING (10) - CAB

1

Column Assy (see Fig. 1-11)

1шт.

2

22-752

LOCK ASSY

1шт.

1-4464

LOCK

set (contains new keys and locks for Cab Doors & Steering Column)

1шт.

3

18-1556

CONTACT

Assy, Lower

1шт.

4

18-1557

SPRING

1шт.

5

18-1558

EYE

let

1шт.

6

18-1559

INSULATOR

1шт.

7

19-1014

SCREW,#10 - 24 x 3/8"

Machine Screw

6шт.

8

18-1560

SHIM

3шт.

9

18-1561

SPRING

Contact Assy, Upper

1шт.

10

19-946

BOLT (MACHINE)

Machine Screw

3шт.

11

18-1562

RETAINER

1шт.

12

18-1563

CAP

1шт.

13

26-541

SYMBOLS

Emblem

1шт.

14

18-1564

LEVER

Telescope Control

1шт.

15

488-1104

SCREW,Cross Flat Hd, #10-32 x 1/4"

Machine Screw

2шт.

16

18-1565

LOCK SCREW,5/16" - 18 x 0.95"

Screw, Locking

1шт.

17

1-3889

EXTENSION

1шт.

18

19-945

Machine Screw

4шт.

19

18-1567T1

CONTROL LEVER

Lever Assy, Tilt Control

1шт.

20

1-4188T1

CONTROL LEVER

Lever Assy, Turn Signal

1шт.

21

1-4500

BUTTON

Knob, Hazard

1шт.

22

19-5456

SCREW,Oval Hd, M3.5

1шт.

23

18-1570

RING, SNAP

Retainer

1шт.

24

18-1571

WHEEL

Steering Wheel (incl Refs. 7 & 25)

1шт.

See figure 1-10 for Steering Wheel & Attaching Parts used ASN 2501

1шт.

25

18-1740

SUPPORT

Spacer

1шт.

26

7810280

NUT

1шт.

27

19-1026

JAM NUT,9/16" - 18, Gr 5

(incl with Ref. 1)

1шт.

28

47-4508

FOAM

Seal

1шт.

29

19-288

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Capscrew, 5/16 x 5/8 UNC (used with Steering Column P/N 01-3508)

4шт.

11500763

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

Capscrew, M6.3-1 x 16 mm (used with Steering Column P/N 01-7630)

1шт.

30

1-3412

CLAMP

Column

1шт.

2-3816T1

Spacer (not shown) (used with this clamp on some early models only)

1шт.

31

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

Socket Head Capscrew

2шт.

32

47-4514

Shaft, Steering (Early Style)

1шт.

1-3417

STEERING ASSY

Shaft, Steering (Later Style)

1шт.

33

1-3413

Collar (Early Style)

1шт.

2-3813T1

COLLAR

(Later Style)

1шт.

34

19-151

LOCK PIN,1/4" x 1", Slotted

Pin, (qty 4 on early style) 1/4" x 1", Slotted

3шт.

35

1-3414T1

SHAFT

Spline

1шт.

36

19-5525

Capscrew

4шт.

37

47-4512

PLATE

(qty 2 on Early Style)

1шт.

38

18-511

MOUNTING PARTS

Mount, Rubber

4шт.

39

1-5969

PLATE

(Early Style)

1шт.

Superseded, Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

60-1471T1

BRACKET

Plate (Later Style)

1шт.

Superseded, Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

40

19-341

LOCK NUT,3/8" - 16, GB

2шт.

41

19-107

WASHER

2шт.

42

60-1575T1

PLATE

(Early Style) (replaces P/N 01-4307)

1шт.

Superseded, Old P/N is not used any longer; the new P/N is to be used in ALL CASES, Old P/N should be removed from existing inventory. It is not to be used under any circumstances.

1шт.

Superseded, Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

60-1469T2

BRACKET

Plate (Later Style)

1шт.

Superseded, Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

43

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

4шт.

44

19-700

WASHER,5/16"

4шт.

45

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

Capscrew

4шт.

46

7809433

CLAMP

1шт.

47

7803464

CARRIAGE BOLT,7/16" - 20 x 1.88"

Capscrew

1шт.

48

2-3770T1

PLATE

1шт.

49

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Capscrew

2шт.

50

2-3769T1

PLATE

1шт.

51

19-5669

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.
