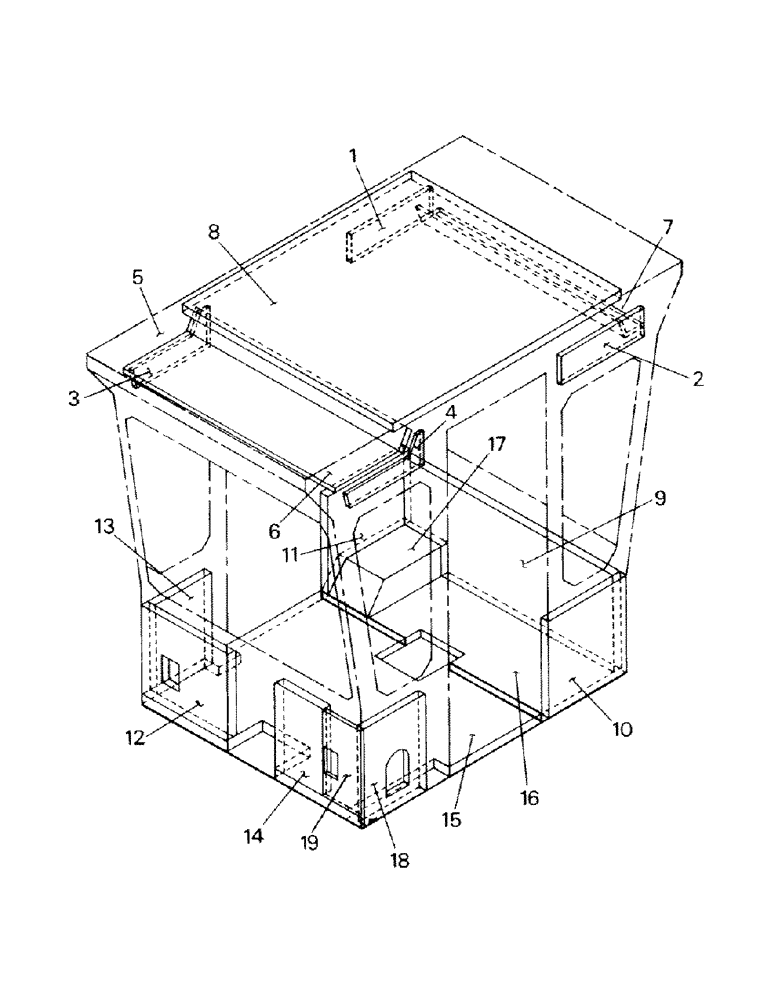

Запчасти Case IH ST450 (01-06) - CAB INSULATION AND VINYL (10) - CAB

1

1-8103

ROOF LINING

Insulation, Right Upper Rear

1шт.

2

1-8092

ISOLATOR

Insulation, Left Upper Rear

1шт.

3

1-8718

INSULATOR

Insulation, Right Upper Front

1шт.

4

1-8719

ISOLATOR

Insulation, Left Upper Front

1шт.

5

1-5431

Insulation, Front Roof

1шт.

6

1-9729

ISOLATOR

Insulation, Console

1шт.

7

1-9730

ISOLATOR

Insulation, Rear Cover

1шт.

8

1-9731

ISOLATOR

Insulation, Roof

1шт.

9

1-5423

PANEL

Insulation, Bottom Rear

1шт.

10

1-5425

PANEL

Insulation, Left Lower Rear

1шт.

11

1-5424

PANEL

Insulation, Right Lower Rear

1шт.

12

47-2451

Insulation, Wrap-A-Round (used with 6-Plug Bulkhead style connectors)

1шт.

1-8799

INSULATOR

Insulation, Wrap-A-Round (used with Single Plug Packard style connector)

1шт.

13

54-348

ISOLATOR

Insulation, Right Side Front

1шт.

14

47-2507T1

ISOLATOR

Insulation, Wrap-A-Round

1шт.

15

47-4660T1

FLOOR MAT

Floormat, Front

1шт.

16

1-5397T1

FLOOR MAT

Floormat, Rear

1шт.

17

47-4699

CARPET

Assembly

1шт.

18

1-8653

INSULATOR

Insulation, Module Side

1шт.

19

25-1005

ISOLATOR

Insulation, Module Front

1шт.

27-1

ADHESIVE

(1 gal.) (not shown)

1шт.
