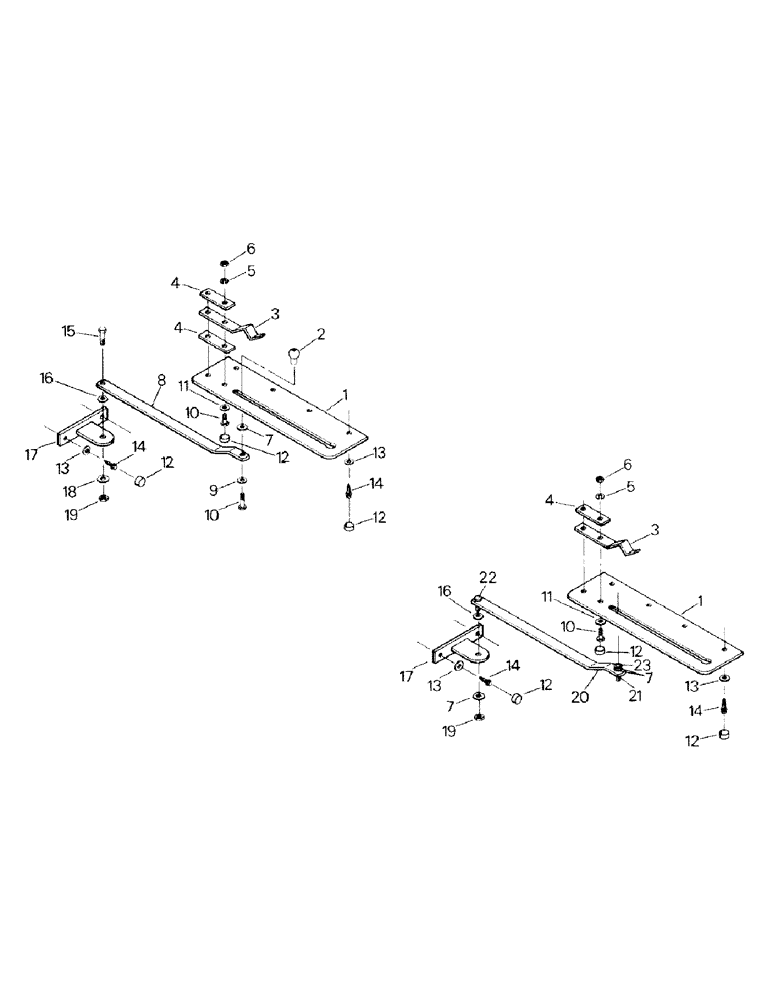

Запчасти Case IH ST450 (01-04) - DOOR STOP ASSEMBLY (10) - CAB

1

1-1649

LARGE PLATE

Plate, Mounting

2шт.

2

1-4712

STOP

2шт.

3

1-1658

SPRING

Door Latch

2шт.

4

1-1657

LARGE PLATE

Plate (qty. 2 on Later Style)

4шт.

5

19-115

LOCK WASHER,1/4"

1/4"

4шт.

6

19-76

NUT,1/4"-20, G5

1/4 UNC

4шт.

7

19-5434

WASHER

3шт.

8

1-5422

COUPLING, QUICK, FEM

Link, Connecting (Early Style)

2шт.

9

19-223

WASHER,1/4"

1/4

2шт.

10

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Capscrew, 1/4 x 1 UNC (qty 4 on Later Style)

6шт.

11

1-4456

CAP WASHER

Caplug Washer

4шт.

12

1-3990

PLUG

Caplug

16шт.

13

1-3991

WASHER

Caplug Washer

12шт.

14

19-5707

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1"

Screw, Tapping, 5/16 x 1 UNC

12шт.

15

19-322

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

Capscrew, 3/8 x 3/4 UNF

2шт.

16

19-5370

WAVE WASHER

Wave Washer

2шт.

17

1-1653

BRACKET

2шт.

18

19-107

WASHER

3/8

2шт.

19

19-90

NUT

Lock Nut, 3/8 UNF

2шт.

60-1165T91

CONNECTING LINK

Assembly consists of Ref. 20-23 (also contains Ref. 7)

2шт.

20

60-1138T1

LINK

Connecting

2шт.

21

19-823

NUT,3/8"-16, G5

3/8 UNC

4шт.

22

19-26

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

Capscrew, 3/8 x 1-1/4 UNF

2шт.

23

114705

SCREW

Machine Screw, 3/8 x 1-1/4 UNC

2шт.
