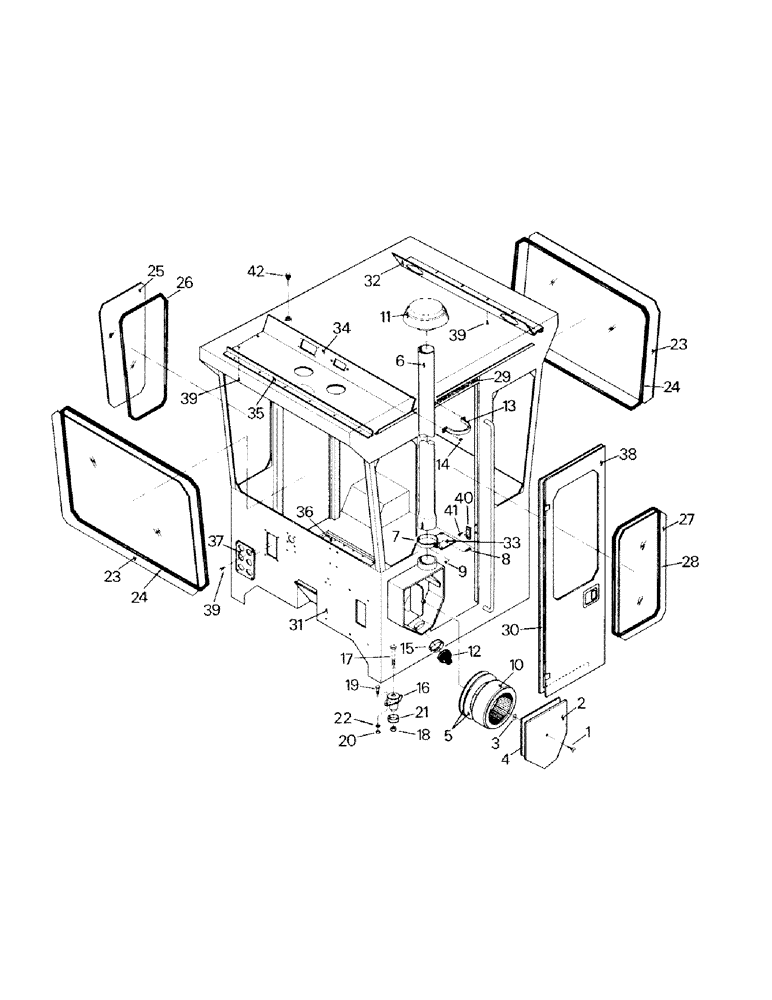

Запчасти Case IH ST450 (01-01) - CAB (10) - CAB

54-307

RETAINER

Cover Assembly, consists of Ref. 1-4

1шт.

1

19-937

BOLT

Wing Bolt

1шт.

2

54-303

COVER

1шт.

3

61-104

RETAINER

1шт.

4

54-412

SEAL

1шт.

5

54-302T1

SEAL

2шт.

6

54-306

MUFFLER

Air Intake Stack

1шт.

7

32-315

CLAMP

(not, Serial Range: necessary-use)

1шт.

8

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

Capscrew

1шт.

9

19-78

SPECIAL NUT,3/8"-16, G5

1шт.

10

54-304T1

ELEMENT

Air Filter

1шт.

11

54-305

CAP

1шт.

12

66-177

VALVE

Evaculator Valve

1шт.

13

54-308

BRACKET

1шт.

14

19-76

NUT,1/4"-20, G5

2шт.

15

32-60

CLAMP,#48, 2.56/3.50 Type F Worm

1шт.

16

31-1198

ANCHOR

Mount, Isolation

4шт.

17

19-5404

BOLT,Hex, 1" - 8 x 5.50", Gr 8

Capscrew

4шт.

18

19-5405

LOCK NUT

Lock Nut

4шт.

19

19-543

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

Capscrew

8шт.

20

19-653

LOCK NUT

8шт.

21

47-4334

FITTING

Snubber

4шт.

22

19-109

WASHER,1/2"

8шт.

23

47-2443

GLASS

Front & Rear

2шт.

24

47-4087

MOLDING

2шт.

25

54-262

GLASS

Side

4шт.

26

4-547

MOLDING

4шт.

27

54-261

GLASS

Door

2шт.

28

4-548

MOLDING

2шт.

29

1-3044

FOAM

Pad

2шт.

30

4-465

SEALING STRIP

Weather Stripping, Door

2шт.

27-71

PASTE

Caulking, Weather Stripping (.08 g)

1шт.

24-181

SEAL

Glue, Weather Stripping (.08 g)

1шт.

31

Cab structure (special order)

1шт.

32

Console, Rear (see Fig. 1-32 & 1/33)

1шт.

33

47-2715

Cover, Floor

1шт.

34

Console Front (see Fig. 1-25 & 1-26)

1шт.

35

1-6839

BRACE

1шт.

36

47-4373

Cover, Access

1шт.

47-4643

Foam Pad (under Cover)

2шт.

4-1063

FOAM

Pad (under Cover)

2шт.

37

47-3608

Plate, Bulkhead (used with 6-Plug Bulkhead style connectors)

1шт.

38

Door (see Fig. 1-3)

1шт.

1-4464

LOCK

set, Door (not shown)

2шт.

39

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Screw, Self-Tapping

12шт.

40

1-3180

HAMMER

Striker Pin Assy

2шт.

1-4167

SHIM

(not shown)

4шт.

41

19-957

SCREW

4шт.

42

31-1002

Plug, Cab Lift

4шт.
