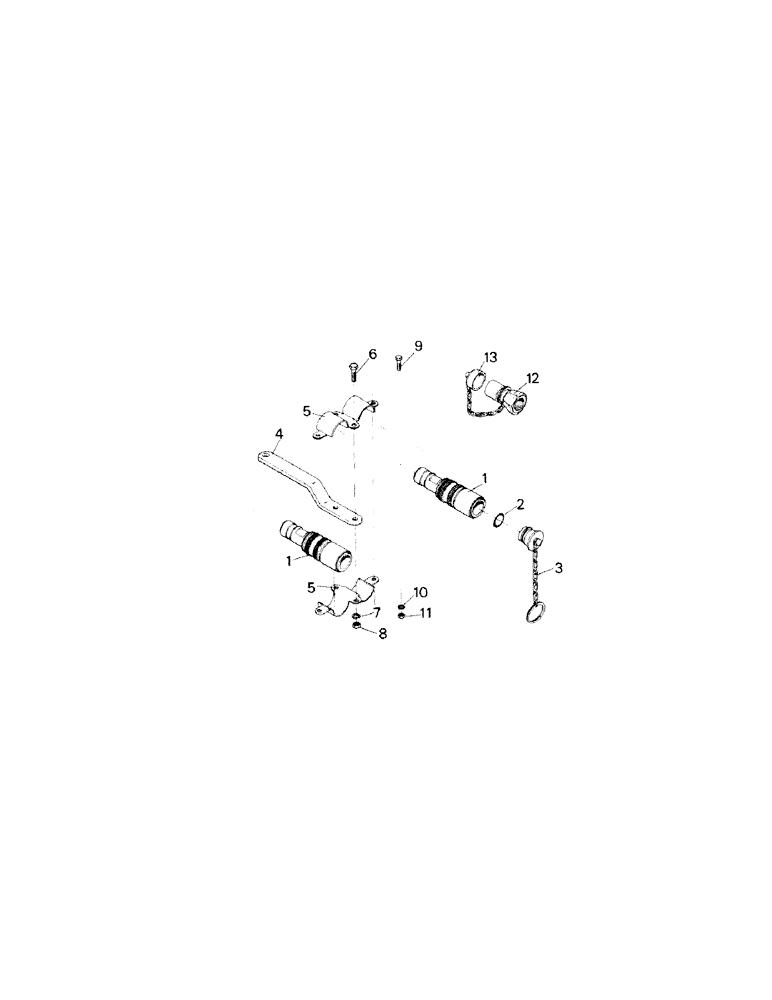

Запчасти Case IH ST450 (08-21) - HYDRAULIC COUPLERS, PIONEER, EARLY STYLE (07) - HYDRAULICS

1-7135

COUPLING

Hydraulic Coupler (B), consists of Ref. 1-13

1шт.

Superseded, Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

1-7136

COUPLING, QUICK, FEM

Hydraulic Coupler (w/o Male Tips)

1шт.

1

1-7137

COUPLING

Female Assy (incl #2)

2шт.

2

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-Ring

2шт.

3

18-40

PLUG

Dust Plug

2шт.

1-7138

CLAMP

Assy, consists of Ref. 4-11

1шт.

4

1-7139

BAR

1шт.

5

1-7140

YOKE

2шт.

6

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Capscrew

2шт.

7

19-116

LOCK WASHER,5/16"

5/16"

2шт.

8

19-77

NUT,5/16"-18, G5

2шт.

9

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Capscrew

2шт.

10

19-115

LOCK WASHER,1/4"

1/4"

2шт.

11

19-76

NUT,1/4"-20, G5

2шт.

12

1-7141

FITTING

Male Tip Assy

2шт.

13

1-7142

CAP

Dust Cap

2шт.
