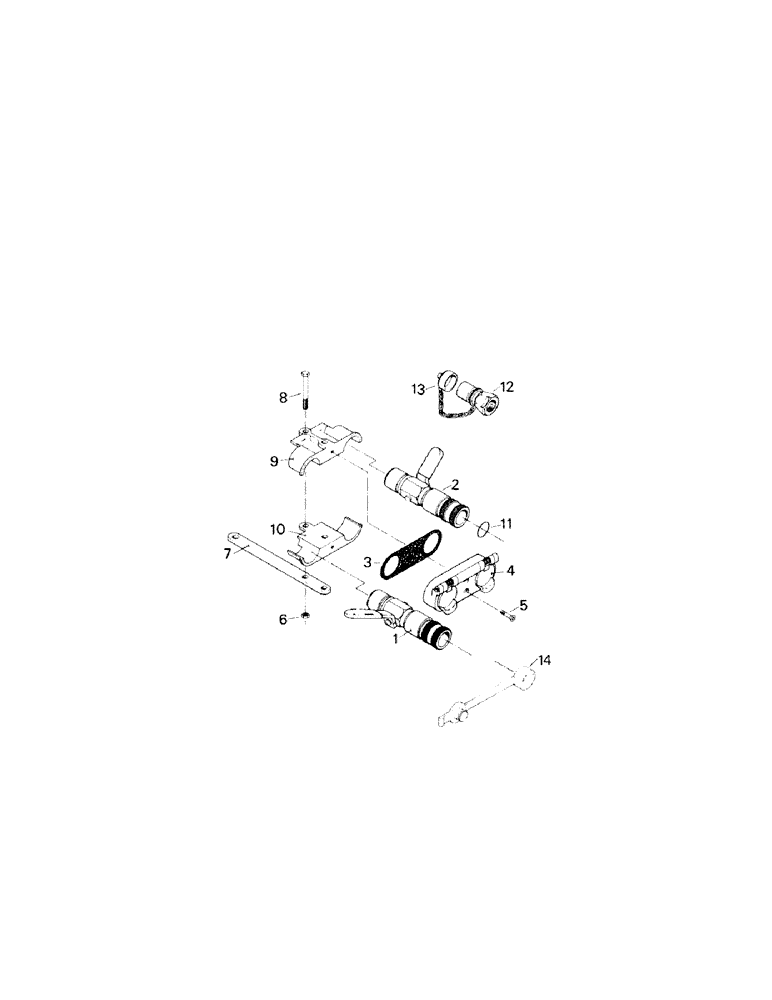

Запчасти Case IH ST450 (08-21[1]) - HYDRAULIC COUPLERS, LATER STYLE (07) - HYDRAULICS

50-1347T91

COUPLING

Hydraulic Coupler, consists of Ref. 1-14, later style

1шт.

Superseded, Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

1

50-1460T91

PUSH-PULL COUPLING

Female Assy (Yellow Grip) (incl 11), later style

1шт.

2

50-1459T91

PUSH-PULL COUPLING

Female Assy (Red Grip) (incl 11), later style

1шт.

3

50-1458T1

GASKET

later style

1шт.

4

50-1457T1

HOUSING

Assy (can service w/2 of Ref. 14), later style

1шт.

5

138203

HEX SOC SCREW,1/4" - 20 x 1 1/4", Gr 8

Socket Head Capscrew, later style

2шт.

6

232-4136

LOCK NUT,3/8"-16, GC

later style

2шт.

7

50-1456T1

CLAMP

Bar, later style

1шт.

8

19-23

BOLT,3/8" - 16 x 2 3/4", Gr 5

Capscrew, later style

2шт.

9

50-1455T1

CLAMP BRACKET

Clamp, Top, later style

1шт.

10

50-1454T1

CLAMP BRACKET

Clamp, Bottom, later style

1шт.

11

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-Ring, later style

2шт.

12

1-7141

FITTING

Male Tip, later style

2шт.

13

1-7142

CAP

Dust Cap, later style

2шт.

14

50-2267T1

PLUG

(replaces Ref. 3-5), later style

2шт.
