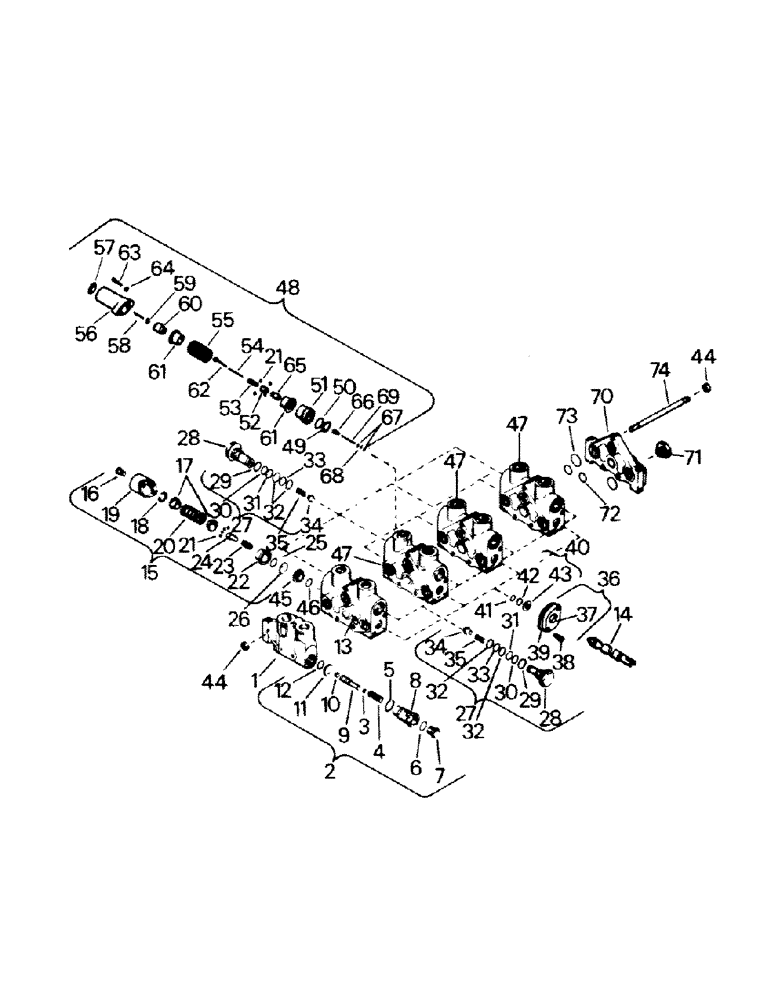

Запчасти Case IH ST450 (08-17) - CONTROL VALVE (07) - HYDRAULICS

50-1396T91

VALVE

4 Spool Valve

1шт.

50-1397T91

VALVE

5 Spool Valve (01-2364T92 & 01-2364T91)

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

1

18-1714

PLATE

Left Cover Plate (incl Ref. 2) (Casting No. 1862)

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

50-1977T91

PLATE

Left Cover Plate (incl Ref. 2)

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

Use in 50-1396T91 & 50-1397T91 only

1шт.

2

18-1703

VALVE, PRESSURE RELI

Relief Assy, 2250 psi (incl 3-12)

1шт.

50-1978T91

ASSEMBLY

Relief Assy, 2250 psi (incl 3-12) #1

1шт.

Use in 50-1396T91 & 50-1397T91 only

1шт.

3

18-1509

SHIM

(.010)

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

O-Rings (Ref. 78)

1шт.

6

NSS

NOT SOLD SEPARAT

O-Rings (Ref. 78)

1шт.

7

NSS

NOT SOLD SEPARAT

Relief Spring Cap

1шт.

8

NSS

NOT SOLD SEPARAT

Relief Valve Body

1шт.

9

18-1417

SEAL

Poppet & Seal Assy

1шт.

10

18-1417

SEAL

Poppet & Seal Assy

1шт.

11

NSS

NOT SOLD SEPARAT

Washer, BU (in Ref. 78)

1шт.

12

NSS

NOT SOLD SEPARAT

Seal (in Ref. 78)

1шт.

13

18-1716

KNIFE SECTION

Float Section (incl Refs. 14, 15, 27, 36, 40 & 44-46)

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

50-1979T91

HYD VALVE SECTION

(same as above)

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

Use in valves 50-1396T91and 50-1397T91 and can also be used as a replacement for P/N 18-882 above

1шт.

14

NSS

NOT SOLD SEPARAT

Spool (in #13)

4шт.

15

18-882

FLOAT

Positioner (incl 16-26)

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

50-1980T91

CAP ASSY.

Float Positioner (incl 16-26)

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

Use in valves 50-1396T91and 50-1397T91 and can also be used as a replacement for P/N 18-882 above

1шт.

16

18-712

SCREW

2шт.

17

18-826

COLLAR ASSY.

Collar

2шт.

18

NSS

NOT SOLD SEPARAT

Retaining Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Bonnet

1шт.

20

NSS

NOT SOLD SEPARAT

Centering Spring

4шт.

21

NSS

NOT SOLD SEPARAT

Detent Ball

1шт.

22

NSS

NOT SOLD SEPARAT

Detent Sleeve

1шт.

23

NSS

NOT SOLD SEPARAT

Detent Spring

1шт.

24

NSS

NOT SOLD SEPARAT

Detent Ball Follower

1шт.

25

NSS

NOT SOLD SEPARAT

Quad Ring Seal (in Ref. 76)

1шт.

26

NSS

NOT SOLD SEPARAT

O-Ring (in Ref. 76)

1шт.

27

18-876

PLUG

Load Check Plug (incl 28-35)

8шт.

28

NSS

NOT SOLD SEPARAT

Lift Check Plug

8шт.

29

NSS

NOT SOLD SEPARAT

O-Ring (in Refs. 75, 76 & 79)

8шт.

30

NSS

NOT SOLD SEPARAT

Washer, BU (in Refs. 75, 76 & 79)

8шт.

31

NSS

NOT SOLD SEPARAT

O-Ring (in Refs. 75, 76 & 79)

8шт.

32

NSS

NOT SOLD SEPARAT

Washer, BU (in Refs. 75, 76 & 79)

16шт.

33

NSS

NOT SOLD SEPARAT

O-Ring (in Refs. 75, 76 & 79)

8шт.

34

NSS

NOT SOLD SEPARAT

Lift Check Poppet

8шт.

35

NSS

NOT SOLD SEPARAT

Spring, Lift Check

8шт.

18-1704

RETAINER

Spool Seal Retainer, consists of Ref. 36-39

4шт.

38

18-1702

SCREW

& Lock Washer

8шт.

40

18-878

SEAL

Kit (incl 41-43) (in Ref. 76)

4шт.

41

NSS

NOT SOLD SEPARAT

Seal (in Refs. 40, 76, 79 & 80)

4шт.

42

NSS

NOT SOLD SEPARAT

Washer, BU (in Refs. 40, 76, 79 & 80)

1шт.

43

NSS

NOT SOLD SEPARAT

Seal Retainer (in Refs. 40, 76 & 79)

4шт.

44

18-909

LOCK NUT

Nut

6шт.

45

18-895

LARGE PLATE

Plate

3шт.

46

NSS

NOT SOLD SEPARAT

O-Ring (in Ref. 76)

3шт.

47

1-3524

HYD VALVE SECTION

Detent Section (incl Ref. 14, 27, 36, 40 & 8) (see Ref. 79)

3шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

50-1981T91

HYD VALVE SECTION

(same as above)

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

Use in valves 50-1396T91and 50-1397T91 and can also be used as a replacement for P/N 18-882 above

1шт.

48

1-3549

LEVER

Positioner Assy (Early Style)

3шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

50-1981T91

HYD VALVE SECTION

(same as above)

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

Use in valves 50-1396T91and 50-1397T91 and can also be used as a replacement for P/N 18-882 above

1шт.

48

1-3549

LEVER

Positioner Assy (Early Style)

3шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

50-2038T91

LEVER

Positioner Assy (Late Style)

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

Use in valves 50-1396T91and 50-1397T91 and can also be used as a replacement for P/N 18-882 above

1шт.

49

NSS

NOT SOLD SEPARAT

O-ring (in Refs. 79 & 80)

3шт.

50

NSS

NOT SOLD SEPARAT

Ring, BU (in Refs. 79 & 80) (49 & 50 are same as 41 & 42)

3шт.

51

NSS

NOT SOLD SEPARAT

Detent Sleeve

3шт.

52

NSS

NOT SOLD SEPARAT

Ball Follower

3шт.

53

NSS

NOT SOLD SEPARAT

Spring

3шт.

54

NSS

NOT SOLD SEPARAT

Spring

3шт.

55

NSS

NOT SOLD SEPARAT

Spring

3шт.

56

NSS

NOT SOLD SEPARAT

Bonnet

3шт.

57

2-3815T1

PLUG

Button Plug

3шт.

58

NSS

NOT SOLD SEPARAT

Set Screw

3шт.

59

NSS

NOT SOLD SEPARAT

Lock Nut

3шт.

60

NSS

NOT SOLD SEPARAT

Spool Collar

3шт.

61

NSS

NOT SOLD SEPARAT

Spring Collar

3шт.

62

NSS

NOT SOLD SEPARAT

Spring Guide

3шт.

63

NSS

NOT SOLD SEPARAT

Screw

6шт.

64

NSS

NOT SOLD SEPARAT

Bearing Plate

6шт.

65

NSS

NOT SOLD SEPARAT

Detent Plunger

3шт.

66

NSS

NOT SOLD SEPARAT

Piston Guide

3шт.

67

NSS

NOT SOLD SEPARAT

Ring, BU (in Ref. 79 & 80)

6шт.

68

NSS

NOT SOLD SEPARAT

O-Ring (in Refs. 79 & 80)

3шт.

69

NSS

NOT SOLD SEPARAT

Needle Roller

3шт.

70

50-1188T1

LARGE PLATE

Right Cover (incl Ref. 71)

1шт.

71

31-1594

PLUG,Hex Hd, 1 3/16"-12 ORB

(14) (see Note #4)

1шт.

72

NSS

NOT SOLD SEPARAT

O-Ring (in Refs. 76, 79 & 81)

10шт.

73

NSS

NOT SOLD SEPARAT

O-Ring (in Refs. 76, 79 & 81)

10шт.

74

18-1037

STUD,Flg, 3/8" x 9 1/2"

(4 Spool)

3шт.

18-1038

STUD,3/8" - 24 x 11.50"

(5 Spool)

1шт.

75

2-4786T1

SEAL KIT

Load Check Seal Kit (incl 1 ea Refs. 29-31 & 33; 2 ea. Ref. 32) (is part of Refs. 76 & 79)

1шт.

76

18-962

SEAL KIT

Kit, Complete for all Float Banks, or Spool portion of Wet Detent bank (casting #6721) (incl 2 of Ref. 75, 1 ea. Refs., 25, 26, 40, 46 & 81)

1шт.

77

18-1417

SEAL

Relief Poppet & Seal Assy (incl 9 & 10)

1шт.

78

18-1418

SEAL KIT

Relief Body Seal Kit (incl Refs. 5, 6, 11 & 12) (use w/casting #1862 before June 81)

1шт.

50-2039T1

SEAL KIT

(same as above) (use w/casting #8398 after June 81)

1шт.

Use in 50-1396T91 & 50-1397T91 only

1шт.

79

35-1059

SEAL KIT

Kit, Complete for Detent Section w/Ref. 48 (incl 1 ea. Refs. 57, 80, 81 & 2 of 75) (use on all after Mar 77) (casting #8072 or 7697)

1шт.

80

50-2050T1

SEAL KIT

Kit for Positioner Ref. 48 (incl Refs. 49, 50, 67 & 68) (use w/casting #8072 or 7697)

1шт.

Seal Kit No. 35-1277T91 has been replaced by 50-2050T1 as the correct Seal Kit for Ref. 48, Code (E).

1шт.

81

1-8344

SEAL KIT

O-Ring Kit (incl 2 ea. Refs. 72 & 73)

1шт.

40

18-878

SEAL

Kit (incl 1 ea Refs. 41-43) (note that Refs. 49 & 50 are same as 41 & 42)

1шт.

35-1408T91

KIT

4 to 5 Spool Valve Kit (Kits contain Knockout Section, Coupler, Cables, Control Lever, Hoses & necessary seals)

1шт.
