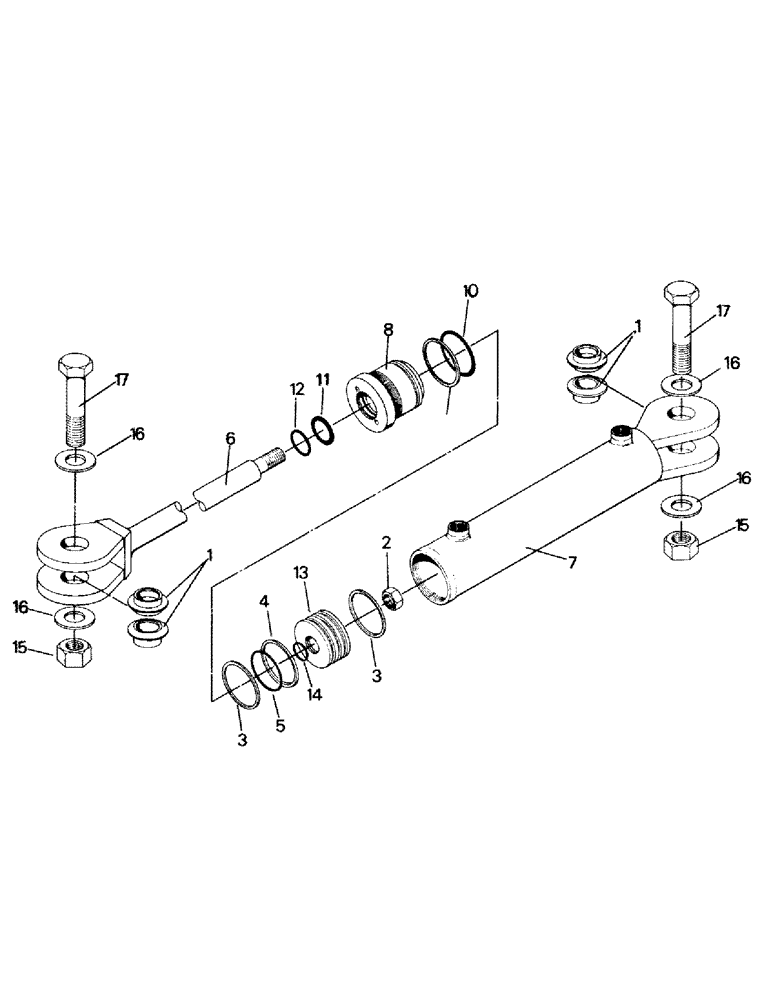

Запчасти Case IH ST450 (08-16) - STEERING CYLINDERS AND MOUNTING (07) - HYDRAULICS

1-8404T91

STEERING CYLINDER

Assembly (see Note), consists of

2шт.

On some early models Steering Cylinder P/N TX-3013 was used. This cylinder is no longer available as an assembly but Seal Kit P/N 35-1110 is still available. When replacing any major component of Cylinder P/N TX-3013 it is recommended that the entire cylinder assembly be replaced with P/N 01-8404T91.

1шт.

35-1136T91

SEAL KIT

Seal Kit (includes Ref. 1-14)

1шт.

1

52-130

BUSHING,38.2mm ID x 69.85mm OD x 26.42mm L

4шт.

2

19-5578

LOCK NUT

1шт.

3

NSS

NOT SOLD SEPARAT

Wear Ring

2шт.

4

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

1-8408

ROD

1шт.

7

1-8405T1

BARREL

Shell

1шт.

8

1-7772

CYLINDER END CAP

Rod Guide

1шт.

9

NSS

NOT SOLD SEPARAT

Washer, Back-Up

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Seal, Rod

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper, Canned

1шт.

13

1-7031

PISTON

1шт.

Piston P/N 02-4066T1 must be used when servicing steering cylinder P/N 01-8404. For steering cylinder P/N 01-8404T91 either of these pistons may be used. Please check identification.

1шт.

2-4066T1

PISTON

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

15

19-916

NUT

Jam Nut, 1-1/2 UNF

4шт.

16

19-938

WASHER

1-5/8

8шт.

17

19-915

BOLT,1 1/2" - 12 x 5 1/4", Gr 8

Capscrew, 1-1/2 x 5-1/4 UNF

4шт.
