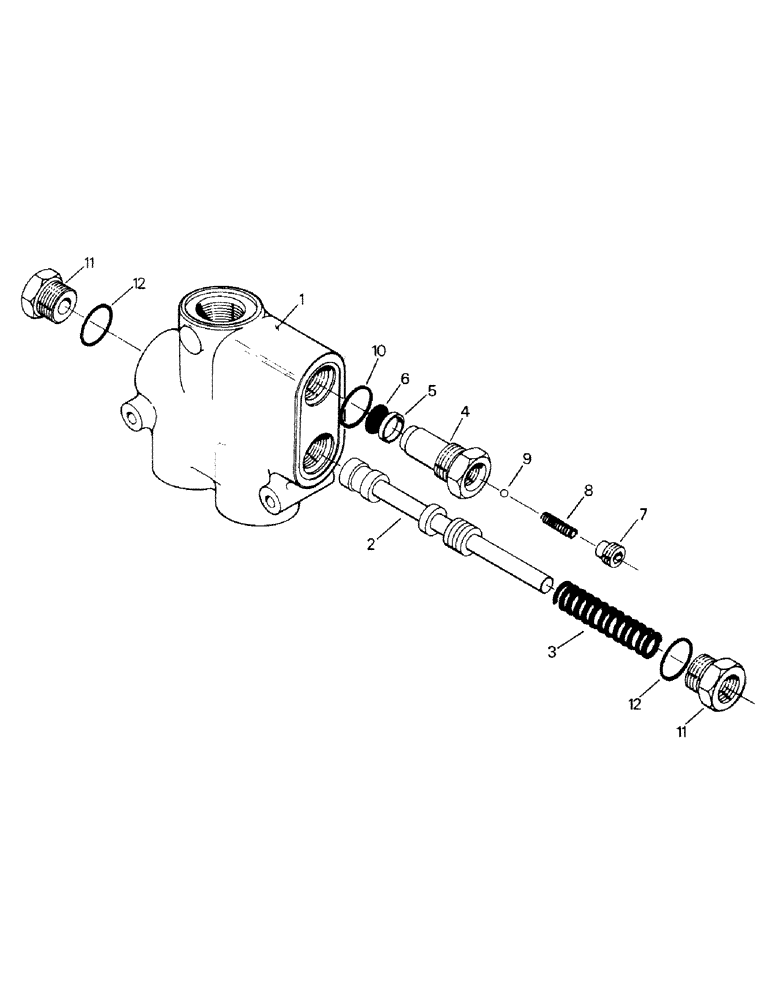

Запчасти Case IH ST450 (08-14) - PRIORITY VALVE ASSEMBLY (07) - HYDRAULICS

47-3002T91

VALVE

Steering Control Valve Assy, consists of Ref. 1-17

1шт.

Superseded, Old P/N is not used any longer; the new P/N is to be used in ALL Cases. Old P/N should be removed from existing inventory. It is recommended that the old part not bu used under any circumstances.

1шт.

A recent change was made to the relief cartridge increasing the pressure from 2000 P.S.I. (P/N 01-2216) to 2200 P.S.I. (P/N 50-1289T91). Coordinated with this change to the priority valve were pressure changes to the main relief valve and the relief assembly in the hydraulic control valve. When ordering either a new priority valve or just the relief cartridge, the latest style (2200 P.S.I.) should be ordered and the appropriate pressure changes made to the main relief valve and hydraulic control valve to a

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

2-1360

SPRING

1шт.

50-1959T91

VALVE

Relief Cartridge (50-1289T91) consists of Ref. 4-10

1шт.

Superseded, Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

NSS

NOT SOLD SEPARAT

Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Screen

1шт.

7

NSS

NOT SOLD SEPARAT

Adjusting Screw

1шт.

8

NSS

NOT SOLD SEPARAT

Spring

1шт.

9

NSS

NOT SOLD SEPARAT

Ball

1шт.

10

18-1592

O-RING

1шт.

11

2-1361

PLUG

2шт.

12

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

2шт.
