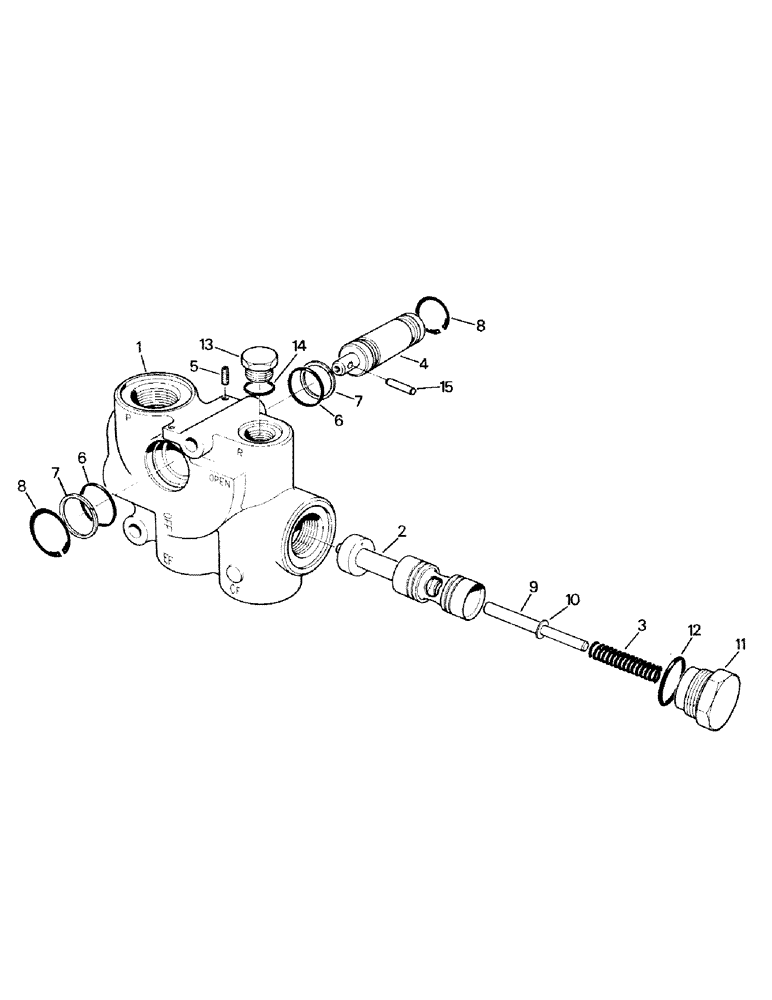

Запчасти Case IH ST450 (08-13) - FLOW DIVIDER (07) - HYDRAULICS

47-3505T91

DIVIDER

Flow Divider (47-3505)

1шт.

Superseded, Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

35-1218T91

SEAL KIT

Seal Kit (includes Ref. 1-15)

1шт.

1

18-1614

DIVIDER

Valve Body

1шт.

2

18-1615

PISTON

1шт.

3

18-1616

SPRING

1шт.

4

1-8181

VALVE

Control

1шт.

5

18-1618

SCREW

Set Screw

1шт.

6

31-1457

O-RING

2шт.

7

1-8180

RING

Back-Up Ring

2шт.

8

18-1621

RING, SNAP

Snap Ring

2шт.

9

18-1622

ROD

Retaining Rod

1шт.

10

18-1623

WASHER

1шт.

11

18-1624

PLUG

Assembly (with O-Ring)

1шт.

12

31-1100

O-RING,14-1, 90 Duro, 1.048" ID x .116"" Thk

1шт.

13

31-336

PLUG

Assembly (with O-Ring)

1шт.

14

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

456836

PIN,1/4" x 2 1/2", Coiled

1шт.
