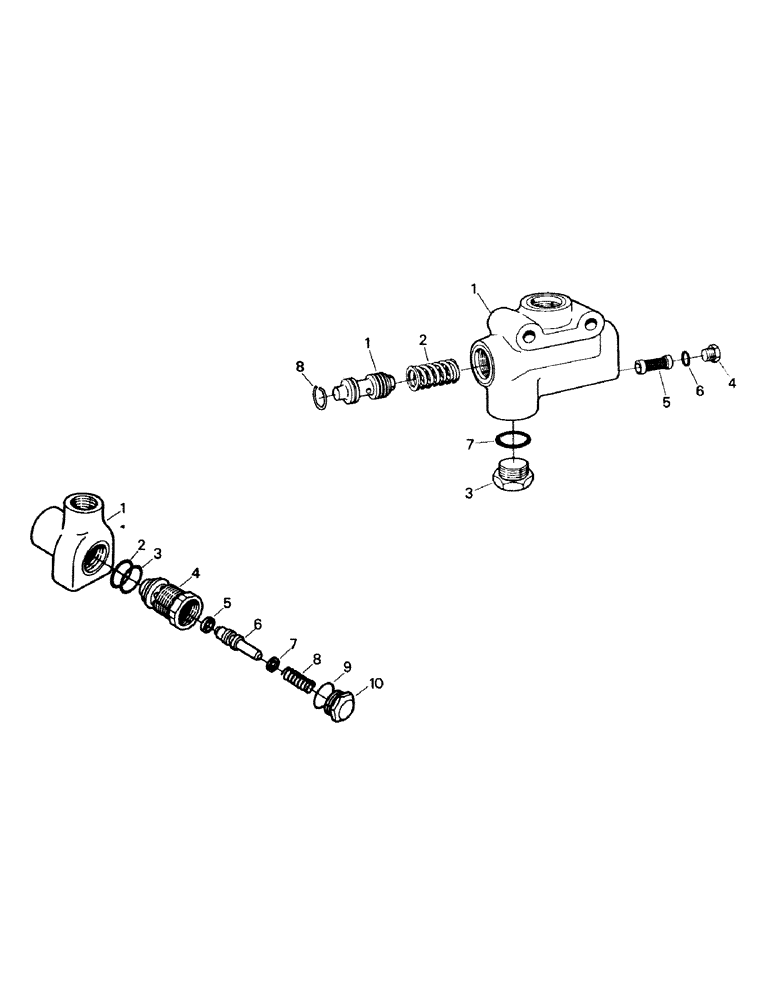

Запчасти Case IH ST450 (08-12) - RELIEF VALVE ASSEMBLY (07) - HYDRAULICS

18-1542

VALVE, PRESSURE RELI

Relief Valve (Early Style) (service w/later style), consists of Ref. 1-10

1шт.

1

18-1586

Housing

1шт.

2

18-1583

O-RING

1шт.

3

18-817

O-RING

1шт.

4

18-1587

VALVE, PRESSURE RELI

Relief Body

1шт.

18-1417

SEAL

Relief Poppet & Seal Assy, consists of Ref. 5-6

1шт.

7

NSS

NOT SOLD SEPARAT

Shim (.040)

1шт.

NSS

NOT SOLD SEPARAT

Shim (.020)

1шт.

18-1509

SHIM

(.010)

1шт.

8

1-4458

SPRING

1шт.

9

18-1582

O-RING

1шт.

10

18-923

PLUG

Relief Cap

1шт.

50-1209T91

VALVE, PRESSURE RELI

Relief Valve (replaces P/N 18-1542 and P/N 50-1139T91-Code E), consists of Ref. 1-8

1шт.

A recent change was made to the relief valve increasing the pressure from 2250 P.S.I (P/N 50-1139T91) to 2500 P.S.I. (P/N 50-1209T91). Coordinated with this change were pressure changed to the relief cartridge in the priority valve and the relief assy in the hydraulic control valve. When ordering a new relief valve the latest style (2500 P.S.I.) should be ordered and the appropriate pressure changes made to the priority valve and hydraulic control valve to assure proper function of the hydraulic system. S

1шт.

1

50-1878T1

SPOOL

Control Valve Sub-Assy

1шт.

2

50-1141T1

SPRING

1шт.

3

1-2198

PLUG

Assy (w/O-Ring)

1шт.

4

31-1551

Plug Assy (w/O-Ring)

1шт.

5

50-1143T1

SCREEN

Filter

1шт.

6

31-1552

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

7

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

50-1142T1

RING, SNAP

Snap Ring

1шт.
