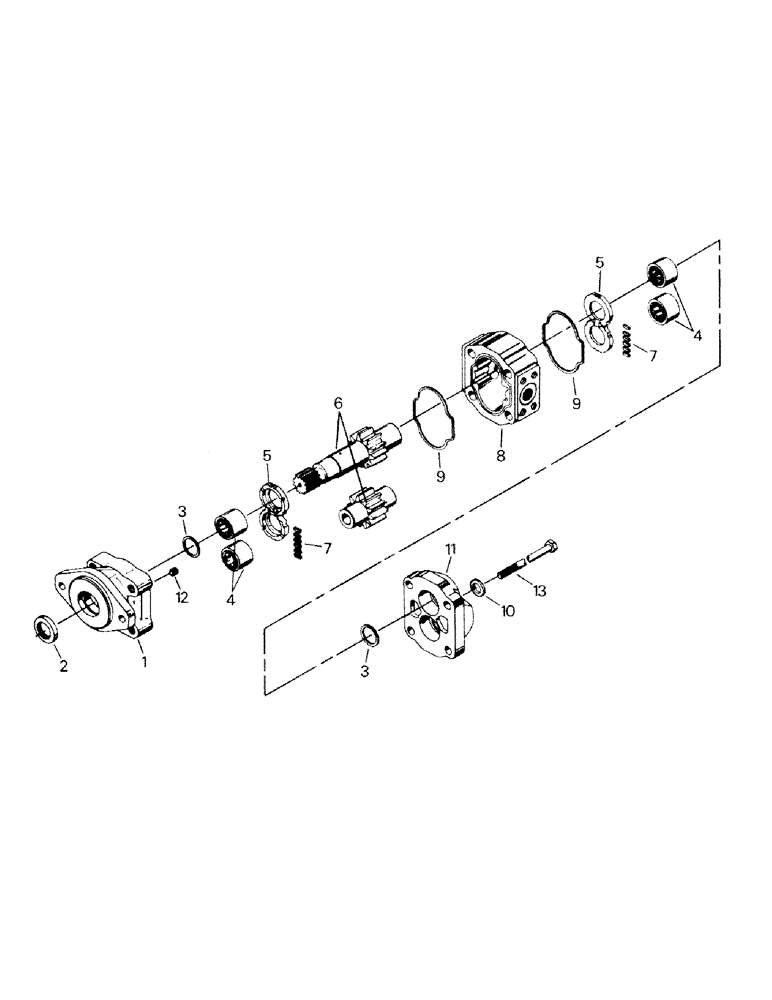

Запчасти Case IH ST450 (08-11) - HYDRAULIC PUMP ASSEMBLY, FOR PUMP REPLACEMENT KIT FOR CUMMINS ENGINE (07) - HYDRAULICS

50-2049T91

PUMP

Hydraulic Pump Assy Ref. 1-13

1шт.

1

50-1836T1

Shaft End Cover

1шт.

2

18-457

SEAL

1шт.

3

18-458

OIL SEAL

Ring Seal

2шт.

4

18-794

BEARING

Roller Bearing

4шт.

5

18-795

LARGE PLATE

Thrust Plate

2шт.

6

50-1854T1

GEAR-SET

Drive Shaft & Gear Set

1шт.

REF#6-MEASURES 7-1/2" OVERALL

1шт.

7

18-971

SEAL

Pocket Seal

12шт.

8

50-1853T91

GEAR

Housing (Replaces 50-1853T1)

1шт.

9

18-798

GASKET

Seal

2шт.

10

19-488

WASHER

4шт.

11

18-791

PORT

End Cover

1шт.

12

18-772

PLUG

1шт.

13

19-209

BOLT,Hex, 5/8" - 11 x 5", Gr 5

Capscrew

4шт.
