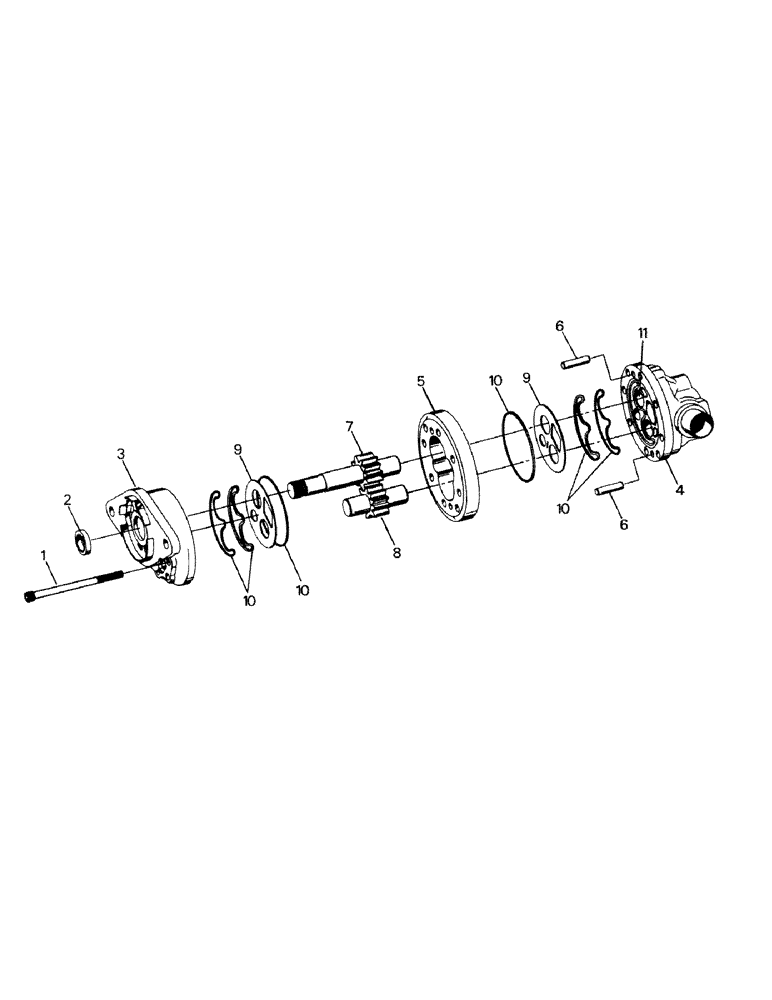

Запчасти Case IH ST450 (08-09) - HYDRAULIC PUMP ASSEMBLIES (07) - HYDRAULICS

1-7108

HYDRAULIC PUMP

Pump Assy consists of, Cummins Engine, Includes: Ref. 1-11

1шт.

On some early models w/Cummins engine, Hydraulic Pump P/N TX-3496 was used. The only difference between the early and later pump (P/N 01-7108) is the Body Housing (Ref. 3) and Seal (Ref. 2). The early pumps should be stamped with P/N 388KB13AX-R while the later pumps will have P/N 388KB13AX-10R stamped on them. Because of the improved design of the new Seal (Ref. 2), it is recommended that when replacing the Body Housing (Ref.3) on the early pumps that the later style Housing (P/N 01-7118) be ordered. T

1шт.

1-8775

Pump Assy, Cat Engine, Includes: Ref. 1-11

1шт.

1

19-1057

HEX SOC SCREW,3/8" - 16 x 3 1/2"

Bolt

8шт.

2

1-9400

OIL SEAL

Seal (in Kit P/N 35-1122 or sold separately)

1шт.

1-7118

BODY

Assy, Cummins Engine

1шт.

2-1511

Body Assy (incl Refs. 2 & 11), Cat Engine

1шт.

4

18-1253

Cover Assy (incl Ref. 11)

1шт.

5

18-1758

PLATE

Gear Plate

1шт.

6

18-1755

Dowell

2шт.

7

18-1756

GEAR

Drive Shaft & Gear Assy

1шт.

8

18-1757

Idler Shaft & Gear Assy

1шт.

9

1-9709

LARGE PLATE

Wear Plate

2шт.

10

35-1122

SEAL KIT

Minor Repair Kit (incl Ref. 2)

1шт.

11

1-9713

NEEDLE BEARING

Bearing (in Refs. 3 & 4)

4шт.
