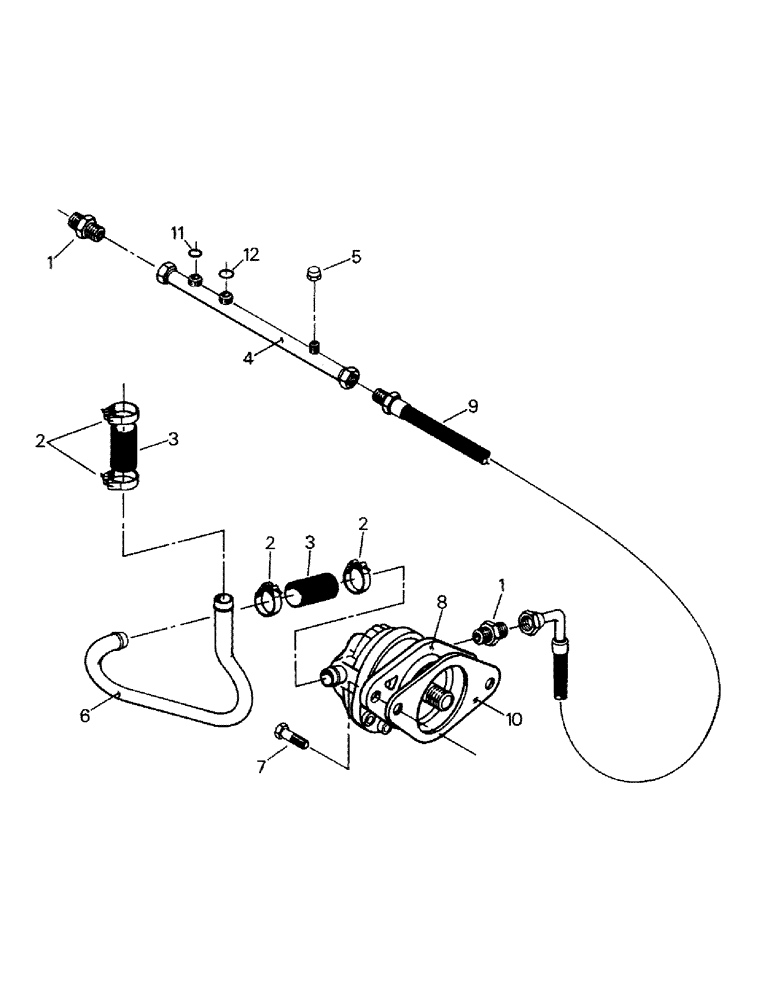

Запчасти Case IH ST450 (08-08) - HYDRAULIC PUMP AND MOUNTING, CAT ENGINE (07) - HYDRAULICS

1

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Adapter (16)

2шт.

2

31-1283

MOUNTING CLIP

Clamp

4шт.

3

1-4571

HOSE

2шт.

4

1-8776

Tube 1" OD, 2100 mm Length

1шт.

5

9403369

CAP,37 Degree, 7/16"-20

1шт.

6

1-8330

HYD TUBE

Tube

1шт.

7

19-543

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

Capscrew

2шт.

8

Pump Assy (see Fig. 8-9)

1шт.

9

31-1366

HOSE ASSY.

Hose

1шт.

10

18-1176

GASKET

1шт.

11

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

1шт.
