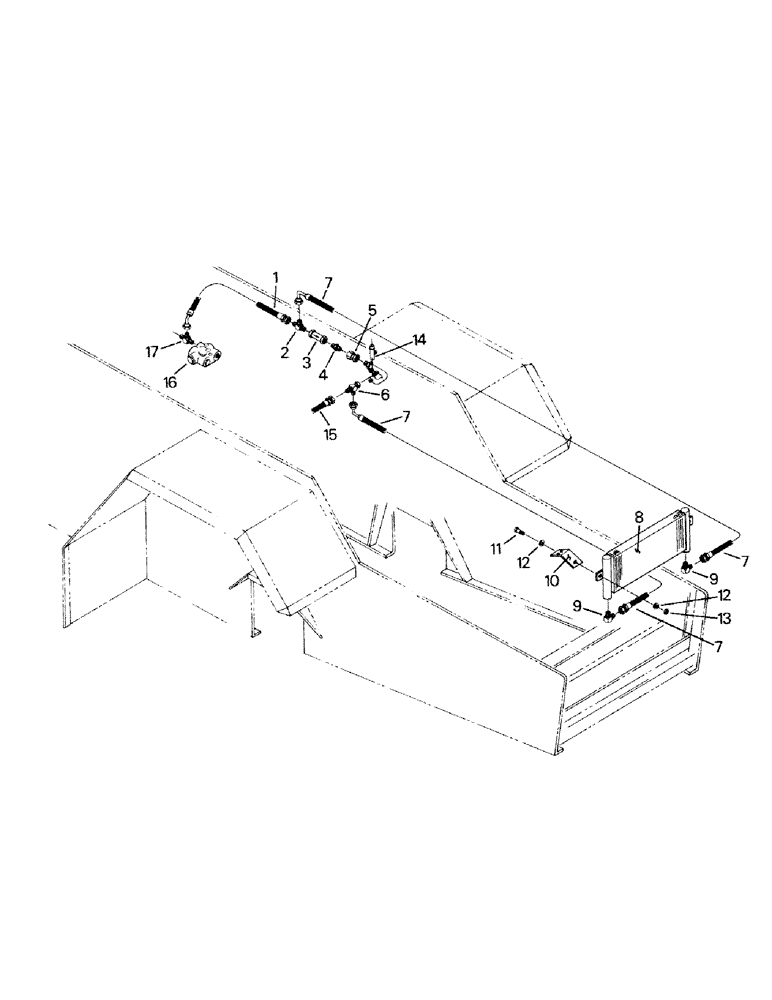

Запчасти Case IH ST450 (08-05) - HYDRAULIC OIL COOLING SYSTEM, ASN 129-00011 AND 130-00213 (07) - HYDRAULICS

1

31-1702

HOSE

1шт.

2

31-1693

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Run

1шт.

3

50-1023T1

VALVE

Check Valve

1шт.

4

31-1701

COUPLING,1"-11 1/2 NPTF x 3/4"-14 NPTF

Adapter

1шт.

5

31-1700

HYD CONNECTOR,37 Degree, Sw, 1 5/16"-12" x 1"-11 1/2 NPTF

Adapter

1шт.

6

31-1301

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

7

31-1699

HOSE

2шт.

8

10-39

COOLER

Oil Cooler

1шт.

9

31-340

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

2шт.

10

50-1231T1

BRACKET

(Left)

1шт.

50-1230T1

BRACKET

(Right)

1шт.

11

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew

2шт.

12

19-107

WASHER

4шт.

13

19-78

SPECIAL NUT,3/8"-16, G5

2шт.

14

47-3507

HYD TUBE

Tube

1шт.

15

31-1077

HOSE

1шт.

16

47-3505

DIVIDER

Flow Divider

1шт.

17

31-1236

TEE,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring run

(16)

1шт.

18

19-135

CABLE TIE

Ty Rap (not shown)

6шт.
