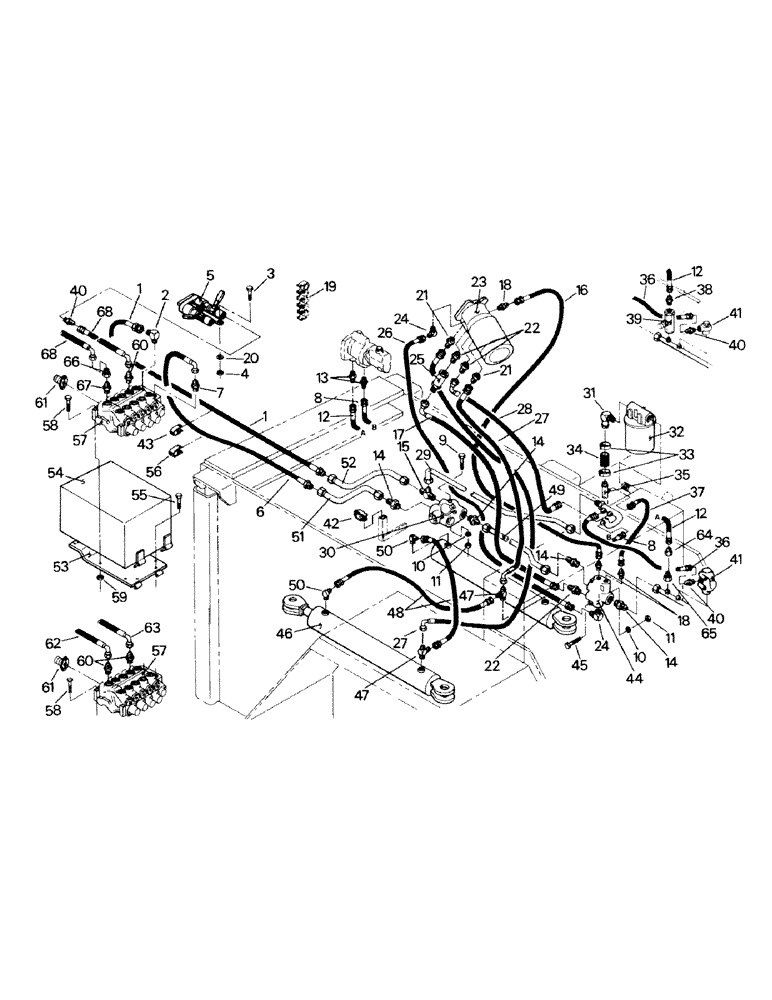

Запчасти Case IH ST450 (08-02) - HYDRAULIC SYSTEM, LESS PUMP AND MOUNTING (07) - HYDRAULICS

1

31-1361

HOSE

1шт.

2

31-368

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

(12)

1шт.

3

19-42

BOLT,1/2" - 13 x 2 1/4", Gr 5

Capscrew

3шт.

4

19-82

LOCK NUT

3шт.

5

Hydraulic Coupler (see Figs. 8-20 & 8-21)

5шт.

6

31-1362

HOSE

1шт.

7

18-783

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

Fitting (12)

1шт.

8

31-1039

HOSE ASSY.

Hose (31-1229)

1шт.

P/N duplication- New P/N will now be used in all cases. Renumber old stock with new P/N.

1шт.

9

19-1007

BOLT,Hex, 5/16" - 18 x 3", Gr 5

Capscrew

2шт.

10

19-700

WASHER,5/16"

4шт.

11

19-508

LOCK NUT

Lock Nut

4шт.

12

31-1228

HYDRAULIC HOSE

Hose

1шт.

13

31-330

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

Fitting (10) (used with Brake Master Cylinder P/Ns 47-4182 & 02-1207)

2шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Fitting (8) (used with Brake Master Cylinder P/N 90-2252T91)

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

14

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Adapter (16)

4шт.

15

31-1236

TEE,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring run

(16)

1шт.

16

18-1536

HOSE

1шт.

17

31-1233

HOSE

1шт.

18

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

Fitting (4)

3шт.

19

31-1244

CLAMP

5шт.

20

19-961

WASHER,17/32" x 1 1/2" x 1/8"

10шт.

21

31-397

COUPLING, BREAK AWAY,3/4"-16, 37 Degree x 1 5/16"-12, O-Ring

Fitting (16)

2шт.

22

31-610

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Fitting (16)

3шт.

23

Steering Control Valve (see Fig. 8-15)

1шт.

24

18-1538

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

(4)

2шт.

25

31-1363

VALVE

Check Valve

1шт.

26

31-1232

HOSE

1шт.

27

31-1276

HOSE

2шт.

28

31-1077

HOSE

(31-1227)

1шт.

P/N duplication- New P/N will now be used in all cases. Renumber old stock with new P/N.

1шт.

29

47-4477

HYD TUBE

Tube (not used with the Hydraulic Oil Cooling System)

1шт.

30

Flow Divider (see Fig. 8-13)

1шт.

31

31-1230

ADAPTER

Elbow

1шт.

32

18-497

FILTER

Assy (if not available, order separately)

1шт.

50-2602T1

HEAD

Filter Head

1шт.

18-498

FILTER, ENGINE OIL

Element

1шт.

18-669

O-RING

(used w/18-498)

1шт.

33

31-1283

MOUNTING CLIP

Clamp

2шт.

34

1-4571

HOSE

1шт.

35

47-3507

HYD TUBE

Tube

1шт.

36

31-1147

HOSE

1шт.

37

31-1231

HOSE ASSY.,152.4 mm ID, 762 mm Length

Hose

1шт.

38

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Fitting (8) (Early Style) (see upper right inset)

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

From SN 130-00156 to 130-00178, Ref. 39 had pipe thread instead of straight thread. When a replacement is needed for these units, always order 31-329 (Ref. 38) also. ASN 129-00011 & 130-00210, Refs. 38 & 39 were replaced by Refs. 64 & 65 due to change in the Power Brake Master Cylinder.

1шт.

31-363

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

Fitting (Pipe Threads) (Early Style) (see upper right inset)

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

From SN 130-00156 to 130-00178, Ref. 39 had pipe thread instead of straight thread. When a replacement is needed for these units, always order 31-329 (Ref. 38) also. ASN 129-00011 & 130-00210, Refs. 38 & 39 were replaced by Refs. 64 & 65 due to change in the Power Brake Master Cylinder.

1шт.

39

47-4476

VALVE

Flow Control Valve (Early Style) (See upper right inset)

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

From SN 130-00156 to 130-00178, Ref. 39 had pipe thread instead of straight thread. When a replacement is needed for these units, always order 31-329 (Ref. 38) also. ASN 129-00011 & 130-00210, Refs. 38 & 39 were replaced by Refs. 64 & 65 due to change in the Power Brake Master Cylinder.

1шт.

40

18-570

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Fitting (10)

11шт.

41

Relief Valve (see Fig. 8-12)

1шт.

42

31-1187

CLAMP

2шт.

43

31-1151

CLAMP

1шт.

44

Priority Valve (see Fig. 8-14)

1шт.

45

19-725

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

Capscrew

2шт.

46

Steering Cyl (see Fig. 8-16)

2шт.

47

31-507

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

(8)

2шт.

48

32-177

HOSE

2шт.

49

31-2526

HOSE ASSY.

Hose (47-4473 Tube)

1шт.

Superseded-Old P/N is not used any longer; the new P/N is to be used in ALL cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

50

31-323

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

(8)

2шт.

51

47-3510

TUBE ASSY.

Tube

1шт.

52

47-3504

TUBE ASSY.

Tube

1шт.

53

47-4395

MOUNTING PARTS

Control Valve Mount

1шт.

54

47-4392T1

Control Valve Cover

1шт.

55

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Capscrew

3шт.

56

31-1150

CLAMP

1шт.

57

Control Valve (see Fig. 8-17)

1шт.

58

19-535

BOLT,5/16" - 18 x 2 3/4", Gr 5

Capscrew

3шт.

59

19-77

NUT,5/16"-18, G5

3шт.

60

31-462

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

Fitting (8) qty 5 on later models) (see lower left inset)

10шт.

61

47-4584

KIT

Boot

5шт.

62

32-244

HOSE

(31-1325)

6шт.

Superseded-Old P/N is not used any longer; the new P/N is to be used in ALL cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

63

32-244

HOSE

(31-1340)

4шт.

Superseded-Old P/N is not used any longer; the new P/N is to be used in ALL cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

64

31-620

ADAPTER

Reducer (Later Style)

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

From SN 130-00156 to 130-00178, Ref. 39 had pipe thread instead of straight thread. When a replacement is needed for these units, always order 31-329 (Ref. 38) also. ASN 129-00011 & 130-00210, Refs. 38 & 39 were replaced by Refs. 64 & 65 due to change in the Power Brake Master Cylinder.

1шт.

65

31-561

Adapter (Later Style)

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

From SN 130-00156 to 130-00178, Ref. 39 had pipe thread instead of straight thread. When a replacement is needed for these units, always order 31-329 (Ref. 38) also. ASN 129-00011 & 130-00210, Refs. 38 & 39 were replaced by Refs. 64 & 65 due to change in the Power Brake Master Cylinder.

1шт.

66

60-66

REDUCER

(Later Style)

5шт.

67

31-1415

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Adapter (8) (Later Style)

5шт.

68

32-244

HOSE

10шт.
