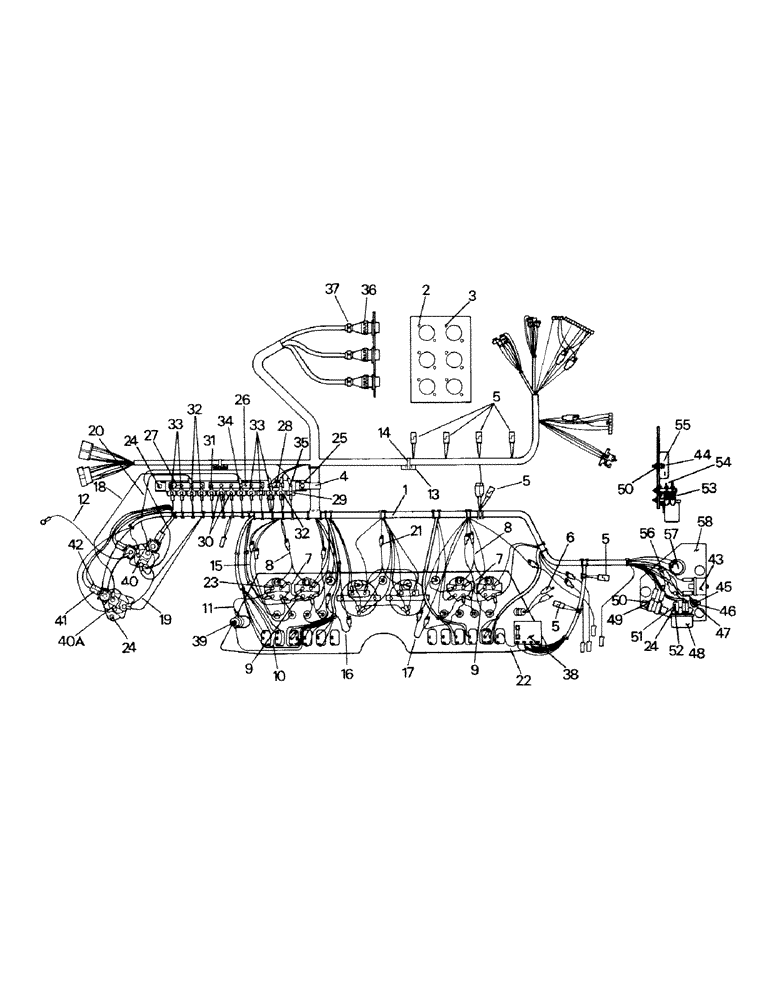

Запчасти Case IH ST450 (02-15) - DASH ELECTRICAL, 6 PLUG BULKHEAD STYLE CONNECTORS (06) - ELECTRICAL

1

47-4704

Wire Harness, Cab & Inst (Replaces TX-4704)

1шт.

2

19-273

Machine Screw Slotted Flat Hd, #5-40 x 1/2", G5

12шт.

3

19-150

NUT,#5 - 40

12шт.

4

31-2160

CLAMP

(22-646)

1шт.

Superseded, Old P/N is not used any longer; the new p/N is to be used in ALL CASES. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

5

22-738

DIODE

7шт.

6

1-7128

IGNITION SWITCH

Switch Assy, (3408 Engine)

1шт.

7

1-3934

HARNESS

Wire, Gauge Gnd to Gauge Gnd

2шт.

8

1-3925

SOCKET

Wire & Socket Assy

2шт.

9

1-3933

HARNESS

Wire Assy, Gauge to Gauge Ign

2шт.

10

22-795

HARNESS

Wire, master Switch to Field & Road Light Switch

1шт.

11

22-802

CABLE

Wire, Gnd

1шт.

12

1-3927

HARNESS

Wire, Solenoid Gnd

1шт.

13

22-823

MOUNT

Mount, Cable Tie

3шт.

14

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

3шт.

15

TX-4687

Wire & Socket Assy

1шт.

16

TX-4686

Wire & Socket Assy

1шт.

17

TX-4688

Wire & Socket Assy

1шт.

18

22-820

ELECTRICAL WIRE

Wire Assy, Circuit

1шт.

19

1-2665

Wire Assy, Circuit, Serial Range: Breaker-Solenoid

1шт.

20

22-797

HARNESS

Wire Assy, Circuit, Serial Range: Breaker-Solenoid

1шт.

21

1-7574

SOCKET

Wire & Socket Assy, Tachometer and Speedometer

1шт.

22

1-3936

Wire Assy, Start Aid Jumper

1шт.

23

19-308

NUT,#10 - 32

8шт.

24

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

Capscrew Incl. Ref 25-35

9шт.

25

47-4177

BREAKER

Assy

1шт.

26

22-675

BAR

Buss Bar, 6 Hole

1шт.

27

47-4176

BAR

Buss Bar, 4 Hole

1шт.

28

22-677

BAR

Buss Bar, 2 Hole

1шт.

29

22-809

BREAKER

5 AMP

1шт.

30

22-669

BREAKER

6 AMP

2шт.

31

22-670

BREAKER

10 AMP

1шт.

32

22-671

BREAKER

15 AMP

3шт.

33

22-672

BREAKER

20 AMP

5шт.

34

22-673

BREAKER

30 AMP

1шт.

35

19-481

SERRATED NUT

1шт.

36

22-779

PLUG

6шт.

SEE FIG. 2-21 FEMALE

1шт.

Opposite plug p/n 22-780

1шт.

1-1632

ELEC. TERMINAL PIN,Male, 14 - 16

Male Terminal (14-16 ga)

1шт.

1-4137

ELEC. TERMINAL PIN,8 - 10

Male Terminal (8-10 ga)

1шт.

37

22-781

CLAMP

Plug Connector

6шт.

38

1-5956

SWITCH

Relay, Murphy

1шт.

39

19-282

LOCK NUT

1шт.

40

22-792

SWITCH

Solenoid

1шт.

40a

20-1411T1

CONNECTION,ELECTRIC

Solenoid

1шт.

19-98

NUT,1"-14, G5

2шт.

19-116

LOCK WASHER,5/16"

5/16"

2шт.

19-481

SERRATED NUT

Kep Nut (hardware used w/40 & 40A, not shown)

2шт.

41

22-108

FLASHER UNIT

Flasher

3шт.

42

22-112

BRACKET

Flasher

3шт.

1-5972

Component Assy, consists of Ref. 43-58

1шт.

43

22-690

BUZZER

1шт.

44

19-5390

Machine Screw

1шт.

45

1-3862

RECTIFIER

Assy

1шт.

46

1-3859

INSULATOR

Rectifier

1шт.

47

19-5379

NUT

1шт.

48

1-3861

RELAY

(can be servied w/Ref. 59 plus 35-1578T91 Relay Adapter Kit, Ref. 60)

1шт.

19-3041

SCREW,Hex Flg, #8 - 32 x 1 1/2", Gr 2

Machine Screw

2шт.

50

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

3шт.

51

19-115

LOCK WASHER,1/4"

1/4"

2шт.

52

19-76

NUT,1/4"-20, G5

2шт.

53

1-3858

RESISTOR

5 OHM

1шт.

54

1-3857

RESISTOR

2 OHM

1шт.

55

19-5378

WASHER

1шт.

56

1-3860

ELECTRICAL WIRE

Wire Assy, Rectifier

1шт.

57

1-1300

BUZZER

Alarm

1шт.

58

1-5973

Bracket, Component

1шт.

59

1-7877

RELAY

(see Ref. 48)

1шт.

60

35-1578T91

RELAY

Adapter Kit

1шт.

20-2131T1

HARNESS

Relay Harness

1шт.

22-738

DIODE

1шт.

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

19-297

LOCK WASHER,#10

#10

1шт.

19-567

NUT,#10-24

1шт.
