Запчасти Case IH ST450 (02-14) - CAB FRONT ELECTRICAL (06) - ELECTRICAL

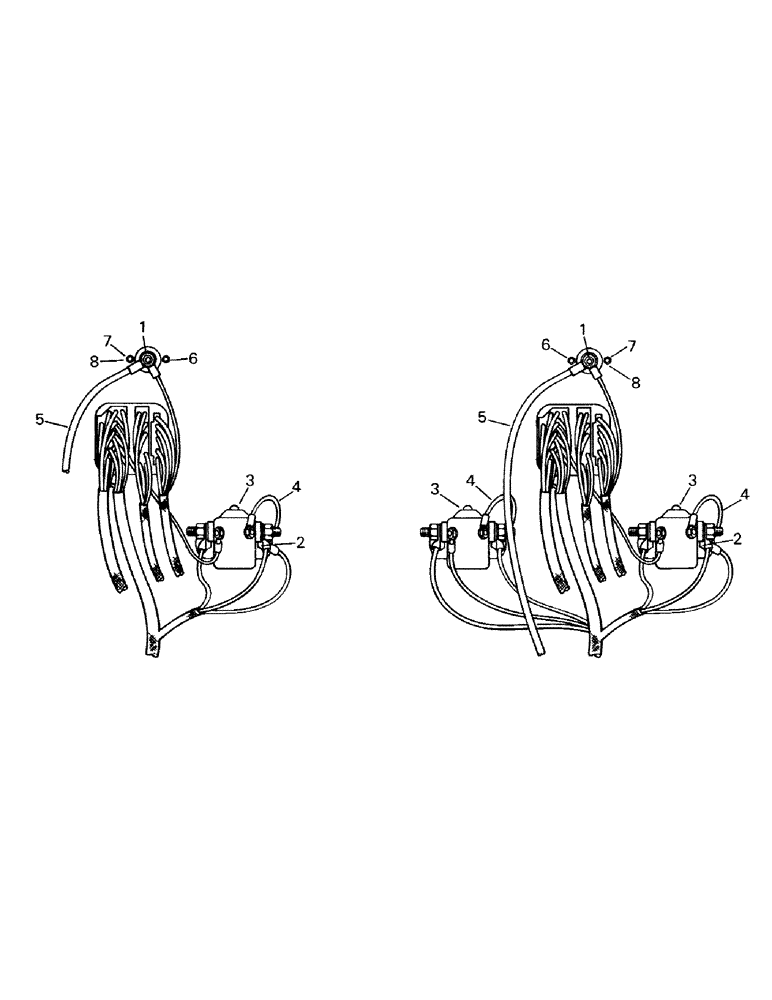

Схема запчастей Case IH ST450 - (02-14) - CAB FRONT ELECTRICAL (06) - ELECTRICAL
3
8
3
8
4
7
4
5
6
2
1
5
3
1
7
6
2
4

Артикул

Название

Примечание

Количество

1

20-1150T1

BLOCK

Junction Block

1шт.

2

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Tapping Screw

1шт.

3

20-1608T1

SOLENOID

(06-1496)

1/2шт.

Superseded, Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

4

20-1198T1

ELECTRICAL WIRE

, Serial Range: Wire-Solenoid-Ground

1/2шт.

5

1-8773

CABLE

Battery to Junction Block

1шт.

6

436751

SCREW,Slotted Pan Hd, #10-32 x 5/8"

2шт.

7

19-308

NUT,#10 - 32

2шт.

8

19-297

LOCK WASHER,#10

#10

2шт.

Выбрано товаров: 9
