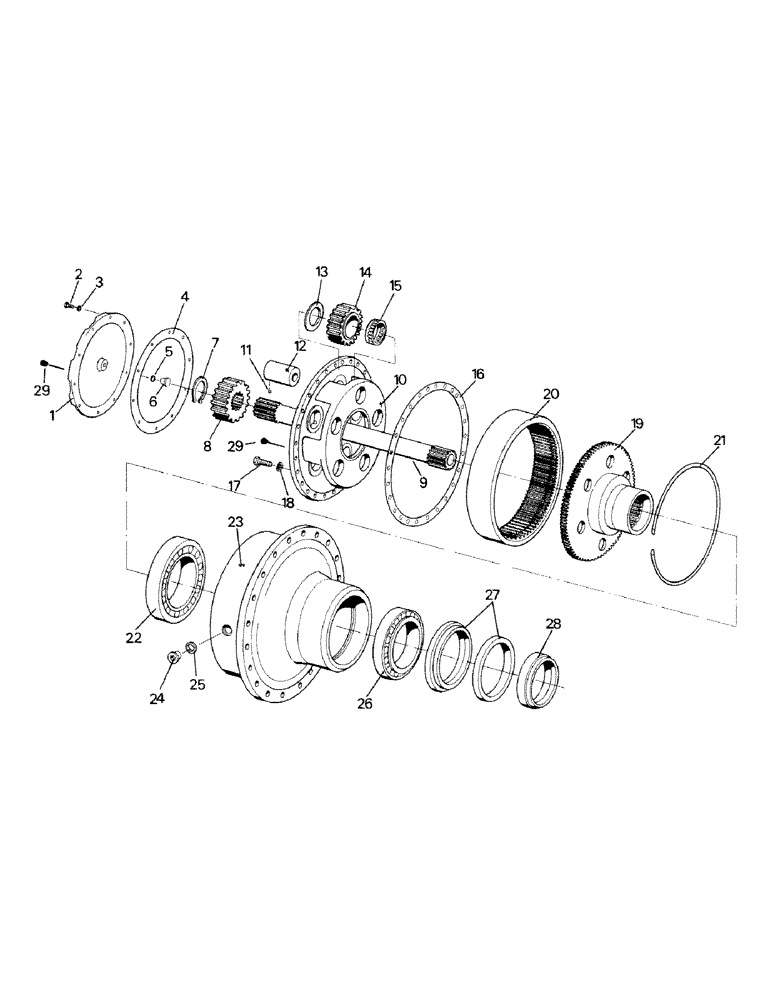

Запчасти Case IH ST450 (04-26) - PLANETARY, K-594.05/15, BSN BREAKS ST 450 129-01502 AND ST 470 130-01517 (04) - Drive Train

1

1-6765

End Cover

2шт.

2

1-6766

CAPSCREW,Hex, M10 x 1.5 x 20mm, Gr 10.9

20шт.

3

16-1633

SPRING WASHER

Lock Washer

20шт.

4

1-6767

SEAL

2шт.

5

16-1625

SHIM

1шт.

6

1-6768

PIN

Thrust Pin

2шт.

7

1-6772

RING, SNAP

Retainer Ring

2шт.

8

1-6773

SUN GEAR

2шт.

9

1-6774

Axle Shaft, Outer (865 mm)

1шт.

1-6775

Axle Shaft, Outer (995 mm)

1шт.

1-6776

Planet Carrier Assy, Outer, consists of Ref. 10-14

2шт.

10

1-6777

Planet Carrier, Outer

2шт.

11

16-1607

BALL

Steel Ball

10шт.

12

1-6778

PIN

Planet Pin

10шт.

13

1-6779

SPACER

Ring

20шт.

14

1-7022

GEAR

Planet Gear, Outer

10шт.

15

1-7155

NEEDLE BEARING

Needle Roller Bearing

20шт.

16

1-7156

SEAL

2шт.

17

1-7157

CAPSCREW,Hex, M16 x 1.5 x 50mm, Gr 10.9

52шт.

18

1-7158

WASHER

Lock Washer

52шт.

19

1-7159

HUB

Ring Gear Hub

2шт.

20

1-7160

RING

Gear

2шт.

21

1-7161

SNAP RING

2шт.

22

1-7162

BEARING

Tapered Roller Bearing

2шт.

23

1-7163T1

HUB

Wheel Hub (01-7163) (B)

2шт.

PLUG WAS REMOVED IN 1979

1шт.

Superseded, Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

24

16-1502

PLUG

Magnetic Plug

2шт.

25

16-1501

SEALING RING

2шт.

26

16-1532

TAPERED BEARING,170 mm ID x 260 mm OD x 57 mm

2шт.

27

1-7164

SEALING RING

Seal & Retainer

2шт.

28

1-7165

OIL SEAL

Shouldered Ring

2шт.

29

90-2523T1

PLUG

4шт.
