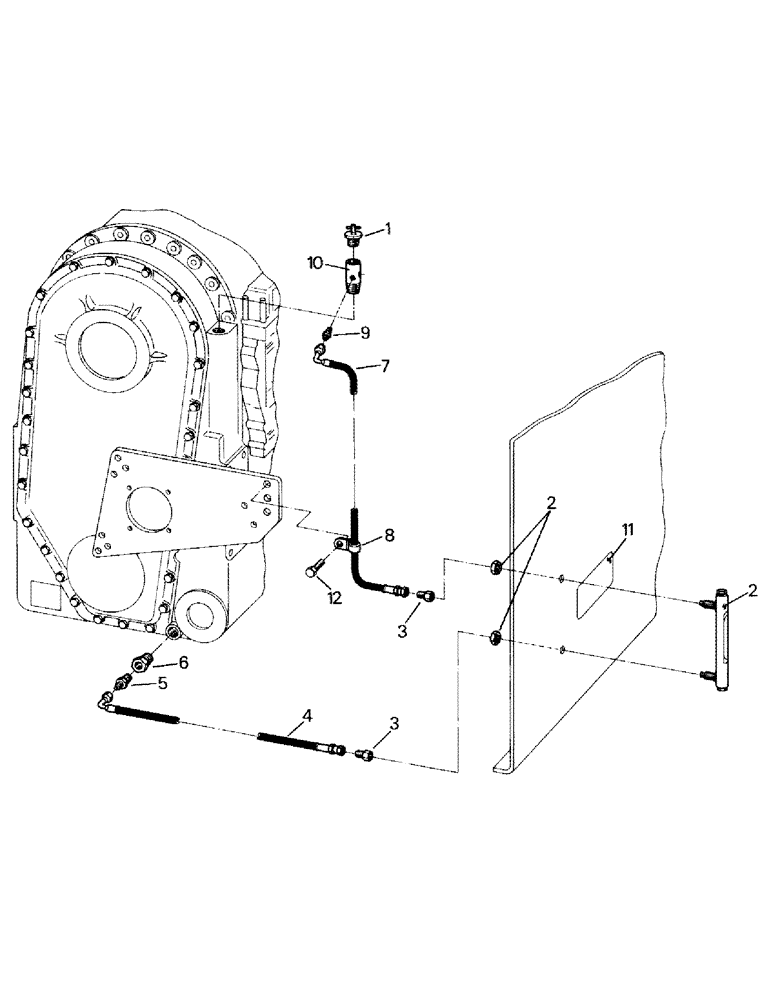

Запчасти Case IH ST450 (04-20) - TRANSMISSION SIGHT GAUGE MOUNTING (04) - Drive Train

1

90-2245T1

PLUG

1шт.

2

90-2244T1

GAUGE

Oil Level

1шт.

3

31-1593

ADAPTER

2шт.

4

31-1576

HOSE

Assembly

1шт.

5

19-1101

HYD CONNECTOR,7/16" - 20, 37 Degree x 3/8" - 18, NPTF

Adapter

1шт.

6

31-73

BUSHING

Reducer

1шт.

7

18-1576

HOSE

Assembly

1шт.

8

22-611

CLIP,ELECTRICAL

Clip

1шт.

9

31-1028

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

Adapter

1шт.

10

90-2246T1

ADAPTER

1шт.

11

90-2247T1

DECAL

Oil Level

1шт.

12

19-60

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Capscrew, 5/8 x 2 UNC

1шт.
