(04-15) - ENGINE COOLANT EXCHANGE SYSTEM, CUMMINS ENGINE

Запчасти Case IH ST450 (04-15) - ENGINE COOLANT EXCHANGE SYSTEM, CUMMINS ENGINE (04) - Drive Train

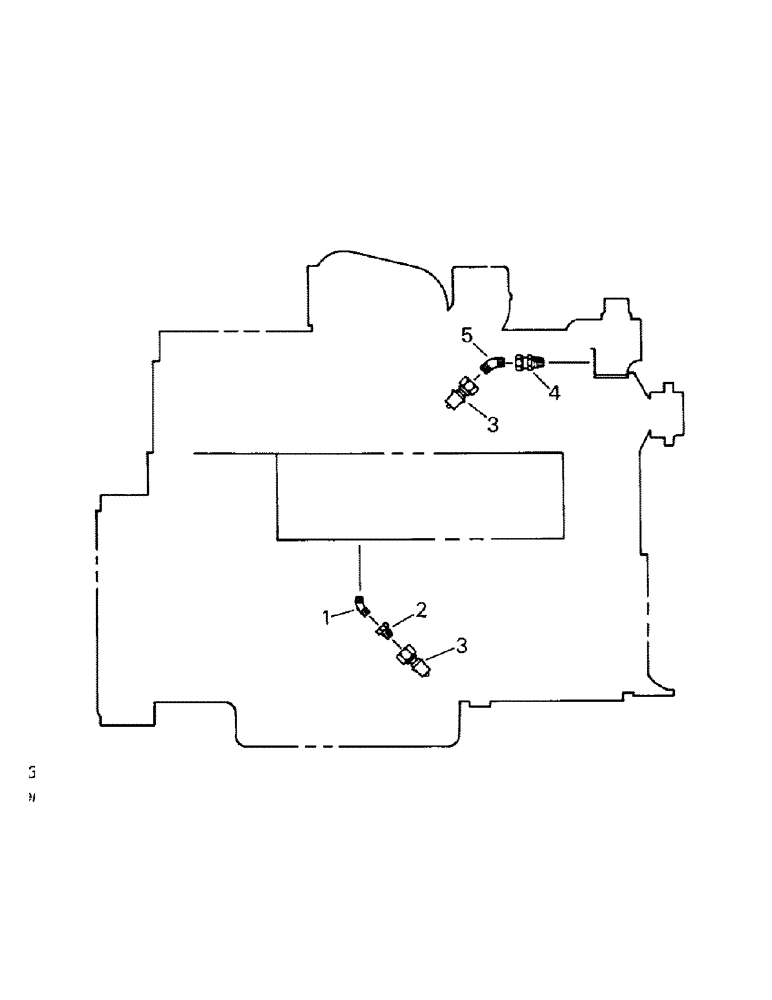

Схема запчастей Case IH ST450 - (04-15) - ENGINE COOLANT EXCHANGE SYSTEM, CUMMINS ENGINE (04) - Drive Train
3
4
1
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31-1591

ELBOW,45 Degree, 1/4"-18 Male

1шт.

2

1-2349

REDUCER,1/2"-14 Male NPTF x 1/4"-18 Female NPTF

1шт.

3

50-1172T1

NIPPLE, LUBE

Nipple

2шт.

4

31-1592

Adapter

1шт.

5

31-1573

Elbow 45º, 1/2"-14 Male

1шт.
