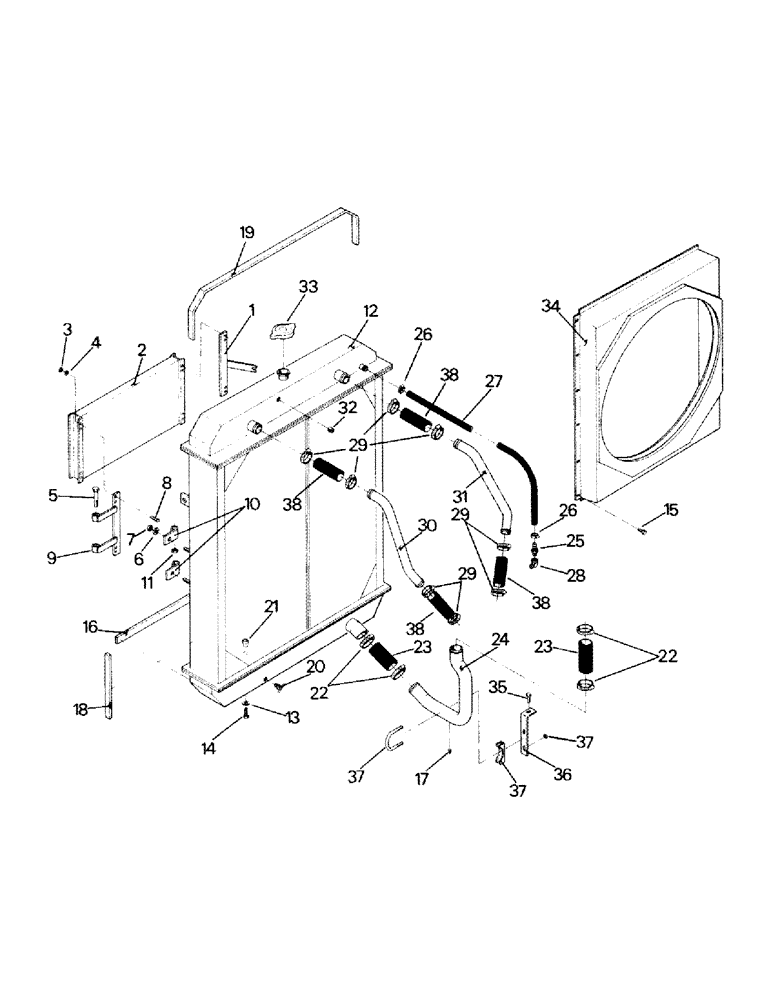

Запчасти Case IH ST450 (04-13) - RADIATOR AND MOUNTING, CAT ENGINE (04) - Drive Train

1

47-4527

LATCH

Cooler Latch

1шт.

2

2-3370T1

CONDENSER

(25-196)

1шт.

Radiator Shroud P/Ns are found on Fig. 4-12 (KTA 1150 Engine L and Figure 4-13 (3408 Engine)

1шт.

3

19-481

SERRATED NUT

Kep Nut

8шт.

4

19-603

LOCK WASHER,Ext Tooth, #10

Washer (not used on later models)

8шт.

5

19-133

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Capscrew

2шт.

6

19-107

WASHER

2шт.

7

19-78

SPECIAL NUT,3/8"-16, G5

2шт.

8

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

Machine Screw

8шт.

9

47-4526

HINGE

Cooler Hinge

1шт.

10

51-440

HINGE

2шт.

11

232-4136

LOCK NUT,3/8"-16, GC

2шт.

12

Radiator (see Fig. 4-14)

1шт.

13

19-806

WASHER

Rubber Mount Washer

2шт.

14

19-47

BOLT,1/2" - 13 x 2 1/2", Gr 5

Capscrew

2шт.

15

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Capscrew

11шт.

16

47-4760

Foam

1шт.

17

31-37

PLUG

Pipe Plug

1шт.

18

1-8613

Foam

2шт.

19

1-8614

Foam

1шт.

20

31-157

COCK, DRAIN

Drain Cock

1шт.

21

47-4208

RUBBER BUSHING

Rubber Mount

2шт.

22

32-21

HOSE CLAMP,#64, 3.56/4.50 Type F Worm

Clamp

4шт.

23

31-1204

HOSE

2шт.

24

1-7852

Tube 3.5" OD

1шт.

25

31-318

HOSE

Barbed Fitting

1шт.

26

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

Clamp

2шт.

27

31-1505

HOSE,1.00" ID x 38.00"

1шт.

Radiator Shroud P/Ns are found on Fig. 4-12 (KTA 1150 Engine L and Fig. 4-13 (3408 Engine)

1шт.

28

31-21

ELBOW

Street Elbow

1шт.

29

32-23

CLAMP,#44, 2.31/3.25 Type F Worm

8шт.

30

1-7850

Tube

1шт.

31

1-7851

Tube

1шт.

32

31-535

PLUG

1шт.

33

10-21

CAP

Radiator Cap

1шт.

34

1-7853

Shroud

1шт.

35

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Capscrew

1шт.

36

1-8345

Bracket

1шт.

37

7-26

CLAMP

1шт.

38

31-1206

HOSE

4шт.

39

19-464

CABLE TIE

Ty Rap (not shown)

1шт.
