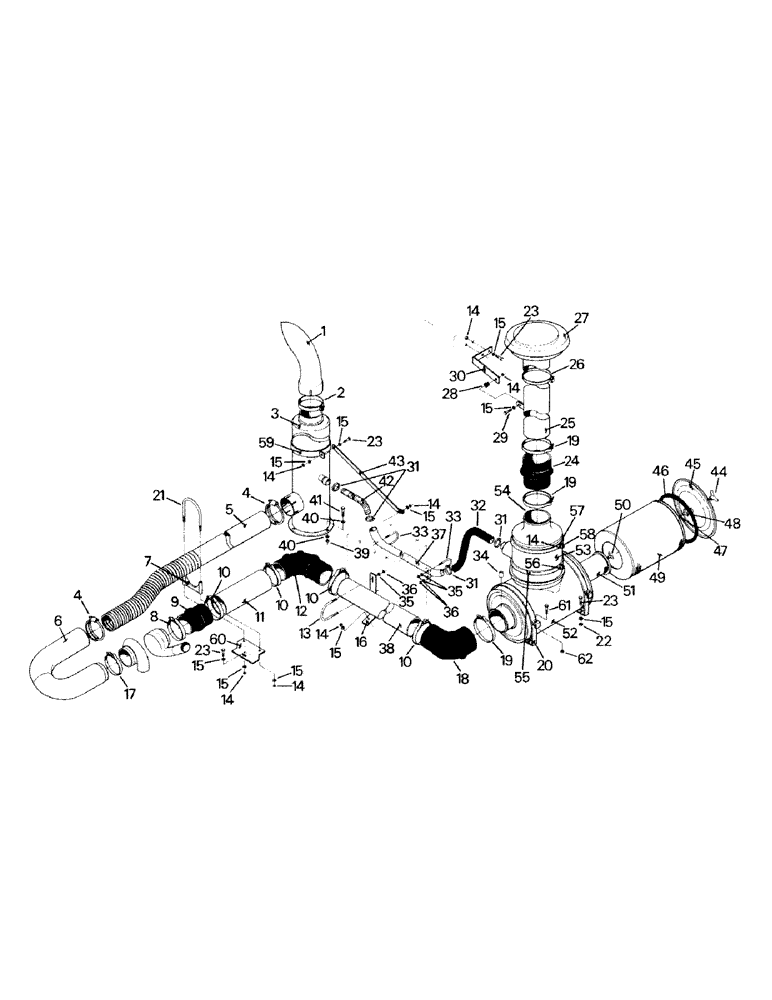

Запчасти Case IH ST450 (04-08) - INTAKE AND EXHAUST SYSTEM, CUMMINS ENGINE (04) - Drive Train

1

45-255

MUFFLER

Exhaust Stack

1шт.

2

32-341

CLAMP

1шт.

3

90-2240T91

MUFFLER

(incl Ref. 59) (47-4275)

1шт.

Superseded-Old P/N is not used any longer; the new P/N is to be used in ALL cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

Extra Long Life

1шт.

Can be serviced with 90-2239T1 which does not use the brace, Ref. 43.

1шт.

4

31-1537

MOUNTING CLIP

Clamp (32-315)

2шт.

Superseded-Old P/N is not used any longer; the new P/N is to be used in ALL cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

5

47-4727

TUBE

1шт.

6

47-4357

ELBOW

1шт.

7

32-323

STIRRUP

Saddle (when used with Ref. 60, replaces P/N 47-4726

1шт.

Superseded-Old P/N is not used any longer; the new P/N is to be used in ALL cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

8

32-133

CLAMP,#156, 5.75"-6.06", T-Bolt

1шт.

9

9-76

HOSE,6.00" ID x 6.00"

1шт.

10

32-129

CLAMP,#172, 6.25"-6.56", T-Bolt

4шт.

11

47-4522

PIPE, EXHAUST SYSTEM

Tube

1шт.

12

9-22

ELBOW

Rubber Elbow

1шт.

13

44-28

U-Bolt

1шт.

14

19-78

SPECIAL NUT,3/8"-16, G5

9шт.

15

19-107

WASHER

12шт.

16

47-4546

Bracket

1шт.

17

31-1324

CLAMP

1шт.

18

47-3309

ELBOW

Rubber Elbow

1шт.

19

32-287

CLAMP,#212, 7.50"-7.71", T-Bolt

3шт.

20

9-25

BAND

Mounting Band (inc Refs. 61 & 62)

2шт.

21

32-322

U-BOLT,3/8" - 16 x 6.62"

1шт.

22

232-4136

LOCK NUT,3/8"-16, GC

4шт.

23

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew

8шт.

24

9-73

HOSE

Hump Hose

1шт.

25

47-4528

TUBE

Inlet Stack

1шт.

26

1-2634

CLAMP

1шт.

27

9-120

CAP ASSY.

Air Inlet Hood, I.D. 7"

1шт.

28

1-3528

MOUNTING PARTS

Rubber Mount

1шт.

29

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

Capscrew

1шт.

30

47-3855T1

BRACKET

1шт.

31

32-137

CLAMP,#38, 2.06"-2.37", T-Bolt

4шт.

32

31-1199

Hose

1шт.

33

19-1011

U-Bolt

2шт.

34

29-111

DIPSTICK

Condition Indicator

1шт.

35

19-700

WASHER,5/16"

6шт.

36

19-77

NUT,5/16"-18, G5

6шт.

37

47-3817

AIR TUBE

Aspirator Tube

1шт.

38

47-4374

TUBE

1шт.

39

19-79

NUT,7/16"-14, G5

3шт.

40

19-108

WASHER,7/16"

6шт.

41

19-32

BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd

Capscrew

3шт.

42

32-1002

TUBE,2" ID, 2.25" OD, 19" Length

Flex Tube

1шт.

43

47-4365

BRACKET

1шт.

1-3897

AIR CLEANER

Assy

1шт.

44

45-219

NUT

Assy

1шт.

7-1008

COVER

Assy

1шт.

45

NSS

NOT SOLD SEPARAT

Cover

1шт.

46

7-1012

CATALOG

Gasket

1шт.

47

45-216

CLIP,ELECTRICAL

Clip

1шт.

48

45-218

NUT

Assy

1шт.

49

1-3898

FILTER

Primary Element

1шт.

Extra Long Life

1шт.

1-3898S1

FILTER

Primary Element

1шт.

Standard

1шт.

50

7-1006

NUT

Assy

1шт.

51

1-3899

ELEMENT

Safety Element

1шт.

52

2-1195

AIR INTAKE TUBE

Body Assy (incl Refs. 44-51)

1шт.

53

7-1009

PRECLEANER

(incl Refs. 54, 58 & 14)

1шт.

54

1-2623

ADAPTER

Assy

1шт.

55

1-2625

CLAMP

Assy (incl Ref. 56)

1шт.

56

19-1123

SCREW,Sl Pan Hd, 3/8" - 16 x 2 3/4"

Machine Screw

2шт.

57

1-2624

O-RING

1шт.

58

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Capscrew

1шт.

59

31-1549

CLAMP

1шт.

60

90-1446T1

BRACKET

(when used w/Ref. 7, replaces P/N 47-4726

1шт.

Superseded-Old P/N is not used any longer; the new P/N is to be used in ALL cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

61

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

Capscrew

2шт.

62

19-508

LOCK NUT

Lock Nut

2шт.
