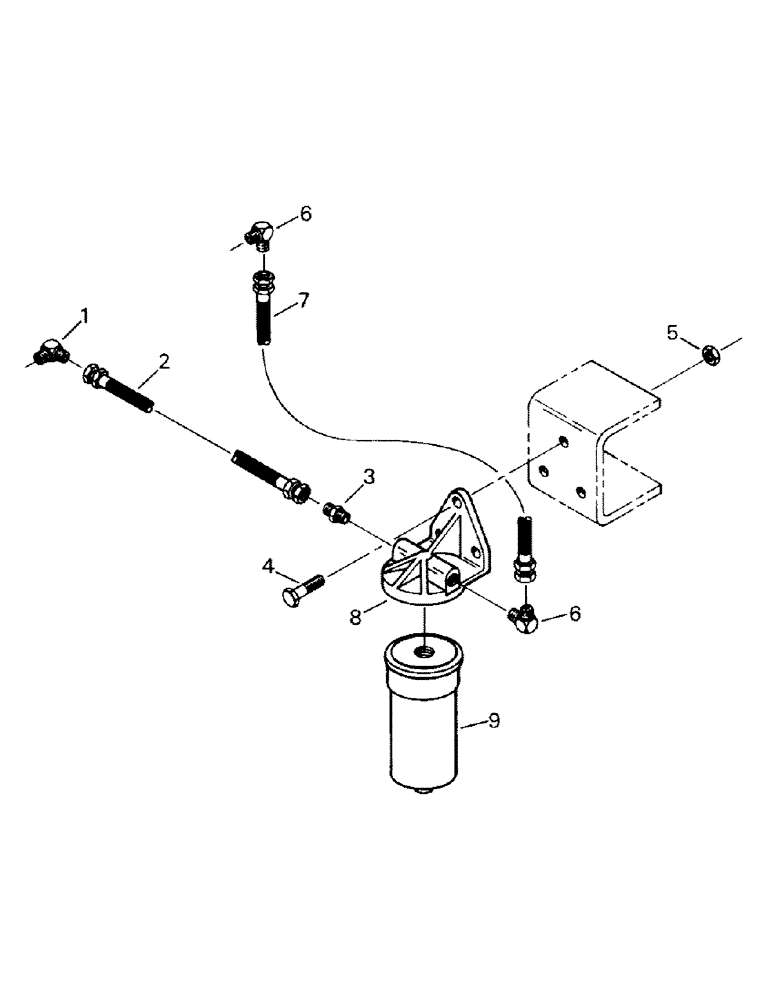

Запчасти Case IH ST450 (04-07) - LUBE FILTER & MOUNTING, CUMMINS ENGINE (04) - Drive Train

1

31-528

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

1шт.

2

31-1201

HOSE

1шт.

3

31-268

ADAPTER,9/16"-18, 37 Degree x 3/8"-18, NPTF

Fitting

1шт.

4

19-33

BOLT,7/16" - 14 x 1 1/4", Gr 5

Capscrew

3шт.

5

231-4117

LOCK NUT,7/16"-14, GB

3шт.

6

31-269

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

2шт.

7

1-421

HOSE

1шт.

8

90-1157T1

FILTER

Head

1шт.

Superseded, Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

9

90-1158T1

ENGINE OIL FILTER

Element, Filter

1шт.

1-7818

CABLE

Ty Rap (not shown)

3шт.
