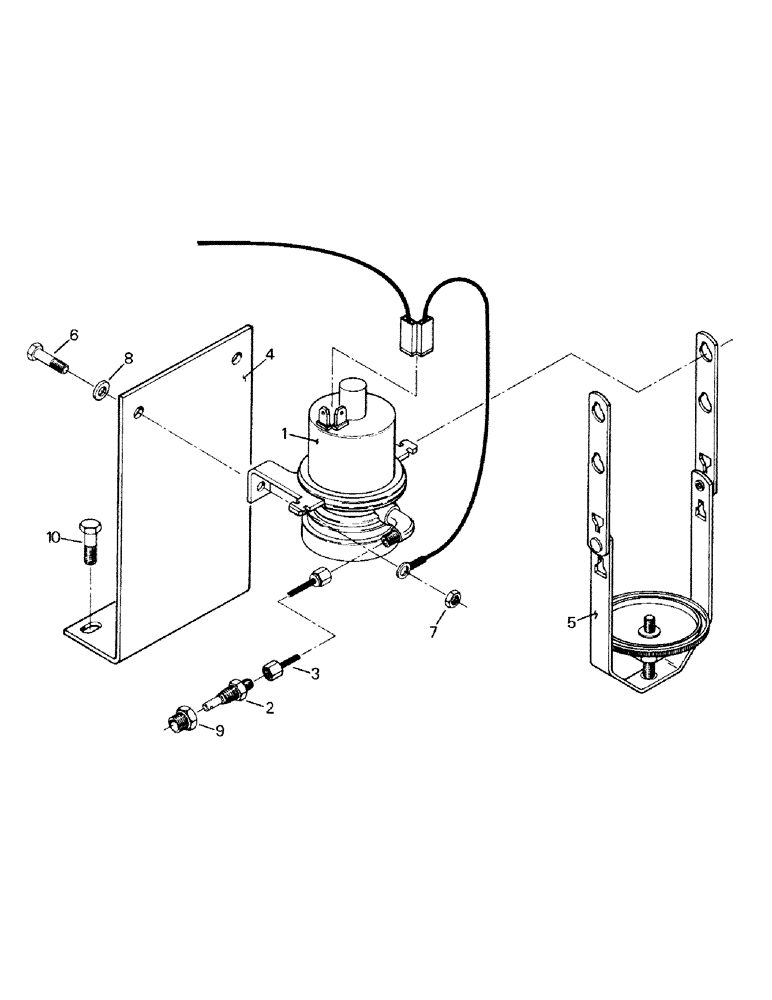

Запчасти Case IH ST450 (04-05) - ETHER START AID, CAT ENGINE (04) - Drive Train

1

6-1600

SOLENOID

(includes Ref. 5)

1шт.

2

6-1603

JET

Atomizer

1шт.

3

31-1096

TUBE,0.73" ID, 0.125" OD, 18" Length

Tubing

1шт.

4

90-1761T1

Bracket

1шт.

5

1-1388

BAIL

Assembly

1шт.

6

19-211

CAPSCREW,1/4" - 20 x 1 1/4", Gr 5

1/4 x 1-1/4 UNC

2шт.

7

19-76

NUT,1/4"-20, G5

1/4 UNC

2шт.

8

19-223

WASHER,1/4"

1/4

2шт.

9

31-15

REDUCER,1/4"-18 Male NPTF x 1/8"-27 Female NPTF

1шт.

10

NSS

NOT SOLD SEPARAT

Capscrew (use existing hardware to attach, Serial Range: bracket-engine)

2шт.

11

1-1392

FLUID

Ether Start (Cylinder not shown)

1шт.
