Запчасти Case IH ST450 (04-04) - ETHER START AID, CUMMINS ENGINE (04) - Drive Train

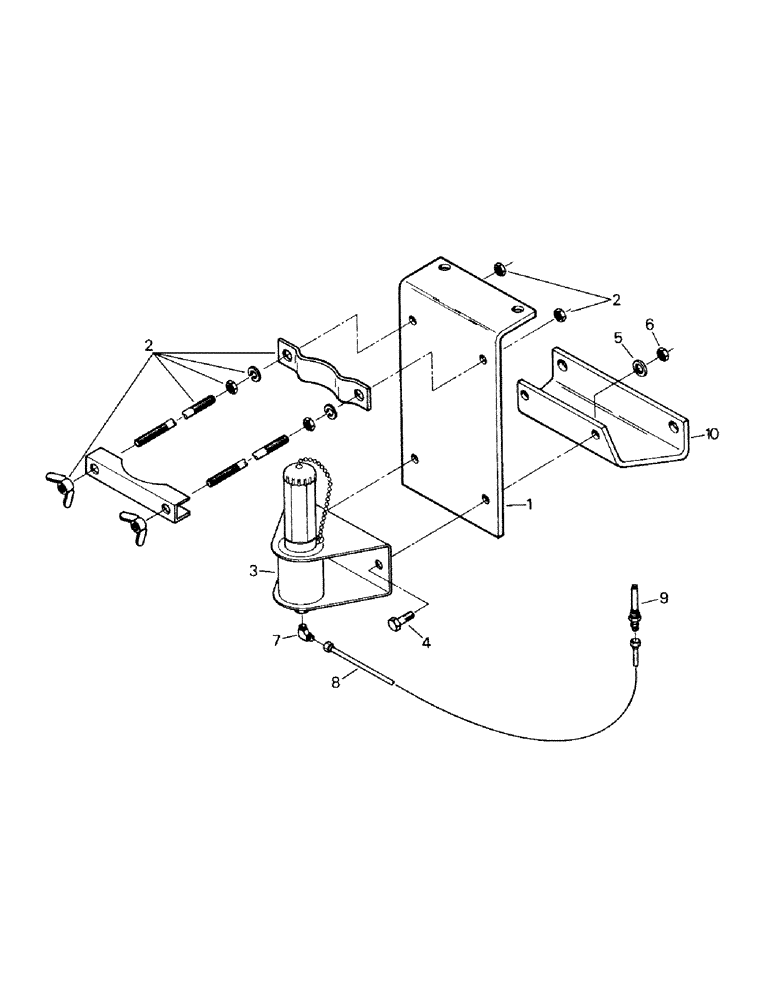

Схема запчастей Case IH ST450 - (04-04) - ETHER START AID, CUMMINS ENGINE (04) - Drive Train
3
8
2
7
6
5
9
10
2
1
4

Артикул

Название

Примечание

Количество

1

47-4556

BRACKET

1шт.

2

31-1470

CLAMP

Assy (01-8560)

1шт.

Superseded-Old P/N is not used any longer; the new P/N is to be used in ALL cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

3

20-1346T1

VALVE

Solenoid Valve

1шт.

Can be serviced with 01-8559 which has no terminals on the wire ends. Early tractors did not use same terminals as used on 20-1346T1.

1шт.

4

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Capscrew

2шт.

5

19-223

WASHER,1/4"

2шт.

6

19-76

NUT,1/4"-20, G5

2шт.

7

1-8564

FITTING

Elbow

1шт.

8

31-1347

TUBE,0.125" OD, 24" Length

Tubing

1шт.

9

6-1603

JET

Atomizer

1шт.

10

90-2933T1

BRACKET

(not on early tractors, but can be added to help avoid breakage to Ref. 1)

1шт.

11

47-4572

CYLINDER

Ether Start Fluid (cylinder not shown)

1шт.

Выбрано товаров: 13
