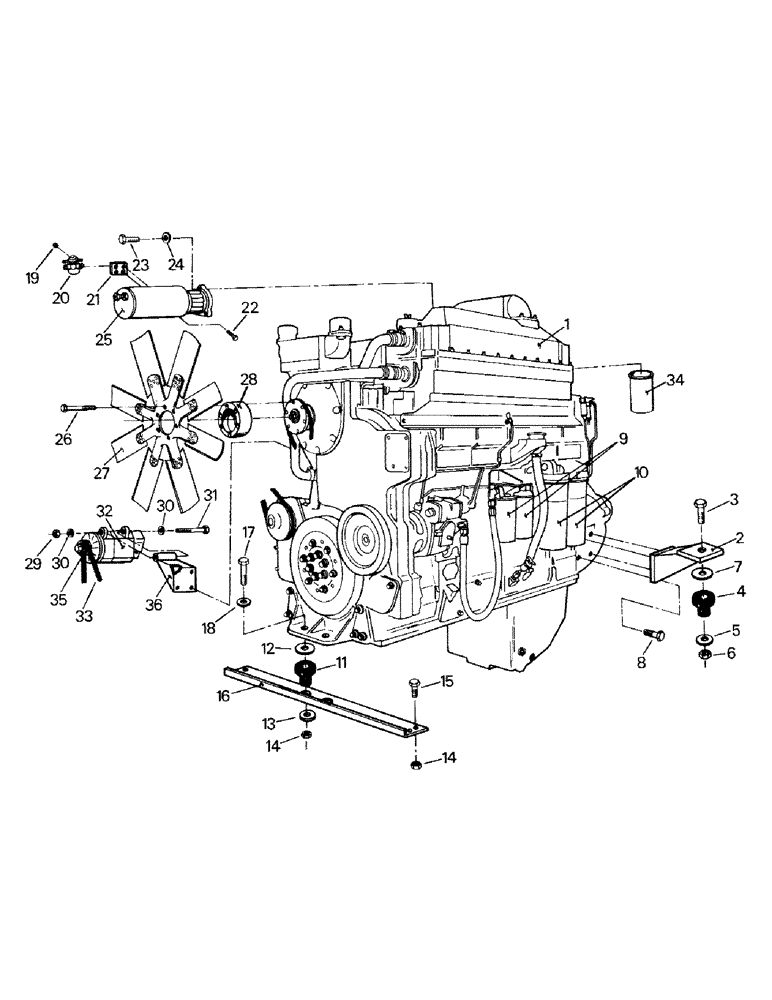

Запчасти Case IH ST450 (04-01) - ENGINE AND ATTACHING PARTS, CUMMINS ENGINE (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
47-4061
Engine, Cummins KTA 1150 (470 HP)
1шт.
90-3905T1
Engine, Cummins KTA 1150 (525 HP)
1шт.
2
47-3075
MOUNTING PARTS
Engine Mount
2шт.
3
19-566
BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5
Capscrew
2шт.
4
47-4172
SHOCK ABSORBER
Rubber Mount
2шт.
5
19-112
WASHER,3/4"
2шт.
6
19-84
NUT,3/4"-10, G5
2шт.
7
19-5518
WASHER
Rubber Mount Washer
2шт.
8
19-1106
BOLT,Hex, 5/8" - 11 x 1.25, Gr 8, Full Thd
Capscrew
8шт.
9
28-35
FUEL FILTER
2шт.
11
24-231
RUBBER MOUNTING
Rubber Mount
2шт.
12
51-128
WASHER
Rubber Mount Washer
2шт.
13
19-408
WASHER
2шт.
14
19-83
NUT,5/8"-11, G5
6шт.
15
19-57
BOLT,5/8" - 11 x 1 3/4", Gr 5
Capscrew
4шт.
16
1-8395
Cross Member
1шт.
17
19-256
BOLT,Hex, 5/8" - 11 x 4", Gr 5
Capscrew
2шт.
18
19-711
WASHER,5/8", SAE
2шт.
19
19-76
NUT,1/4"-20, G5
2шт.
Refs. 19-22 were moved to the front of the cab on later models.
1шт.
20
20-1608T1
SOLENOID
(06-1496)
1шт.
Superseded, Old P/N can be used for all models, but order new P/N when stock is depleted.
1шт.
21
55-185
Bracket
1шт.
Refs. 19-22 were moved to the front of the cab on later models.
1шт.
22
19-1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
Capscrew
2шт.
Refs. 19-22 were moved to the front of the cab on later models.
1шт.
23
19-907
12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8
Capscrew
3шт.
24
19-912
WASHER
3шт.
25
Starter (see Fig. 2-7)
1шт.
26
442734
CAPSCREW,1/2" - 13 x 4", Gr 8
6шт.
27
47-4115
FAN
1шт.
28
47-4330T1
SPACER
Fan Spacer (47-4330) (B)
1шт.
29
19-81
NUT,1/2"-13, G5
1шт.
31
19-942
BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 8
Capscrew
1шт.
32
47-4089
ALTERNATOR
(see figure 2-11)
1шт.
33
1-3983
V-BELT,0.70" W x 36.00" L
Alternator 0.70" W x 36.00" L
1шт.
34
28-31
FILTER
Water Filter
1шт.
1-7834
FILTER
Water Filter (Precharge)
1шт.
35
2-3785T1
PULLEY
Alternator Pulley
1шт.
36
NSS
NOT SOLD SEPARAT
Alternator Mount (supplied with engine)
1шт.
Выбрано товаров: 42
