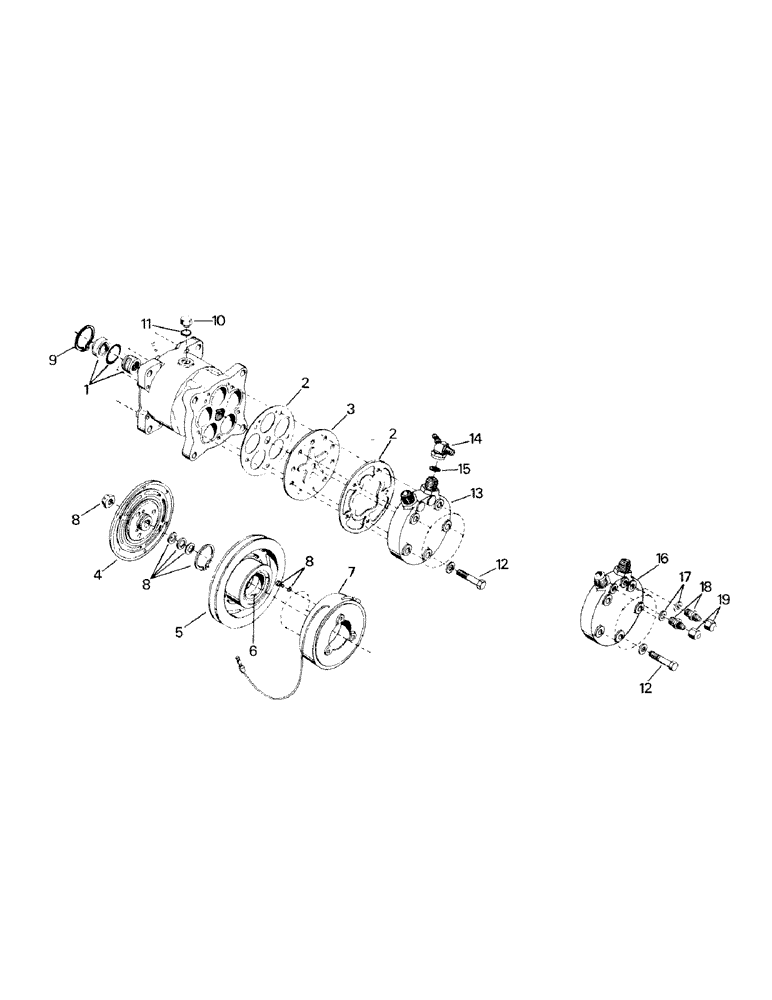

Запчасти Case IH ST450 (03-09) - A/C COMPRESSOR (03) - Climate Control

35-1225T91

COMPRESSOR

SPARE PART Compressor Assy (6" Clutch) (01-3768), consists of Ref. 1-15

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

2-1781

COMPRESSOR

Compressor Assy (6" Clutch), consists of Ref. 1-13

1шт.

84156926R

REMAN-A/C COMPRESSOR

Remanufactured, N.A. Only

1шт.

84156926C

CORE-A/C COMPRESSOR

Return Number, N.A. Only

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

1

25-230

SEAL KIT

Seal Kit

1шт.

2

25-231

GASKET KIT

Gasket Kit

1шт.

3

25-232

SPARE PART Valve Plate (incl Ref. 2)

1шт.

1-3733

LARGE PLATE

PLATE, LARGE Bearing & Plate Pulley Assy, consists of Ref. 4-6

1шт.

1-3761

CLUTCH

Clutch Assy, consists Ref.of 4-8

1шт.

4

NSS

NOT SOLD SEPARAT

Front Plate Clutch

1шт.

5

NSS

NOT SOLD SEPARAT

Pulley (1 groove)

1шт.

6

35-1064

BEARING ASSY

Bearing Kit (incl 01-3760 Dust Shield)

1шт.

7

1-2434

COIL

Coil

1шт.

The coil is standard w/bullet type connector which will not match later tractor harnesses. Either attach the correct terminal or solder wires when necessary.

1шт.

8

1-2433

KIT

Acessory Kit

1шт.

9

1-2435

RING, SNAP

RING SNAP Snap Ring

1шт.

10

A49667

PLUG

Plug

1шт.

11

1-2437

O-RING

O-Ring

1шт.

12

1-2438

SCREW,Hex Flg Hd

Capscrew

5шт.

35-1226T91

CYLINDER HEAD

Head Assy (Later Style) (25-233), consists of Refs. 13-15

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

Compressors are identical except for Cylinder Head, Refs. 13 or 16, either of which are ok to use but require their own specific adapters as shown.

1шт.

13

2-1870

HEAD

Cylinder Head (Later Style)

1шт.

14

2-1778

ADAPTER

Adapter (Discharge Port) (incl Ref. 15)

1шт.

2-1779

ADAPTER

Adapter (Suction Port) (incl Ref. 15)

1шт.

15

31-1423

O-RING

O-Ring

2шт.

16

25-233

HEAD

Cylinder Head (Early Style) (service w/Ref. 13-15)

1шт.

17

1-2439

GASKET

Gasket

2шт.

18

1-2440

FITTING

Service Port

2шт.

19

1-2441

CAP

Cap

2шт.
