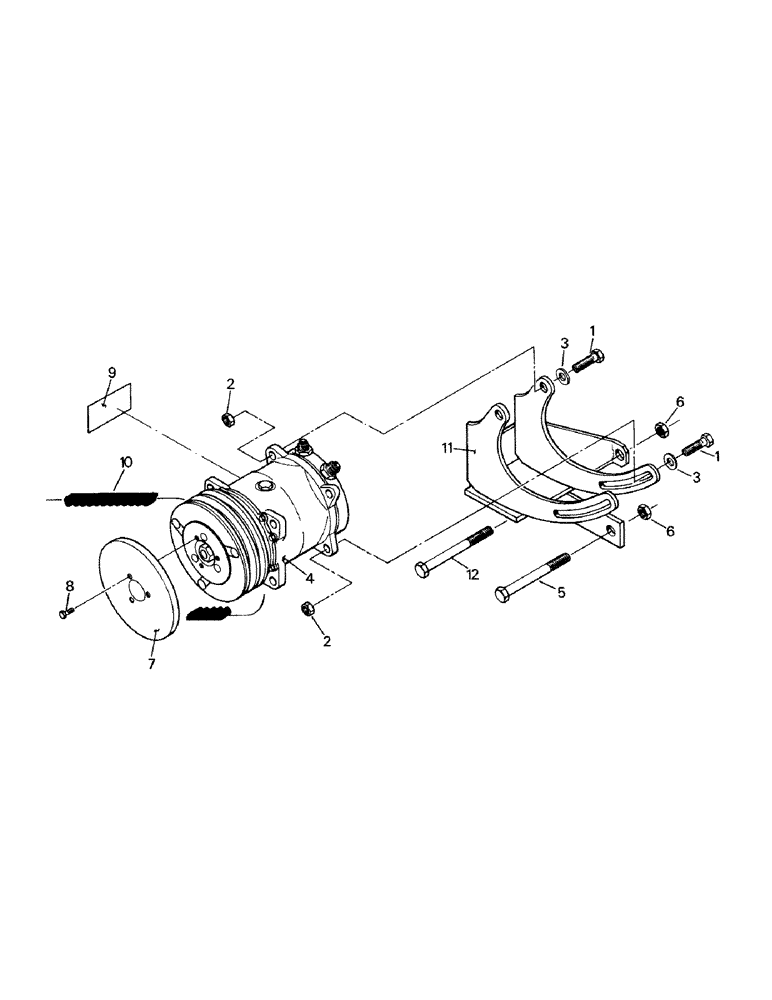

Запчасти Case IH ST450 (03-08) - COMPRESSOR AND MOUNTING, CAT ENGINE (03) - Climate Control

1

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

Capscrew

4шт.

2

19-455

NUT

4шт.

3

19-107

WASHER

4шт.

4

2-1781

COMPRESSOR

(see Fig. 3-9)

1шт.

5

19-744

Capscrew Hex, 1/2"-13 x 4 3/4", G5

1шт.

6

19-82

LOCK NUT

2шт.

7

25-372

SHIELD

Dust Shield

1шт.

8

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

Capscrew

3шт.

9

26-304

DECAL

Compressor Decal

1шт.

10

1-3982

V-BELT,0.69" W x 62.75" L

Compressor 0.69" W x 62.75" L

1шт.

11

1-8587

Compressor Mount

1шт.

12

187152

BOLT,Hex, 1/2" - 13 x 5", Gr 5

Capscrew

1шт.

19-135

CABLE TIE

Ty Rap (not shown)

3шт.
