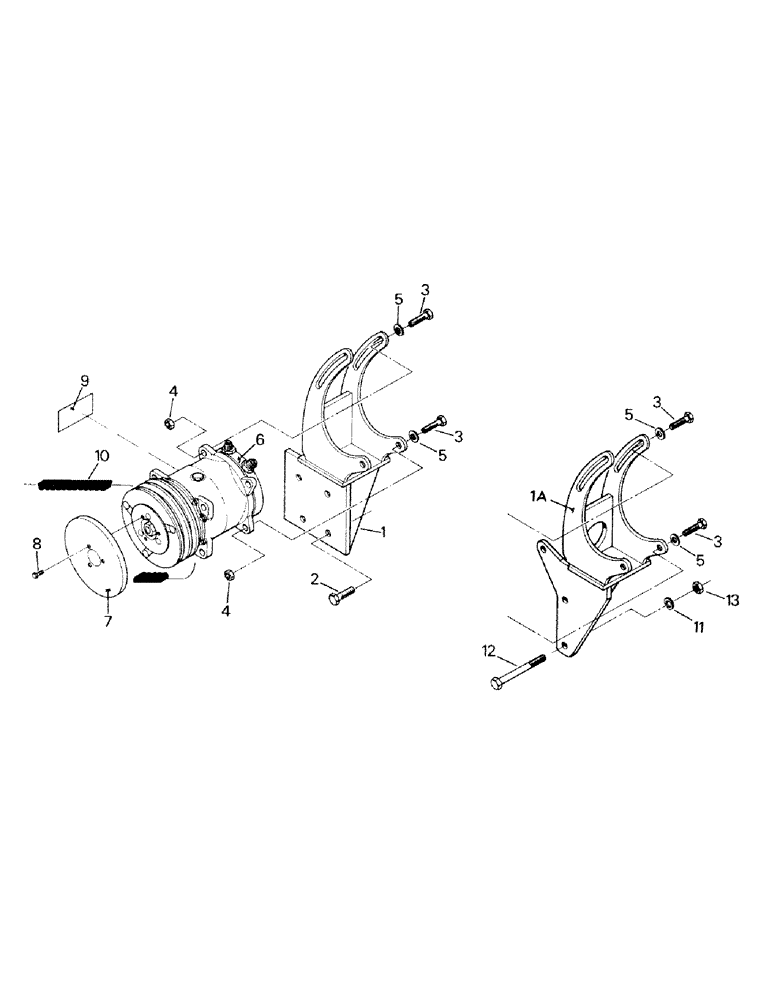

Запчасти Case IH ST450 (03-07) - COMPRESSOR AND MOUNTING, CUMMINS ENGINE (03) - Climate Control

1

47-3545

Compressor Mount (Early Style)

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only. SNB not available.

1шт.

SNB not available

1шт.

1a

1-9402T2

ANCHOR

Compressor Mount (Later Style)

1шт.

Superseded-Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only. SNB not available.

1шт.

SNB not available

1шт.

2

19-32

BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd

Capscrew

4шт.

3

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

Capscrew

4шт.

4

19-455

NUT

4шт.

5

19-107

WASHER

4шт.

6

2-1781

COMPRESSOR

(01-3768) (see Fig. 3-9)

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

7

25-372

SHIELD

Dust Shield

1шт.

8

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

Capscrew

3шт.

9

26-304

DECAL

Compressor Decal

1шт.

10

1-3982

V-BELT,0.69" W x 62.75" L

Compressor 0.69" W x 62.75" L

1шт.

11

19-117

LOCK WASHER,3/8"

3/8"

3шт.

12

456958

BOLT

Capscrew

3шт.

13

19-78

SPECIAL NUT,3/8"-16, G5

3шт.

19-135

CABLE TIE

Ty Rap (not shown)

3шт.
