Запчасти Case IH ST450 (03-04) - A/C PLUMBING, CUMMINS ENGINE (03) - Climate Control

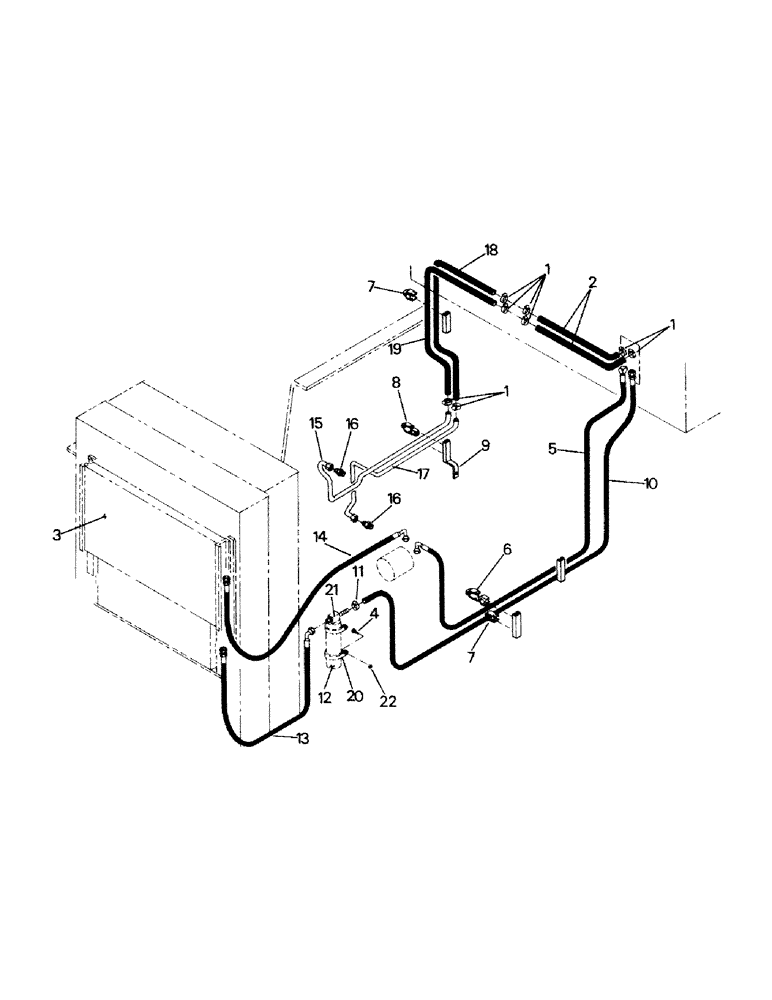

Схема запчастей Case IH ST450 - (03-04) - A/C PLUMBING, CUMMINS ENGINE (03) - Climate Control
13
17
21
15
7
1
18
5
4
9
3
2
16
1
19
8
6
14
11
16
12
7
20
10
22

Артикул

Название

Примечание

Количество

1

25-285

SQUARE NUT,Sq, 5/16"-18

Clamp

8шт.

2

32-335

Hose

2шт.

3

2-3370T1

CONDENSER

(25-196)

1шт.

Supersededm, Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

4

19-4

SCREW,Sltd Truss Hd, #10-24 x 1"

Machine Screw

2шт.

5

25-1028

A/C HOSE

Hose

1шт.

6

31-1187

CLAMP

2шт.

7

31-1212

CLAMP

4шт.

8

31-1368

Clamp (01-5289)

2шт.

Superseded, Old P/N is not used any longer; the new P/N is to be used in ALL Cases. Old P/N should be removed from existing inventory. It is recommended that the old part not bu used under any circumstances.

1шт.

9

47-4441

Clamp Hanger

1шт.

10

25-382

A/C HOSE

Hose

1шт.

11

1-2991

HOSE CLAMP

Clamp

1шт.

12

1-7778

AIR CONDITIONER

Receiver Drier (replaces 25-196, but Ref. 20, 01-8563 is needed also)

1шт.

13

31-1246

HOSE ASSY.

Hose

1шт.

14

31-1245

HOSE

1шт.

15

47-4408

Heater Tube

1шт.

16

31-411

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-14, NPTF

Fitting

2шт.

17

47-4407

Heater Tube

1шт.

18

31-1248

HOSE

1шт.

19

31-1247

Hose

1шт.

20

25-46

CLAMP

(used only with Drier P/N 25-195)

2шт.

1-8563

CLAMP BRACKET

Bracket (used w/01-7778 Drier)

2шт.

21

25-1002

SWITCH

(Low Pressure)

1шт.

22

19-567

NUT,#10-24

2шт.

Выбрано товаров: 25
