(07-02) - FUEL LINES AND FITTINGS, CAT ENGINE

Запчасти Case IH ST450 (07-02) - FUEL LINES AND FITTINGS, CAT ENGINE (02) - FUEL SYSTEM

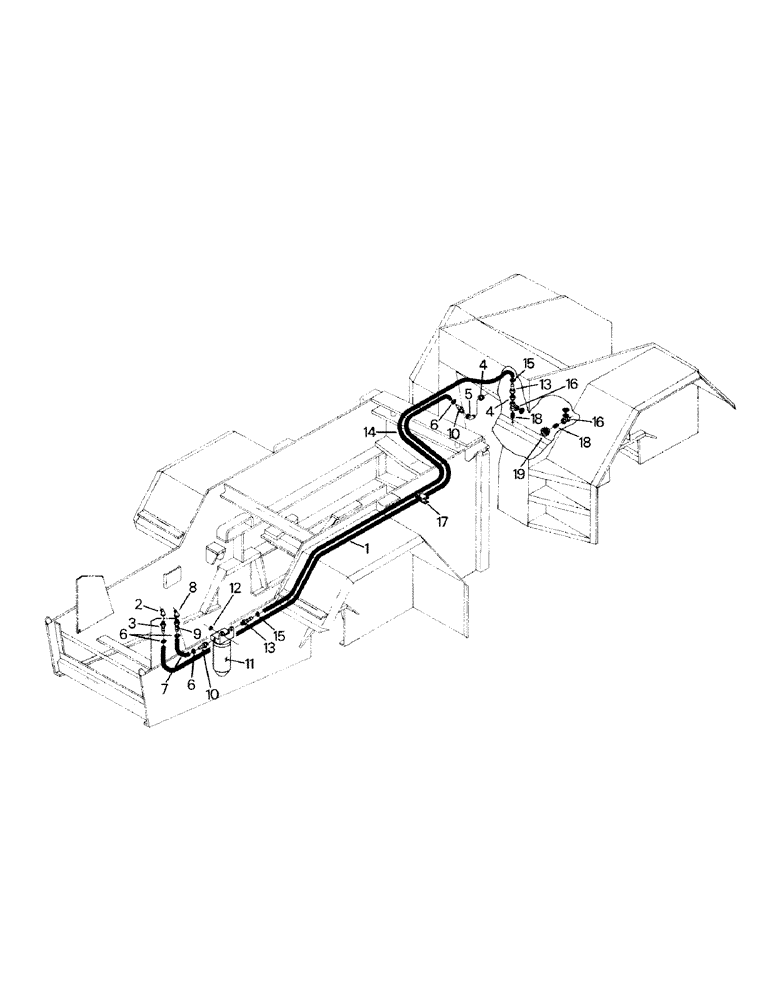

Схема запчастей Case IH ST450 - (07-02) - FUEL LINES AND FITTINGS, CAT ENGINE (02) - FUEL SYSTEM
5
6
19
16
9
14
4
10
13
2
12
4
8
13
15
15
18
1
16
3
18
7
6
11
17
10
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31-1332

Hose

1шт.

2

31-207

ELBOW

Street Elbow

1шт.

3

31-164

CONNECTOR, ELEC

Barbed Fitting

1шт.

4

31-73

BUSHING

Reducer

2шт.

5

31-76

Street Elbow

1шт.

6

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

Clamp

4шт.

7

31-1333

HOSE

1шт.

8

31-242

Street Elbow

1шт.

9

31-137

FITTING

Barbed Fitting

1шт.

10

31-218

CONNECTING ROD

Barbed Fitting

2шт.

11

6-1601

FILTER

Primary Fuel Filter

1шт.

1-2336

ELEMENT

Filter

1шт.

12

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC

2шт.

13

31-636

ADAPTER

Barbed Fitting

2шт.

14

31-1327

Hose

1шт.

15

32-30

HOSE CLAMP,#8, 0.50/0.91 Type M Worm

Clamp

2шт.

16

31-1210

VALVE

2шт.

17

31-1212

CLAMP

Assembly

2шт.

18

31-172

NIPPLE, LUBE

Nipple

2шт.

19

192738

Reducer

1шт.
