(07-01) - FUEL LINES AND FITTINGS, CUMMINS ENGINE

Запчасти Case IH ST450 (07-01) - FUEL LINES AND FITTINGS, CUMMINS ENGINE (02) - FUEL SYSTEM

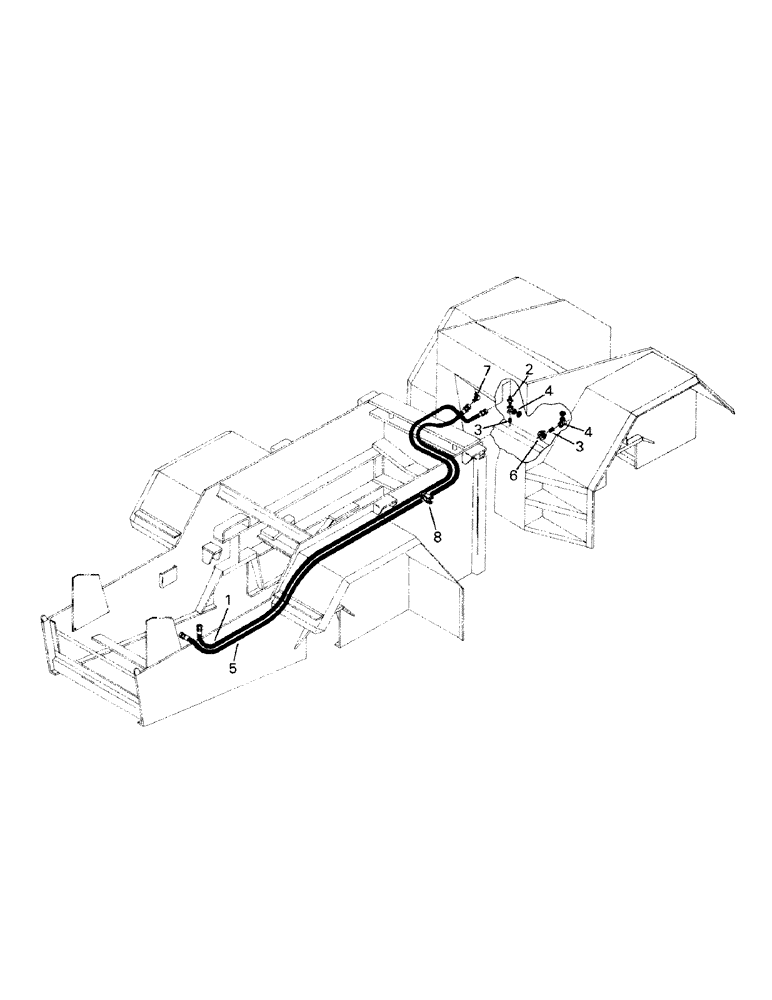

Схема запчастей Case IH ST450 - (07-01) - FUEL LINES AND FITTINGS, CUMMINS ENGINE (02) - FUEL SYSTEM
4
3
1
4
3
6
7
2
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31-1209

HOSE

Assembly

1шт.

2

31-441

Connector

1шт.

3

31-172

NIPPLE, LUBE

Nipple

2шт.

4

31-1210

VALVE

2шт.

5

31-1211

HOSE

Assembly

1шт.

6

192738

Reducer

1шт.

7

31-325

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

1шт.

8

31-1212

CLAMP

Assembly

2шт.
