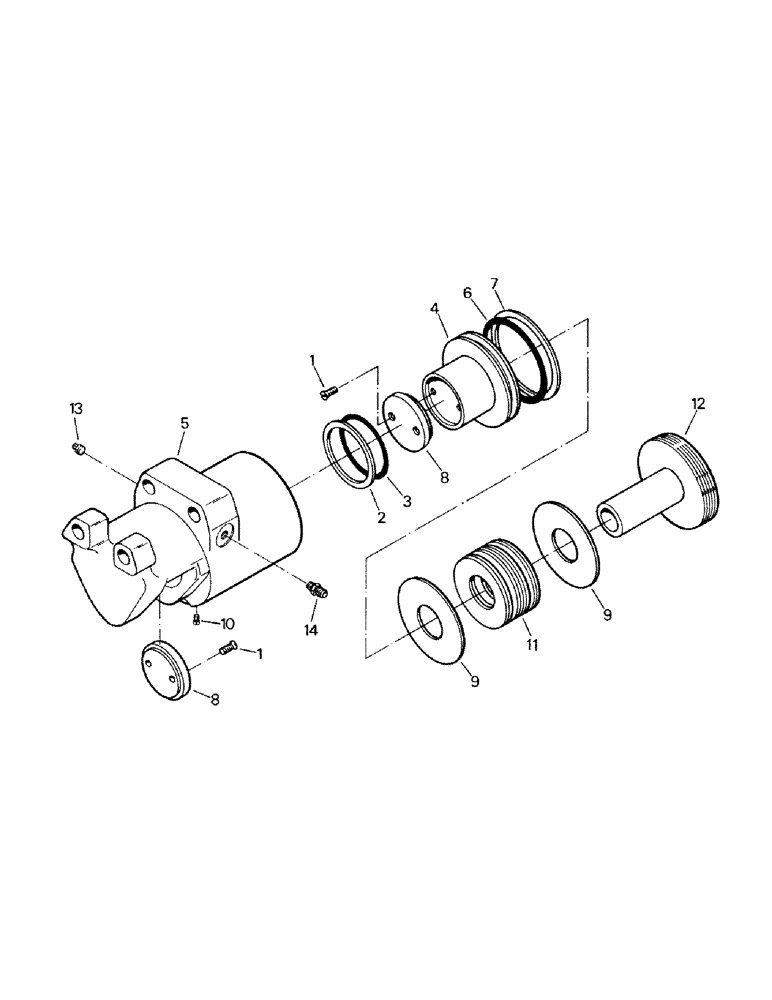

Запчасти Case IH ST450 (05-07) - PARK BRAKE, HYDRAULIC POWER ACTUATED (5.1) - BRAKES

47-3097

Park Brake Assy, consists of Ref. 1-13

1шт.

35-1126

LINING

Seal Kit (incl Refs. 1- 13)

1шт.

1

NSS

NOT SOLD SEPARAT

Screw

4шт.

2

NSS

NOT SOLD SEPARAT

Back-Up Ring

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

47-4750

Piston

1шт.

5

NSS

NOT SOLD SEPARAT

Housing

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

Back-up Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Brake Pad

2шт.

9

47-4754

Washer

2шт.

10

47-4755

Screw

1шт.

11

47-4756

Spring

1шт.

12

47-4759

Spring Retaining Cap

1шт.

13

31-38

PLUG

Pipe Plug

1шт.

14

31-1028

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

Fitting

1шт.
