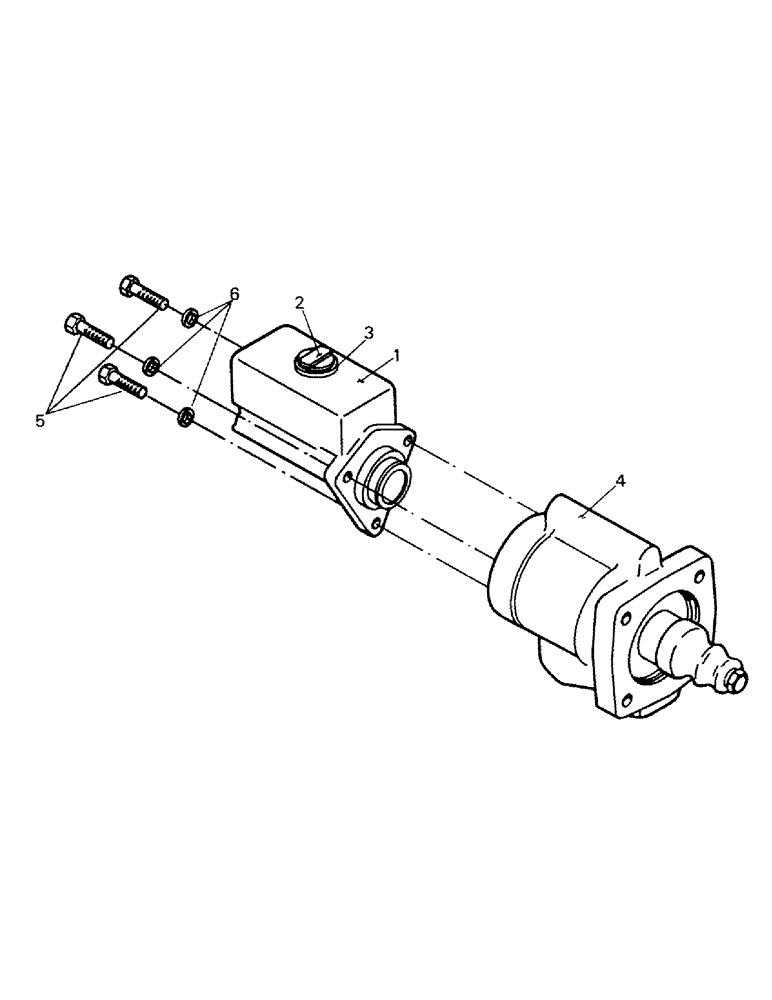

Запчасти Case IH ST450 (05-04) - BRAKE MASTER CYLINDER ASSEMBLY (5.1) - BRAKES

47-4182

VALVE, BRAKE

Master Cylinder Assy (vendor no. 02-461-200 or 02-461-230), consists of Ref. 1-6

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

BSN 129-00002 and 130-00082 (approx.)

1шт.

2-1207

VALVE, BRAKE

Master Cylinder Assy (vendor no. 02-461-216), consists of Ref. 1-6 129-00002, 130-00082 to 129-00011, 130-00210

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

90-2252T91

VALVE, BRAKE

Master Cylinder Assy (vendor no. 02-460-282) 129-00011, Start Serial: 130-00210

1шт.

Superseded-Old P/N MUSTbe used on models prior to S/N break only.

1шт.

When ordering parts for these master cylinders, please check the vendor P/N stamped on the SN plate of the master cylinder. The first S/N is only approximate and it is also possible that the 02-1207 assy could appear on earlier tractors as a service replacement as it is interchangeable. To determine serial number breaks for Refs. 1, 4, & the seal kits, match them to the correct master cylinder assy.

1шт.

1

2-1271

CYLINDER

Assy (incl Refs. 2 & 3) (used w/Master Cylinder 47-4182 & 02-1207)

1шт.

2-4004T1

CYLINDER

Assy (incl. Ref. 2 & 3) (used w/Master Cylinder 90-2252T91)

1шт.

35-1143

KIT

Seal Kit (for Cylinder Assy 02-1271)

1шт.

2-3824T1

VALVE

Seal Kit (for Cylinder Assy 02-4004T1)

1шт.

2

1-1210

STRAP

Cap

1шт.

3

2-1206

GASKET

1шт.

4

2-1272

POWER UNIT

Power Assist Assy (used w/Master Cylinder 47-4182)

1шт.

2-1273

POWER UNIT

Power Assist Assy (used w/Master Cylinder 02-1207)

1шт.

2-4003T1

UNIT

Power Assist Assy (used w/Master Cylinder 90-2252T91)

1шт.

35-1144

VALVE

Seal Kit (for Power Assist 02-1272)

1шт.

2-1211

PACKAGE, REPAIR

Seal Kit (for Power Assist 02-1273)

1шт.

2-3823T1

SEAL KIT

Kit (for Power Assist 02-4003T1)

1шт.

5

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

Capscrew

3шт.

6

19-117

LOCK WASHER,3/8"

3/8"

3шт.
