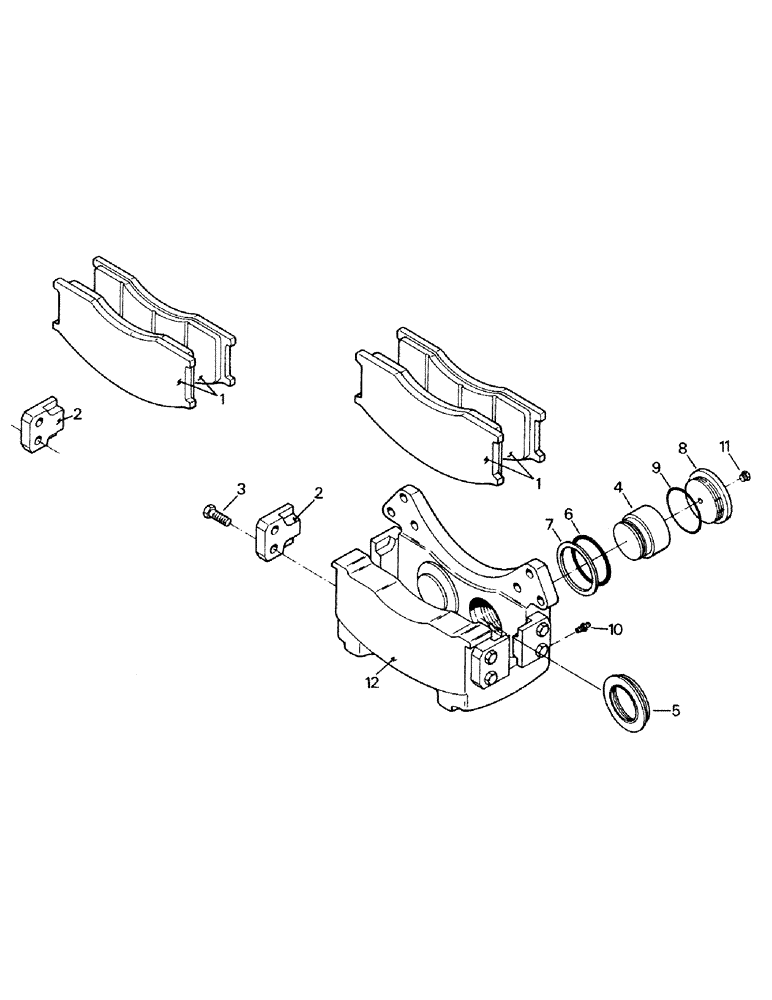

Запчасти Case IH ST450 (05-02) - SERVICE BRAKE, BSN 129-00010 AND 130-00191 (5.1) - BRAKES

47-3009

NO LONGER SERVICED

Service Brake Assy (see Note ), consists of Ref. 1-12

1шт.

Superseded, Old P/N is not used any longer; the new P/N is to be used in ALL Cases. Old P/N should be removed from existing inventory. It is recommended that the old part not bu used under any circumstances.

1шт.

47-4746

SEAL KIT

Kit (incl Refs. 1-12

1шт.

1

90-1306T1

NO LONGER SERVICED

Pad (Early Style) (see Note )

2шт.

47-4734T1

PAD

(Later Style)

1шт.

2

90-1307T1

PLATE

Pad Retainer Plate (Early Style)

4шт.

47-4731

LARGE PLATE

Pad Retainer Plate (Later Style)

1шт.

3

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

Capscrew

8шт.

4

47-4736

PISTON

4шт.

5

NSS

NOT SOLD SEPARAT

Piston Dust Boot

4шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

7

NSS

NOT SOLD SEPARAT

Back-Up Ring

4шт.

8

47-4740

CYLINDER

Head

2шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

10

47-4742

SCREW

Bleeder

2шт.

11

47-4744

Plug

1шт.

12

NSS

NOT SOLD SEPARAT

Housing

1шт.
