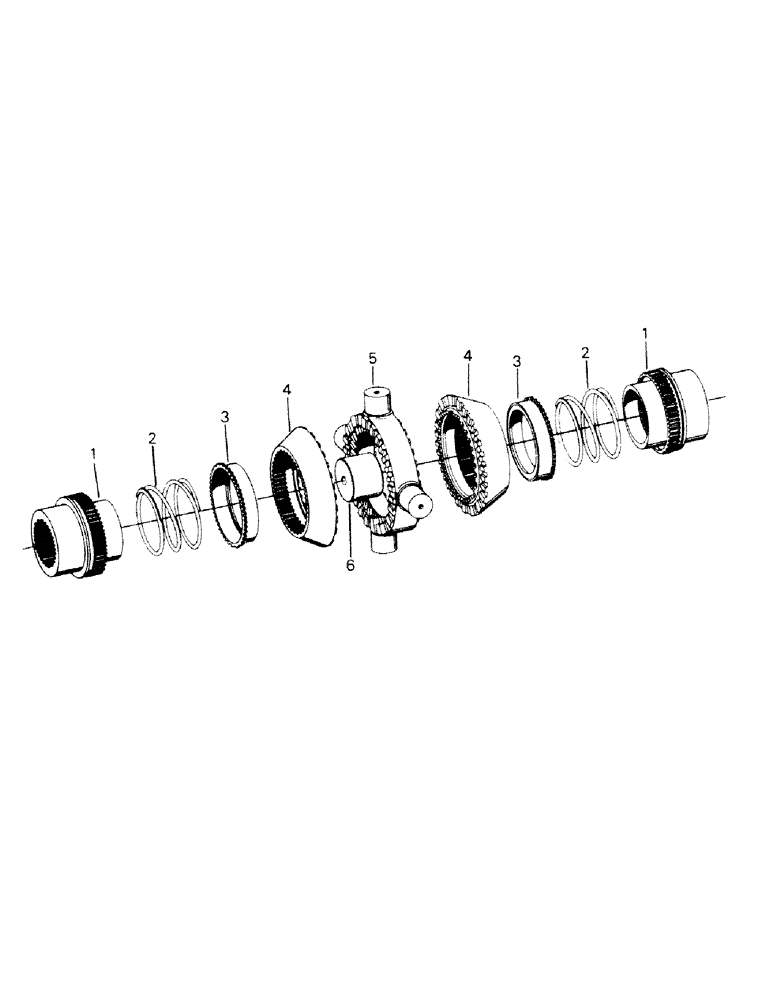

Запчасти Case IH ST450 (10-03) - NO SPIN ASSEMBLY, K-594.15/30 AXLES Options & Miscellaneous

1-8652

Axle Assy, Front (594.15)

1шт.

90-2753T91

AXLE

Assy, Front (594.30)

1шт.

NAP

Axle Assy, Rear

1шт.

There is no rear axle available w/No-Spin. Field installation in a rear axle is not recommended. If it should be necessary to install one in the rear, factory approval and recommendations should be sought first.

1шт.

16-873

DIFFERENTIAL

No-Spin Assy, consists of Refs. 1-6

1шт.

1

16-1461

GEAR

Side Gear

2шт.

2

16-996

Spring

2шт.

3

16-993

COLLAR

Retainer

2шт.

4

16-1460

Clutch

2шт.

5

16-998

DIFF. SPIDER

Spider Cam

1шт.

6

16-1187

SPACER

Slug

1шт.
