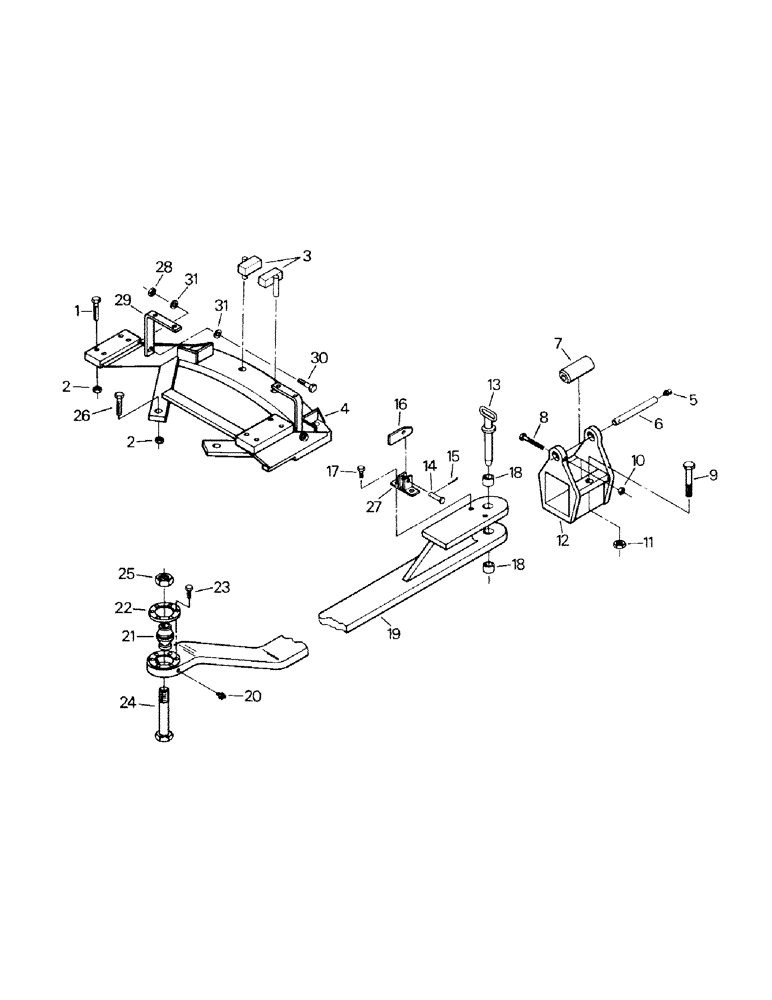

Запчасти Case IH ST450 (06-06) - DRAWBAR AND MOUNTING (12) - FRAME

1

223478

CAPSCREW,Hex, 7/8" - 9 x 4 1/2", Gr 8

8шт.

2

19-457

NUT,7/8"-9, G5

10шт.

3

47-4310

STOP

Drawbar Stop

2шт.

4

47-4296T1

Drawbar Hanger (early style, identify by welded-on Ref. 29)

1шт.

Superseded, Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

70-1348T1

HANGER

Drawbar Hanger (later style, identify by bolt-on Ref. 29)

1шт.

Superseded, Old P/N MUST be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

5

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

6

47-4307

PIN

1шт.

7

47-4306

ROLLER

1шт.

8

19-744

Capscrew Hex, 1/2"-13 x 4 3/4", G5

1шт.

9

19-5480

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8

Capscrew

2шт.

10

19-81

NUT,1/2"-13, G5

1шт.

11

19-459

NUT,1 1/4"-7, G5

2шт.

12

47-4301T1

YOKE

Drawbar Roller Yoke

1шт.

13

1-4896

PIN

1шт.

14

42-102

CLEVIS PIN,1/2" x 2.060"

1шт.

15

19-168

COTTER PIN,1/8" x 1"

1шт.

16

1-4906

LATCH

1шт.

17

19-59

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

Capscrew

2шт.

1-8623

DRAWBAR

Assy, consists of Ref. 18-23

1шт.

18

1-4067

BUSHING

(2.25" O.D. Solid Type)

1шт.

1-7575

BUSHING

(2.34" O.D. Split Type)

1шт.

19

47-4290

DRAWBAR

1шт.

20

31-93

FITTING

Grease Fitting

1шт.

21

15-45

SPHERICAL BEARING,1.755" ID x 3.5617" OD x 4"

Uniball

1шт.

22

2-10

RETAINER

Retaining Ring

1шт.

23

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew

6шт.

24

52-70

PIN

King Pin

1шт.

25

2-17

NUT

King Pin Nut

1шт.

26

19-420

BOLT,7/8" - 9 x 3", Gr 8

Capscrew

2шт.

27

1-4908

LATCH

Pivot

1шт.

28

19-85

LOCK NUT

Lock Nut

2шт.

29

53-111

MOUNTING PARTS

Coupler Mount (is welded to Ref. 4 on early tractors)

2шт.

30

19-216

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Capscrew

2шт.

31

19-112

WASHER,3/4"

4шт.
