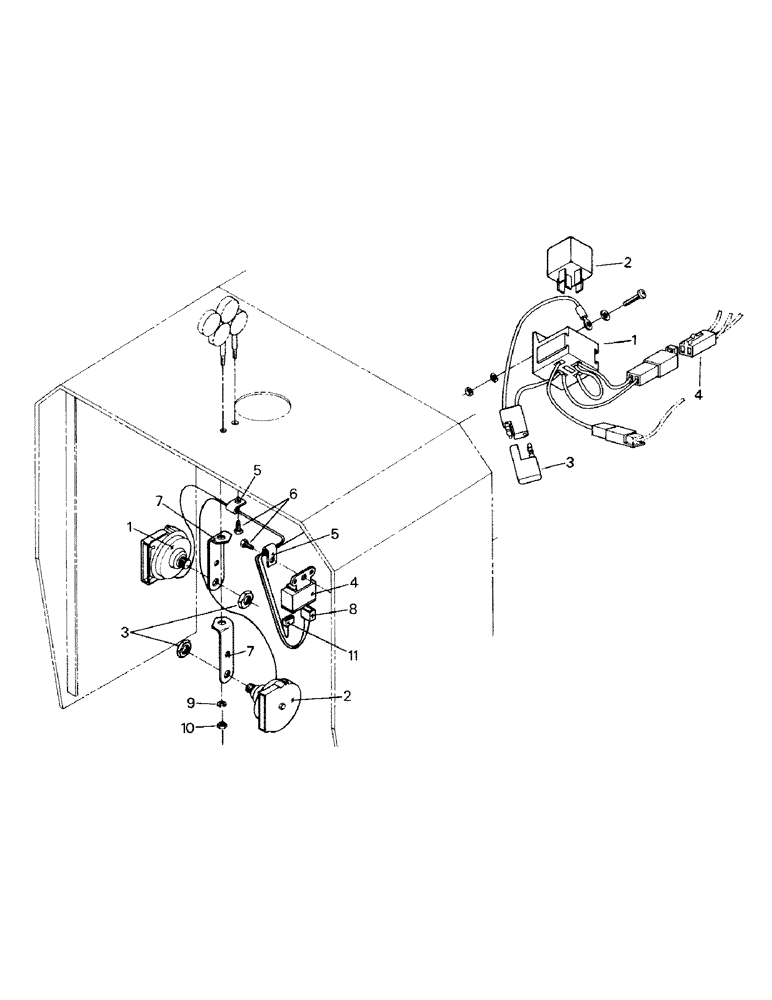

Запчасти Case IH ST450 (10-02) - HORN ASSEMBLY AND MOUNTING Options & Miscellaneous

1

29-1003

HORN

1шт.

2

29-1002

HORN

1шт.

3

19-1002

SPECIAL NUT

2шт.

4

29-1001

RELAY

(Service w/35-1517T91)

1шт.

5

22-635

MOUNTING CLIP

Clamp

5шт.

6

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

Tapping Screw

2шт.

7

29-1004

BRACKET

Horn Mounting Bracket

2шт.

8

2-6566T2

HARNESS

Wire Harness (02-6566T1)

1шт.

Superseded, Old P/N is not used any longer; the new P/N is to be used in ALL Cases. Old P/N should be removed from existing inventory. It is recommended that the old part not bu used under any circumstances.

1шт.

9

19-467

LOCK WASHER,Ext Tooth, 1/4"

2шт.

10

280129

NUT,1/4"-20

2шт.

11

47-4713

Wire (part of frame harness on later tractors)

1шт.

35-1517T91

KIT

Relay Kit

1шт.

Can be used to adapt a more reliable relay into this system

1шт.

1

20-1948T1

Relay Harness

1шт.

2

20-2133T1

RELAY

1шт.

3

22-738

DIODE

1шт.

4

2977373

CONNECTOR, ELEC

Connector Body

1шт.
