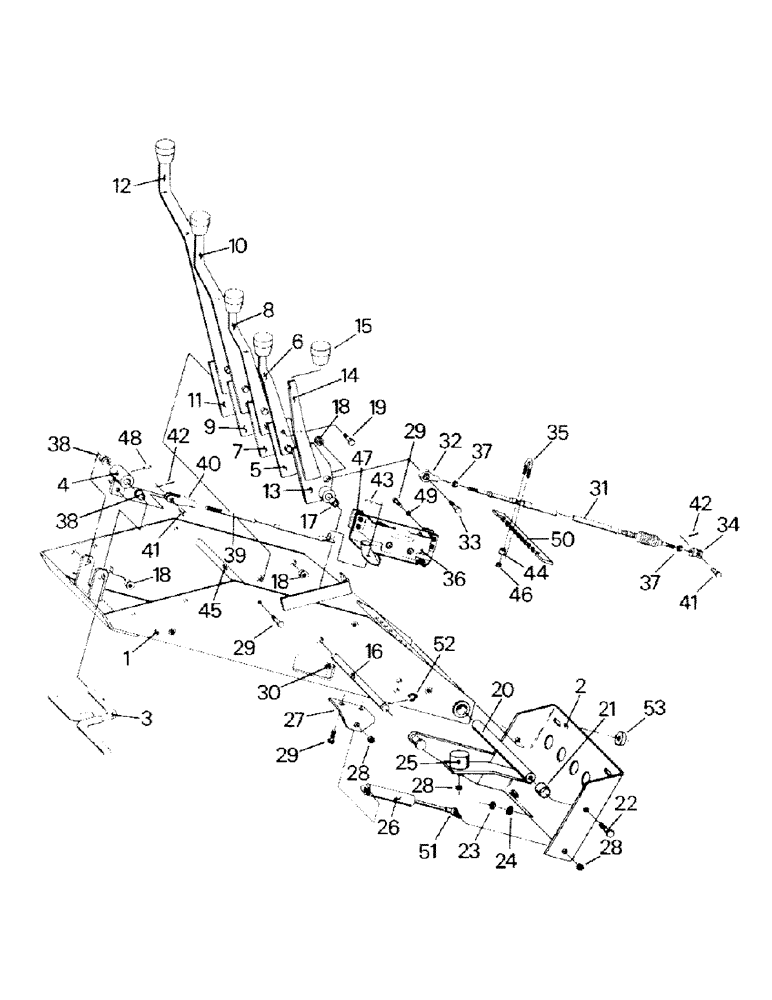

Запчасти Case IH ST450 (01-36) - TILT CONSOLE ASSEMBLY (10) - CAB

1

1-4015

FUNNEL

Console Frame (shown above) (used with Manual Shift Lever)

1шт.

1-9989

Console Frame (used with Electric Shift Lever)

1шт.

2

1-3951

PIVOT

1шт.

3

1-9990T1

LEVER

Release Lever (replaces P/N 01-5964 - Code E)

1шт.

Superseded, Old P/N is not used any longer: the new P/N is to be used in ALL CASES. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstance Superseded, Old P/N is not used any longer: the new P/N is to be used in ALL CASES. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstance

1шт.

4

1-3910

HUB

Release Hub

1шт.

5

60-1551T1

HUB

(replaces P/N 01-3749 - Code E)

1шт.

Superseded, Old P/N is not used any longer: the new P/N is to be used in ALL CASES. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstance Superseded, Old P/N is not used any longer: the new P/N is to be used in ALL CASES. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstance

1шт.

6

1-3480

LEVER

Hydraulic Control Lever

1шт.

7

60-1572T1

HUB

(replaces P/N 01-3750 - Code E)

1шт.

Superseded, Old P/N is not used any longer: the new P/N is to be used in ALL CASES. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstance Superseded, Old P/N is not used any longer: the new P/N is to be used in ALL CASES. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstance

1шт.

8

1-3481

LEVER

Hydraulic Control Lever

1шт.

9

60-1570T1

HUB

(replaces P/N 01-3748 - Code E)

1шт.

Superseded, Old P/N is not used any longer: the new P/N is to be used in ALL CASES. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstance Superseded, Old P/N is not used any longer: the new P/N is to be used in ALL CASES. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstance

1шт.

10

1-3482

LEVER

Hydraulic Control Lever

1шт.

11

60-1568T1

HUB

(replaces P/N 01-3751 - Code E)

1шт.

Superseded, Old P/N is not used any longer: the new P/N is to be used in ALL CASES. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstance Superseded, Old P/N is not used any longer: the new P/N is to be used in ALL CASES. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstance

1шт.

12

1-3483

LEVER

Hydraulic Control Lever

1шт.

13

60-1566T1

HUB

(01-4699) (E)

1шт.

Used w/ 5 spool valve

1шт.

1-3681T1

SPACER

1шт.

used w/ 4 spool valve

1шт.

14

1-4664

LEVER

Hydraulic Control Lever

1шт.

Used w/ 5 spool valve

1шт.

15

18-646

KNOB

5шт.

16

1-4665

SHAFT

Pivot

1шт.

17

1-1498

BUSHING

Bearing

10шт.

18

19-336

NUT

sert, 5/16 UNC (qty. 22 with Early Style Hubs)

7шт.

19

19-876

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Capscrew, 5/16 x 1/2 UNC

10шт.

20

1-3490

SHAFT

Pivot

1шт.

21

24-209

BUSHING,0.75" ID x 0.875" OD x 0.375"

Bearing

2шт.

22

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew, 3/8 x 1 UNC

2шт.

23

19-341

LOCK NUT,3/8" - 16, GB

3/8 UNC

4шт.

24

19-107

WASHER

3/8

4шт.

25

4-1019

STOP

1шт.

26

1-3333

GAS STRUT

Gas Spring

1шт.

27

1-3492

BRACKET

1шт.

28

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

3шт.

29

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Capscrew, 1/4 x 3/4 UNC

8шт.

30

280129

NUT,1/4"-20

1/4 UNC

2шт.

31

47-3739

CABLE

5шт.

THE CABLE IS 170"

1шт.

32

1-332

Rod End, Female

5шт.

33

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

Capscrew, 5/16 x 3/4 UNC

5шт.

34

1-3531

FORK

Yoke

5шт.

35

19-5402

BOLT

U-Bolt (short)

8шт.

19-5374

U-BOLT,5/16" - 24 x 1.68"

(long)

2шт.

36

1-3181

LATCH

Assembly

1шт.

37

19-236

JAM NUT,5/16" - 24, Gr 5

5/16 UNF

10шт.

38

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

Bearing

2шт.

39

1-3505

Release Rod (shown above) (used with Manual Shift Lever)

1шт.

1-9986

ROD

Release Rod (used with Electric Shift Lever)

1шт.

40

19-141

CLEVIS

1шт.

41

19-144

CLEVIS PIN,1/4" x 0.77"

6шт.

42

19-170

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

6шт.

43

19-5380

PIN

Hair Pin

1шт.

44

19-5373

SPACER

4шт.

45

1-3753

SHAFT

Pivot

1шт.

46

19-509

LOCK NUT,5/16"-24, GB

5/16 UNF

20шт.

47

1-5963

SHIM

2шт.

48

19-5361

LOCK PIN,1/8" x 1 1/4", Slotted

Pin, 1/8" x 1 1/4", Slotted

1шт.

49

19-223

WASHER,1/4"

1/4

4шт.

50

1-5720

SHIM

Cable (on Console Frame)

1шт.

1-5719

SHIM

Cable (on Valve Mount)

1шт.

51

1-4714

STUD

Ball Stud

2шт.

1-4713

CLIP

2шт.

52

1-1807

RING, SNAP

Snap Ring

2шт.

53

1-4124

SPACER

4шт.
