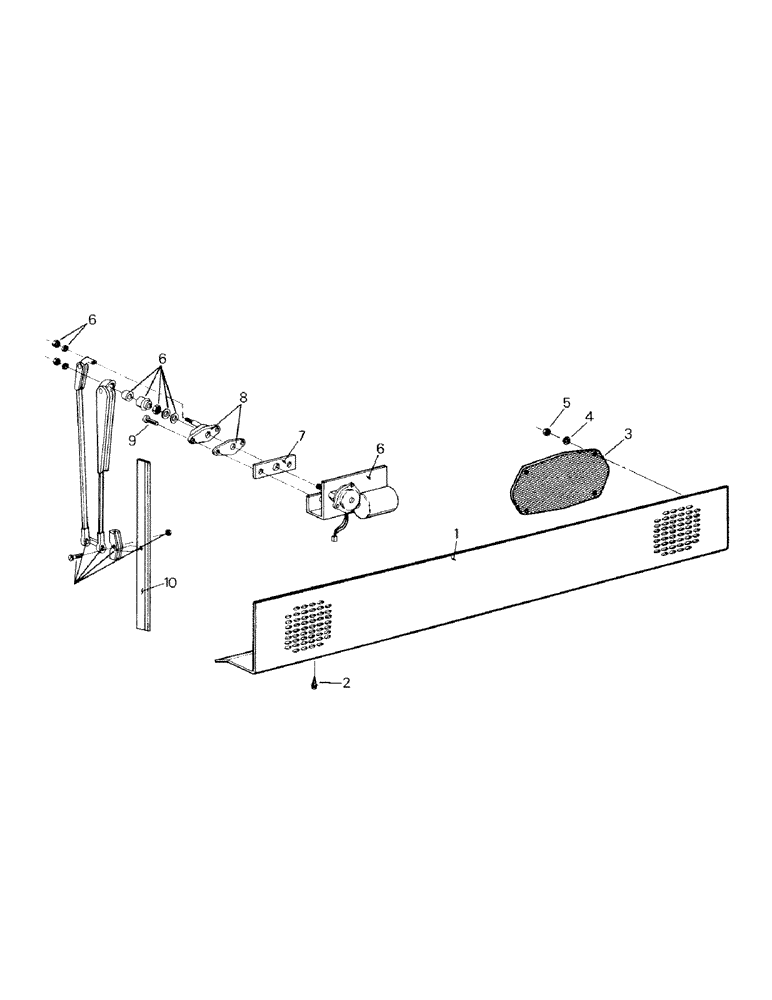

Запчасти Case IH ST450 (01-33) - REAR CONSOLE, LATER STYLE, ASN ST 450 129-00014 AND ST 470 130-00233 (10) - CAB

1

60-1836T1

PANEL

Console

1шт.

2

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Tapping Screw

4шт.

3

60-2077T1

SPEAKER

2шт.

4

19-699

WASHER,3/16"

8шт.

5

19-5563

LOCK NUT

Lock Nut

8шт.

6

20-1212T91

MOTOR

Wiper Drive (Rear) (see Fig. 1-34)

1шт.

7

54-310

SPACER

1шт.

8

54-311

PIVOT ASSY.

Pantograph Kit

1шт.

9

19-939

BOLT,Hex, 1/4" - 28 x 1 1/4", Gr 5

Capscrew

2шт.

10

54-312

HALF BLADE

Wiper Blade

1шт.

11

54-313

ARM

Wiper Arm

1шт.
