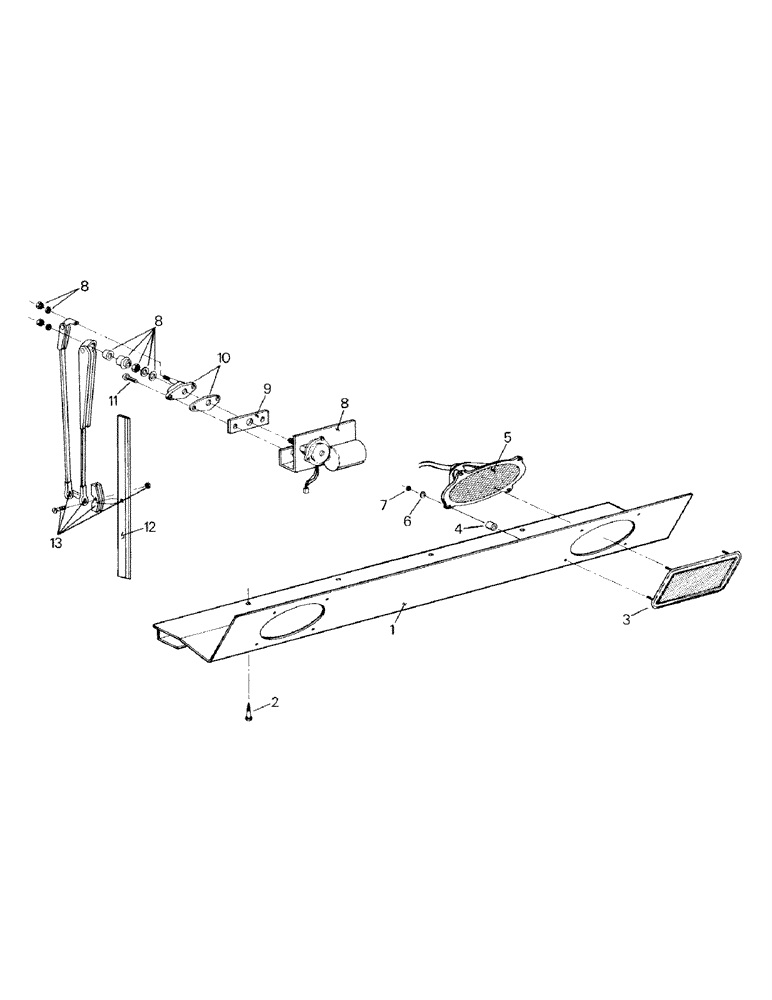

Запчасти Case IH ST450 (01-32) - REAR CONSOLE, EARLY STYLE, BSN ST 450 129-00014 AND ST 470 130-00233 (10) - CAB

1

1-5359

Console

1шт.

2

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Tapping Screw

4шт.

3

1-4361

Speaker Grille

2шт.

4

1-3698

Spacer

8шт.

5

1-4360

Speaker

2шт.

6

19-699

WASHER,3/16"

8шт.

7

19-567

NUT,#10-24

8шт.

8

35-1284T91

KIT

Wiper Drive Kit (Rear) (see Fig. 1-34)

1шт.

9

54-310

SPACER

1шт.

10

54-311

PIVOT ASSY.

Pantograph Kit

1шт.

11

19-939

BOLT,Hex, 1/4" - 28 x 1 1/4", Gr 5

Capscrew

2шт.

19-1048

Capscrew (w/Windshield Washer) Hex, 1/4"-28 x 1 1/2", G5

1шт.

12

54-312

HALF BLADE

Wiper Blade

1шт.

13

54-313

ARM

Wiper Arm

1шт.
