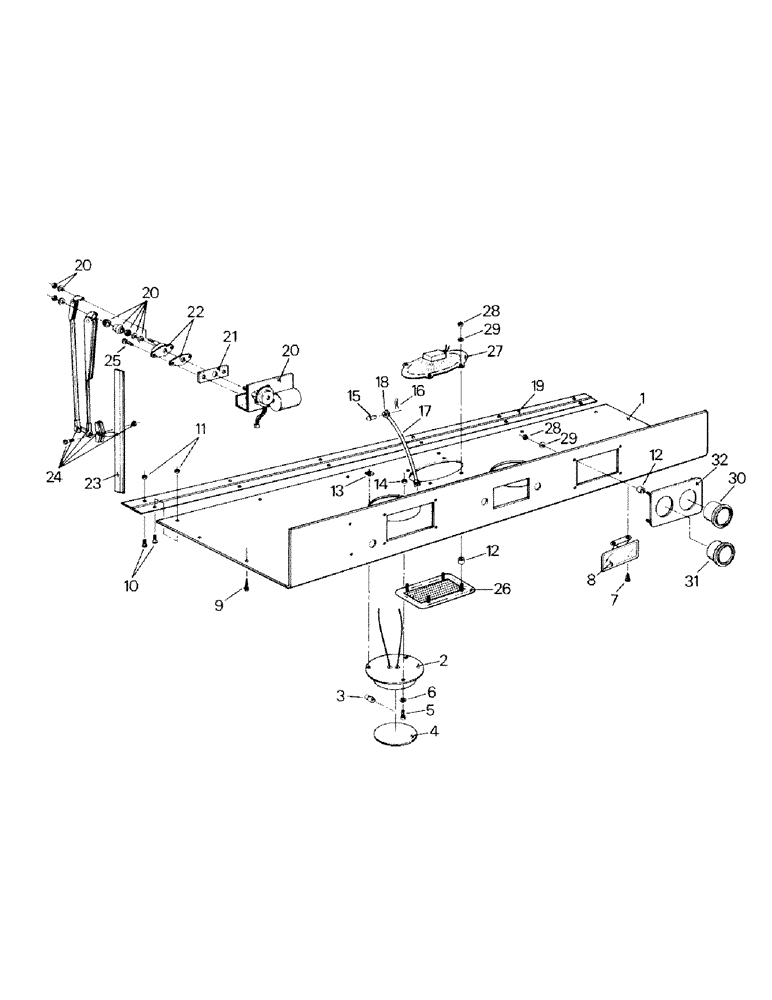

Запчасти Case IH ST450 (01-25) - FRONT CONSOLE, EARLY STYLE, BSN ST 450 129-00014 AND ST 470 130-00233 (10) - CAB

1

1-5329

Console (23 Channel C.B.)

1шт.

1-6845

Console (Early Style 40 Channel C.B.)

1шт.

2-2945

Console (Later Style 40 Channel C.B.)

1шт.

64-346

NO LONGER SERVICED

Dome Light Assy, consists of Ref. 2-5

1шт.

GOING FROM LEFT TO RIGHT THE FIRST OPENING IS CB AND RADIO.NO COVERS FOR THE OPENINGS.

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

2шт.

3

22-1146

BULB

2шт.

4

22-1145

LENS

Dome Light

2шт.

5

19-1000

SCREW,Rnd Hd, #8 - 32 x 3/4"

Machine Screw

6шт.

6

19-602

LOCK WASHER,Ext, #8

Washer

6шт.

7

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Tapping Screw

2шт.

8

24-62

MIRROR

1шт.

9

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Tapping Screw

4шт.

10

463-41012

SCREW,Slot Hex Wash Hd, #10-24 x 3/4"

Machine Screw

12шт.

11

19-481

SERRATED NUT

Kep Nut

12шт.

12

1-3698

Spacer

8шт.

13

19-1001

NUT

Clip Nut

6шт.

14

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

6шт.

15

19-143

CLEVIS PIN,5/16" x 0.94"

2шт.

16

19-5380

PIN

Hair Pin

2шт.

17

1-4656

CABLE

Lanyard Cable

1шт.

18

1-4657

CLEVIS

2шт.

19

1-4291

Hinge

1шт.

20

35-1285T91

KIT

Wiper Drive Kit (Front) (see Fig. 1-34)

1шт.

21

54-310

SPACER

1шт.

22

54-311

PIVOT ASSY.

Pantograph Kit

1шт.

23

54-312

HALF BLADE

Wiper Blade

1шт.

24

54-313

ARM

Wiper Arm

1шт.

25

19-939

BOLT,Hex, 1/4" - 28 x 1 1/4", Gr 5

Capscrew

2шт.

26

1-4361

Speaker Grille

1шт.

27

1-4360

Speaker

1шт.

28

19-567

NUT,#10-24

8шт.

29

19-699

WASHER,3/16"

8шт.

30

22-735

HOURMETER

1шт.

31

1-5955

TIME-WATCH

Clock

1шт.

32

1-4326

PLATE

Trim Plate

1шт.

1-4327

Decal, Clock

1шт.
