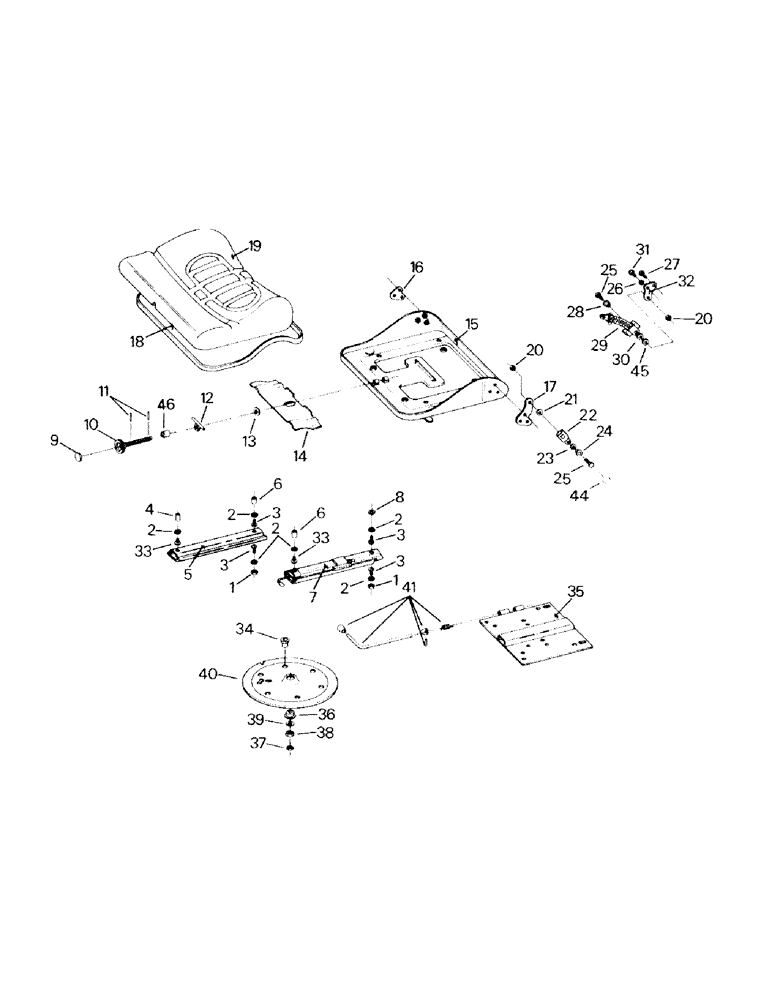

Запчасти Case IH ST450 (01-19) - SEAT ASSEMBLY, SEAT CUSHION AND SLIDE ASSEMBLY (10) - CAB

1

60-1677T1

NUT

4шт.

2

40-1154

LOCK WASHER

Lock Washer

8шт.

3

40-1164

BOLT,Sl Cheese Hd, M8 x 1.25 x 16mm

Machine Screw

6шт.

4

60-1680T1

Tubing

1шт.

5

60-1577T1

RAIL ASSY.

Rail, Seat Slide

1шт.

6

60-1678T1

TUBE

Tubing

2шт.

7

60-1576T1

RAIL

Adjustable Slide

1шт.

8

60-1679T1

WASHER

1шт.

9

60-1688T1

Cap, Knob, Serial Range: -129-01504

1шт.

60-3186T1

CAP

Knob, Start Serial: 130-01563

1шт.

This item to be used ASNB, can, in most cases, be used to service early seats BSNB, but all parts in that area or connected to that part must also be ordered to assure proper fit.

1шт.

10

60-1692T1

KNOB

Assy

1шт.

11

40-1160

PIN

, Serial Range: -129-01504

2шт.

40-1175

PIN

, Start Serial: 130-01563

2шт.

This item to be used ASNB, can, in most cases, be used to service early seats BSNB, but all parts in that area or connected to that part must also be ordered to assure proper fit.

1шт.

12

60-1687T1

NUT

1шт.

13

40-1153

WASHER

1шт.

14

60-1694T1

PLATE

Support

1шт.

15

60-1701T1

PAN

Seat Pan, Serial Range: -129-01504

1шт.

60-3187T1

PAN

Seat Pan, Start Serial: 130-01563

1шт.

This item to be used ASNB, can, in most cases, be used to service early seats BSNB, but all parts in that area or connected to that part must also be ordered to assure proper fit.

1шт.

16

60-1638T1

LARGE PLATE

Spacer

1шт.

17

60-1668T1

BRACKET

Seat Belt

1шт.

18

60-1640T1

SUPPORT

Extrusion, Plastic

1шт.

19

60-1644T1

CUSHION

Seat

1шт.

20

60-1661T1

NUT

2шт.

21

60-1667T1

WASHER

1шт.

22

60-1658T1

BUCKLE

Seat Belt

1шт.

23

60-1662T1

WASHER

Spring Washer

2шт.

24

60-1666T1

BUSHING

1шт.

25

60-1665T1

CAPSCREW,Pan, #10 - 32 x .375"

2шт.

26

19-193

LOCK WASHER,Ext Tooth, 7/16"

7/16

1шт.

27

60-1628T1

BOLT

Locking Head, Serial Range: -129-01504

1шт.

60-3191T1

Bolt, Locking Head, Start Serial: 130-01563

1шт.

This item to be used ASNB, can, in most cases, be used to service early seats BSNB, but all parts in that area or connected to that part must also be ordered to assure proper fit.

1шт.

28

60-1664T1

BUSHING

, Serial Range: -129-01504

1шт.

60-3197T1

BUSHING

, Start Serial: 130-01563

1шт.

This item to be used ASNB, can, in most cases, be used to service early seats BSNB, but all parts in that area or connected to that part must also be ordered to assure proper fit.

1шт.

29

60-1659T1

SAFETY BELT

SAFETY BELT, Strap

1шт.

30

60-1663T1

Plastic Washer, Serial Range: -129-01504

1шт.

40-1159

WASHER

Plastic Washer, Start Serial: 130-01563

1шт.

This item to be used ASNB, can, in most cases, be used to service early seats BSNB, but all parts in that area or connected to that part must also be ordered to assure proper fit.

1шт.

31

60-1611T1

Capscrew

1шт.

32

60-1660T1

Plate, Bearing

1шт.

33

40-1165

BOLT,Sl Cheese Hd, M8 x 1.25 x 25mm

Machine Screw

2шт.

34

60-1619T1

BUSHING

6шт.

35

60-1620T1

Plate Assy (incl Ref. 36)

1шт.

36

60-1621T1

BUSHING

1шт.

37

60-1622T1

LOCK NUT

Lock Nut

1шт.

38

60-1623T1

NUT

1шт.

39

60-1624T1

THRUST BEARING

Thrust

1шт.

40

60-1625T1

LINK

Plate, Swivel

1шт.

41

60-1626T1

LEVER

Assy

1шт.

42

60-1618T91

PIVOT

Swivel Assy (incl Ref. 34-41)

1шт.

43

60-1657T92

SAFETY BELT

(Incl Ref. 17, 20-25, 28-30 & 32) (60-1657T91) (B)

1шт.

Superseded- Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

44

60-1656T1

COVER

Protective

2шт.

45

60-1662T1

WASHER

, Serial Range: -129-01504

1шт.

46

60-3203T1

BUSHING

, Start Serial: 130-01563

1шт.

This item to be used ASNB, can, in most cases, be used to service early seats BSNB, but all parts in that area or connected to that part must also be ordered to assure proper fit.

1шт.
