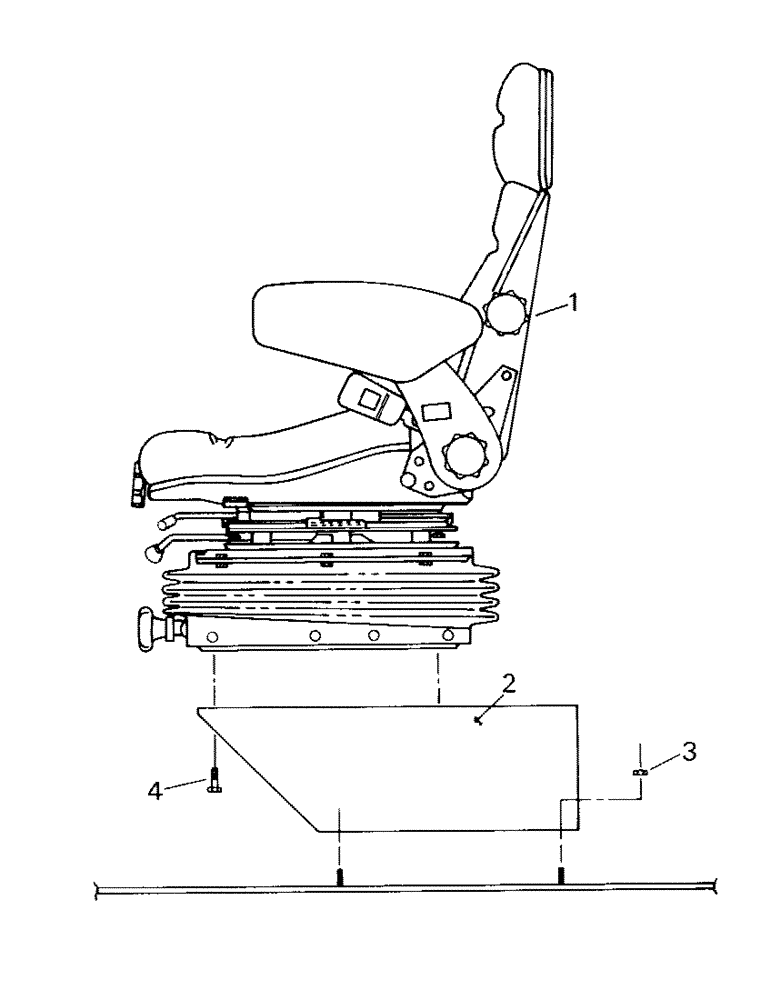

Запчасти Case IH ST450 (01-16) - SEAT AND MOUNTING, GRAMMER, ASN 129-0010 AND 130-00198 (10) - CAB

1

60-1098T91

SEAT

Assy to 129-00010 & 130-0021

1шт.

Superseded, Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

60-1098T92

SEAT

Assy (see following figures for service breakdown) 129-00010 to

1шт.

2

60-1430T1

Seat Mount

1шт.

3

231-2448

LOCK NUT,1/2"-20, GB

4шт.

4

40-1150

CAPSCREW,Hex, M8 x 1.25 x 30mm, Gr 8.8

M8-1.25 x 30 mm

4шт.
